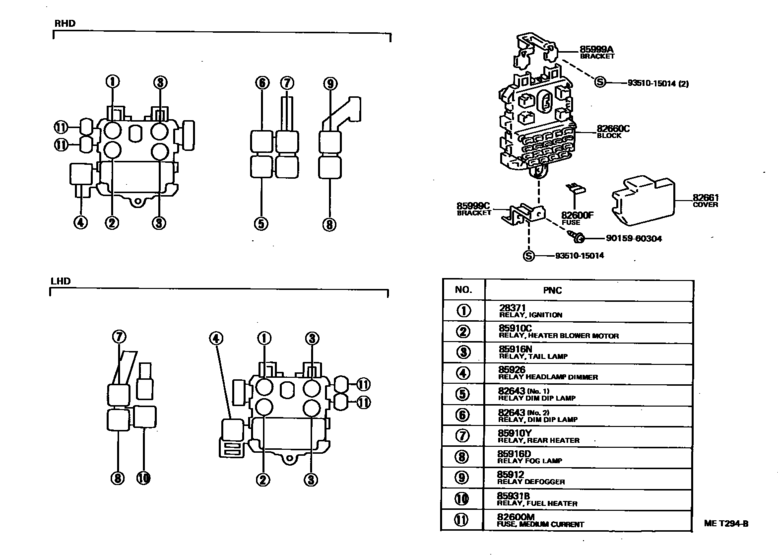

Switch & Relay & Computer ([01.1992 - ] RELAY BLOCK (9201- )) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02004 Relay Assy, Starter[01.1992 - 01.1995] 2C,5K,4YEC..CR2#,KR2#,YR2# |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
28371
|
28371
909870200483 [01.1992 - 01.1995] 2C,5K,4YEC..CR2#,KR2#,YR2# |
909870200483 |
US $53.75 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[09.1993 - 01.1995] CR2#,KR2#,YR2# 10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[09.1993 - 01.1995] CR2#,KR2#,YR2# 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1993 - 01.1995] CR2#,KR2#,YR2# 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1992 - 09.1993] CR2#,KR2#,YR2# 7.5A |
90982-09005 |
from US $0.99 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[10.1993 - 01.1995] CR2#,KR2#,YR2# 30A |
90982-10001 |
from US $3.12 |
||
|
82660C
|
82660C
82660-28150 Block Assy, RelayRELAY [09.1993 - 01.1995] CR2#,KR2#,YR2# |
82660-28150 |
US $445.54 |
||
|
82660C
|
82660C
82660-87002
Block Assy, Relay
[01.1992 - 09.1993] CR2#,KR2#,YR2# |
82660-87002 |
— | ||
|
82661
|
82661
82661-28100 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [09.1993 - 01.1995] CR2#,KR2#,YR2# |
82661-28100 |
US $14.27 |
||
|
82661
|
82661
82661-87002 Cover, Relay Block, No.1[01.1992 - 09.1993] CR2#,KR2#,YR2# |
82661-87002 |
US $7.43 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [01.1992 - 01.1995] CR2#,KR2#,YR2# |
909870200483 |
US $53.75 |
||
|
85910Y
|
85910Y
90987-02010
Relay (For Heater Idle Up)
[01.1992 - 01.1995] CR21,KR21,YR22 |
90987-02010 |
— | ||
| replacement | |||||
|
85910Y
|
85910Y
90987-02009 Relay Assy[01.1992 - 01.1995] CR21,KR21,YR22 |
90987-02009 |
from US $26.15 |
||
|
85912
|
85912
90987-02010
Relay (For Heater Idle Up)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-02010 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02009 Relay Assy[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-02009 |
from US $26.15 |
||
|
85916D
|
85916D
90987-02010
Relay (For Heater Idle Up)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-02010 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90987-02009 Relay Assy[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-02009 |
from US $26.15 |
||
|
85916N
|
85916N
90987-01003 Relay, Fuel Lid Opener[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90987-01003 |
from US $35.65 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[01.1992 - 01.1995] CR2#,KR2#,YR2# |
85926-30020 |
from US $44.58 |
||
|
85931B
|
85931B
90987-02010
Relay (For Heater Idle Up)
[01.1992 - 01.1995] CR21 |
90987-02010 |
— | ||
| replacement | |||||
|
85931B
|
85931B
90987-02009 Relay Assy[01.1992 - 01.1995] CR21 |
90987-02009 |
from US $26.15 |
||
|
85999A
|
85999A
85999-28010 Bracket, Relay, No.3[01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
85999-28010 |
US $34.80 |
||
|
85999C
|
85999C
85999-28021 Bracket, Relay, No.3[01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
85999-28021 |
US $4.37 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
