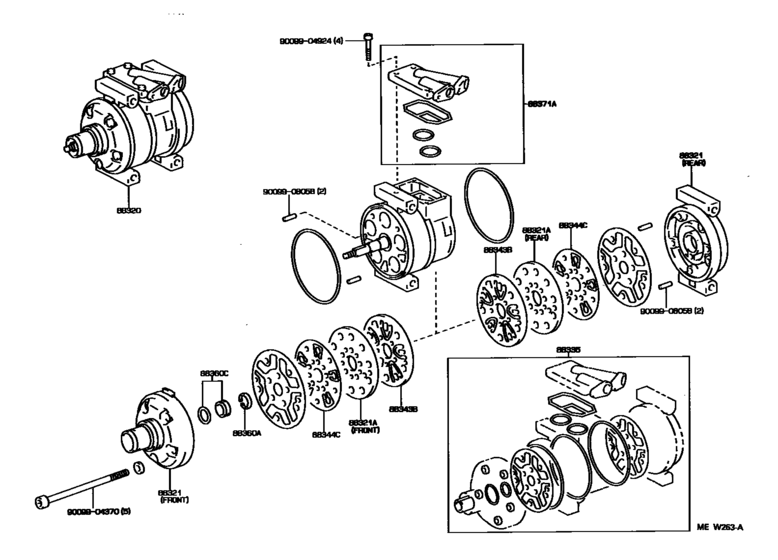

Heating & Air Conditioning - Compressor ([01.1992 - ] (9201- )CR27) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- CR27
- grade
- STD
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-28130
Compressor Assy, Cooler
[01.1992 - 09.1993] CR27 |
88320-28130 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-60H90
Compressor Assy, Cooler
[01.1992 - 09.1993] CR27 |
88320-60H90 |
— | ||
|
88320
|
88320
88320-28240
Compressor Assy, Cooler
[09.1993 - 10.1996] CR27 |
88320-28240 |
— | ||
|
88321
|
88321
88321-2B010
Head, Cooler Compressor Cylinder
[01.1992 - 10.1996] CR27 FR |
88321-2B010 |
— | ||
|
88321
|
88321
88322-32040
Head, Cooler Compressor Cylinder
[01.1992 - 07.2000] CR27,YR2#,39 RR |
88322-32040 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[01.1992 - 07.2000] CR27,YR2#,39 FR |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[01.1992 - 07.2000] CR27,YR2#,39 RR |
88342-22010 |
— | ||
|
88335
|
88335
88335-14010
Gasket Kit, Overhaul
[01.1992 - 09.1993] CR27,YR2#,39 |
88335-14010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[01.1992 - 09.1993] CR27,YR2#,39 |
88335-2B030 |
from US $39.29 |
||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[09.1993 - 07.2000] CR27,YR2#,39 |
88335-2B030 |
from US $39.29 |
||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[01.1992 - 07.2000] CR27,YR2#,39 |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[01.1992 - 07.2000] CR27,YR2#,39 |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[01.1992 - 07.2000] CR27,KR2#,YR2#,39 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[01.1992 - 09.1993] CR27,YR2#,39 |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[01.1992 - 09.1993] CR27,YR2#,39 |
88360-2B020 |
US $68.84 |
||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.1993 - 07.2000] CR27,YR2#,39 |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-28120
Valve, Suction
[01.1992 - 09.1993] CR27 |
88371-28120 |
— | ||
|
88371A
|
88371A
88371-28150
Valve, Suction
[09.1993 - 10.1996] CR27 |
88371-28150 |
— | ||
|
9009904370
|
9009904370
90099-04370
Bolt, Compressor, No.1
|
90099-04370 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
