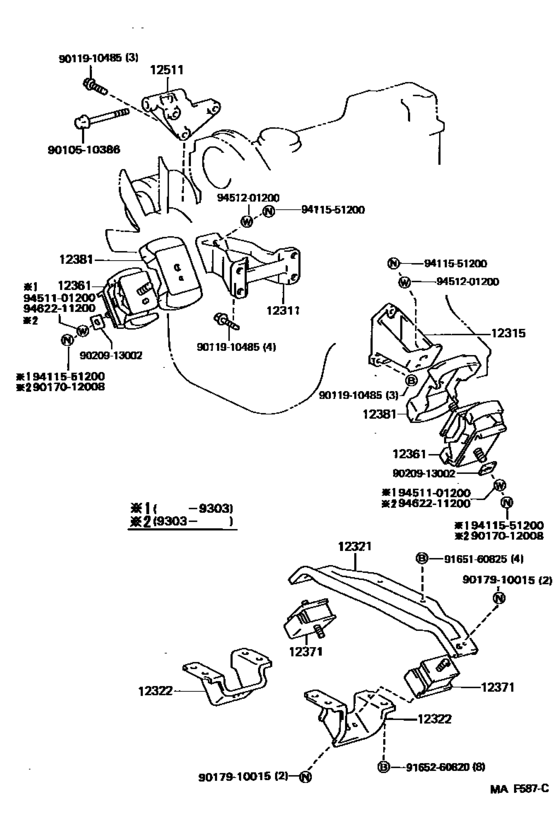

Mounting ([01.1992 - ] (9201- )2C) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- CR27
- grade
- STD
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-64060 Bracket, Engine Mounting, Front No.1 Rh[01.1992 - 10.1996] 2C..CR27 |
12311-64060 |
US $33.63 |
||
|
12315
|
12315
12315-64020 Bracket, Engine Mounting, Front No.1 Lh[01.1992 - 08.1996] 2C..CR27 |
12315-64020 |
US $69.60 |
||
| replacement | |||||
|
12315
|
12315
12315-64120 Bracket, Engine Mounting, Front No.1 Lh[01.1992 - 08.1996] 2C..CR27 |
12315-64120 |
US $66.39 |
||
|
12315
|
12315
12315-64120 Bracket, Engine Mounting, Front No.1 Lh[08.1996 - 10.1996] 2C..CR27 |
12315-64120 |
US $66.39 |
||
|
12321
|
12321
12321-64010 Bracket, Engine Mounting, Rear, No.1[01.1992 - 10.1996] 2C..CR27 |
12321-64010 |
US $80.08 |
||
|
12322
|
12322
12322-13030 Bracket, Engine Mounting, Rear No.2[01.1992 - 07.2000] 2C..CR27 RH; 3Y#,4YEC..YR2#,39..MTM RH; 5K..KR27..RHD RH |
12322-13030 |
US $37.13 |
||
|
12322
|
12322
12326-13010 Bracket, Engine Mounting, Rear No.2[01.1992 - 07.2000] 2C..CR27 LH; 3Y#,4YEC..YR2#,39..MTM LH; 5K..KR27..RHD LH |
12326-13010 |
US $38.15 |
||
|
12361
|
12361
12361-64022 Insulator, Engine Mounting, Front[01.1992 - 01.1993] 2C..CR27 |
12361-64022 |
US $88.82 |
||
| replacement | |||||
|
12361
|
12361
12361-64023 Insulator, Engine Mounting, Front[01.1992 - 01.1993] 2C..CR27 |
12361-64023 |
US $90.27 |
||
|
12361
|
12361
12361-64023 Insulator, Engine Mounting, Front[01.1993 - 10.1996] 2C..CR27 |
12361-64023 |
US $90.27 |
||
|
12371
|
12371
12371-13051 Insulator, Engine Mounting, Rear No.1[01.1992 - 07.2000] 2C..CR27; 5K..KR2#; 3Y#,4YEC..YR2#,39..MTM |
12371-13051 |
US $40.48 |
||
|
12381
|
12381
12381-64010 Stabilizer, Engine Mounting[01.1992 - 05.1993] 2C..CR27 |
12381-64010 |
US $26.50 |
||
| replacement | |||||
|
12381
|
12381
12381-64110 Stabilizer, Engine Mounting[01.1992 - 05.1993] 2C..CR27 |
12381-64110 |
US $25.92 |
||
|
12381
|
12381
12381-64011 Stabilizer, Engine Mounting[05.1993 - 10.1996] 2C..CR27 |
12381-64011 |
US $26.50 |
||
| replacement | |||||
|
12381
|
12381
12381-64110 Stabilizer, Engine Mounting[05.1993 - 10.1996] 2C..CR27 |
12381-64110 |
US $25.92 |
||
|
12511
|
12511
12511-64030 Bracket, Alternator, No.1[01.1992 - 09.1993] 2C..CR27 |
12511-64030 |
US $64.36 |
||
|
12511
|
12511
12511-64080 Bracket, Alternator, No.1[09.1993 - 10.1996] 2C..CR27 |
12511-64080 |
US $125.22 |
||
|
9010510386
|
9010510386
90105-10386 Bolt(For Alternator) |
90105-10386 |
US $5.53 |
||
|
9011910485
|
9011910485
90119-10485 New Genuine Part |
90119-10485 |
US $2.48 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9020913002
|
9020913002
90209-13002 New Genuine Part |
90209-13002 |
US $4.08 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165260820
|
9165260820
91652-60820 Bolt, Radiator Side Support Plate |
91652-60820 |
US $1.89 |
||
| replacement | |||||
|
9165260820
|
9165260820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.20 |
||
