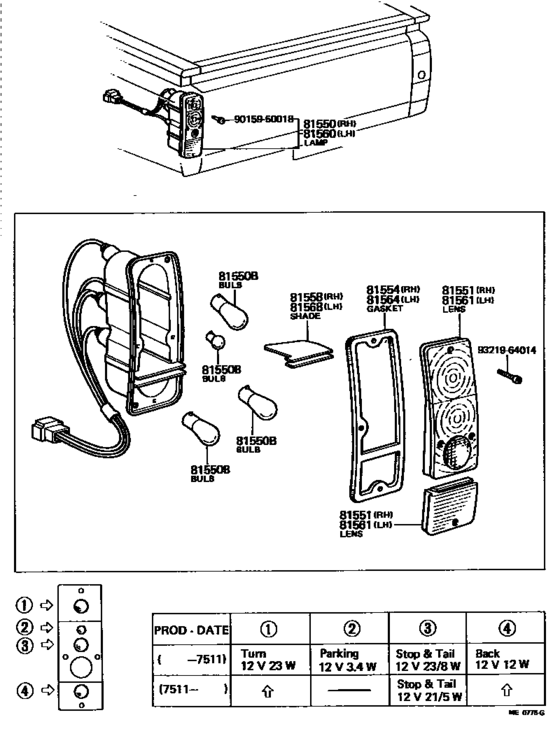

Rear Combination Lamp ([05.1971 - 08.1974] (7105-7408)T1) Diagram Toyota LITEACE
- Year
- 1971 - 1974
- Sales region
- General
- Frame
- KM10
- body
- TR
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 08.1974
- Vehicle Model
- LITEACE
- Driver's Position
- T1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-29385 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED-CLEAR |
81550-29385 |
US $208.21 |
||
| replacement | |||||
|
81550
|
81550
81550-29386
Lamp Assy, Rear Combination, Rh
[05.1971 - 04.1973] KM10..T1 AMBER-RED-CLEAR |
81550-29386 |
— | ||
|
81550
|
81550
81550-29386
Lamp Assy, Rear Combination, Rh
[04.1973 - 08.1974] KM10..T1 AMBER-RED-CLEAR |
81550-29386 |
— | ||
|
81550
|
81550
81550-29775 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [07.1976 - 09.1979] KM1#..T3 AMBER-RED-CLEAR |
81550-29775 |
US $128.13 |
||
|
81550B
|
81550B
99132-11120 Bulb(For Map Lamp)[05.1971 - 09.1979] KM10..T1 12V 12W |
99132-11120 |
US $2.77 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[05.1971 - 09.1979] KM10..T1 12V 23W,12V 23W |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-12034 Bulb, Position Indicator Lamp[05.1971 - 11.1975] KM10 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
81550B
|
81550B
00234-00158 Bulb, Position Indicator Lamp[05.1971 - 11.1975] KM10 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[11.1975 - 09.1979] KM1# 12V 21/5W,12V 21/5W |
99132-21210 |
from US $2.75 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[05.1971 - 11.1975] KM10 12V 23/8W,12V 23/8W |
99132-21230 |
US $3.40 |
||
|
81551
|
81551
81551-27020 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED |
81551-27020 |
US $28.68 |
||
| replacement | |||||
|
81551
|
81551
81551-27021 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED |
81551-27021 |
US $28.68 |
||
|
81551
|
81551
81551-27021 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.1973 - 08.1974] KM10..T1 AMBER-RED |
81551-27021 |
US $28.68 |
||
|
81551
|
81551
81551-36060
Lens, Rear Combination Lamp, Rh
[07.1976 - 09.1979] KM1#..T3 RED-CLEAR |
81551-36060 |
— | ||
|
81551
|
81551
81559-27020 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 08.1974] KM10..T1 CLEAR |
81559-27020 |
US $18.49 |
||
|
81551
|
81551
81559-36060
Lens, Rear Combination Lamp, Rh
[07.1976 - 09.1979] KM1#..T3 AMBER |
81559-36060 |
— | ||
|
81554
|
81554
81552-27020
Gasket, Rear Combination Lamp Body, Rh
[05.1971 - 08.1974] KM10..T1 |
81552-27020 |
— | ||
|
81554
|
81554
81554-36060 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [07.1976 - 09.1979] KM1#..T3 |
81554-36060 |
US $21.26 |
||
|
81558
|
81558
81557-27020
Shade, Rear Combination Lamp, No.1 Rh
[05.1971 - 08.1974] KM10..T1 |
81557-27020 |
— | ||
|
81558
|
81558
81557-36060 Shade, Rear Combination Lamp, No.1 RhREAR COMBINATION LAMP, NO.3 RH [07.1976 - 09.1979] KM1#..T3 |
81557-36060 |
US $2.62 |
||
|
81560
|
81560
81550-29385 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED-CLEAR |
81550-29385 |
US $208.21 |
||
| replacement | |||||
|
81560
|
81560
81550-29386
Lamp Assy, Rear Combination, Rh
[05.1971 - 04.1973] KM10..T1 AMBER-RED-CLEAR |
81550-29386 |
— | ||
|
81560
|
81560
81550-29386
Lamp Assy, Rear Combination, Rh
[04.1973 - 08.1974] KM10..T1 AMBER-RED-CLEAR |
81550-29386 |
— | ||
|
81560
|
81560
81560-29765 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [07.1976 - 09.1979] KM1#..T3 AMBER-RED-CLEAR |
81560-29765 |
US $128.13 |
||
|
81561
|
81561
81551-27020 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED |
81551-27020 |
US $28.68 |
||
| replacement | |||||
|
81561
|
81561
81551-27021 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..T1 AMBER-RED |
81551-27021 |
US $28.68 |
||
|
81561
|
81561
81551-27021 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.1973 - 08.1974] KM10..T1 AMBER-RED |
81551-27021 |
US $28.68 |
||
|
81561
|
81561
81559-27020 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 08.1974] KM10..T1 CLEAR |
81559-27020 |
US $18.49 |
||
|
81561
|
81561
81561-36050
Lens, Rear Combination Lamp, Lh
[07.1976 - 09.1979] KM1#..T3 RED-CLEAR |
81561-36050 |
— | ||
|
81561
|
81561
81569-36050
Lens, Rear Combination Lamp, Lh
[07.1976 - 09.1979] KM1#..T3 AMBER |
81569-36050 |
— | ||
|
81564
|
81564
81552-27020
Gasket, Rear Combination Lamp Body, Rh
[05.1971 - 08.1974] KM10..T1 |
81552-27020 |
— | ||
|
81564
|
81564
81554-36060 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [07.1976 - 09.1979] KM1#..T3 |
81554-36060 |
US $21.26 |
||
|
81568
|
81568
81557-27020
Shade, Rear Combination Lamp, No.1 Rh
[05.1971 - 08.1974] KM10..T1 |
81557-27020 |
— | ||
|
81568
|
81568
81557-36060 Shade, Rear Combination Lamp, No.1 RhREAR COMBINATION LAMP, NO.3 RH [07.1976 - 09.1979] KM1#..T3 |
81557-36060 |
US $2.62 |
||
|
9015950018
|
9015950018
90159-50018 New Genuine Part |
90159-50018 |
US $2.77 |
||
|
9321964014
|
9321964014
93219-64014 New Genuine Part |
93219-64014 |
US $0.61 |
||
