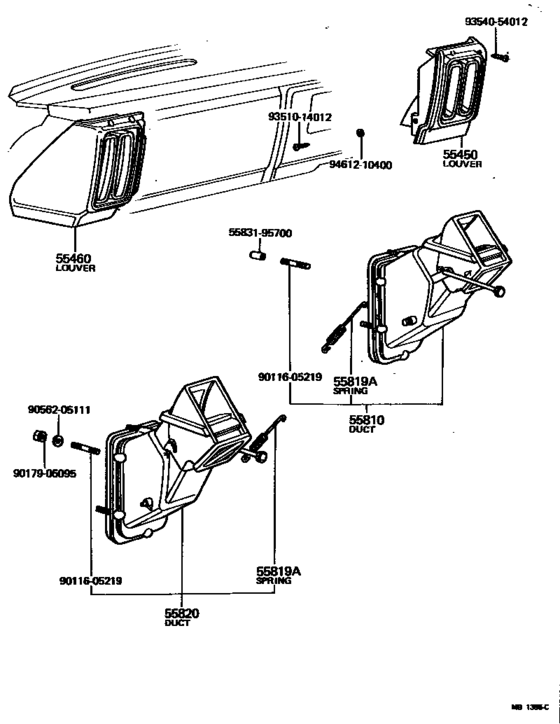

Front Ventilator ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1971 - 1974
- Sales region
- General
- Frame
- KM10
- body
- TR
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 08.1974
- Vehicle Model
- LITEACE
- Driver's Position
- T3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55450
|
55450
55450-95700 Louver Assy, Side Ventilator, RhSIDE VENTILATOR, RH [05.1971 - 10.1976] KM10 |
55450-95700 |
US $40.04 |
||
| replacement | |||||
|
55450
|
55450
55450-95700-01
Louver Assy, Side Ventilator, Rh
[05.1971 - 10.1976] KM10 |
55450-95700-01 |
— | ||
|
55450
|
55450
55450-95700-01
Louver Assy, Side Ventilator, Rh
[10.1976 - 09.1979] KM1# BLACK,BLACK |
55450-95700-01 |
— | ||
|
55460
|
55460
55460-95700 Louver Assy, Side Ventilator, LhSIDE VENTILATOR, LH [05.1971 - 10.1976] KM10 |
55460-95700 |
US $40.04 |
||
| replacement | |||||
|
55460
|
55460
55460-95700-01
Louver Assy, Side Ventilator, Lh
[05.1971 - 10.1976] KM10 |
55460-95700-01 |
— | ||
|
55460
|
55460
55460-95700-01
Louver Assy, Side Ventilator, Lh
[10.1976 - 09.1979] KM1# BLACK,BLACK |
55460-95700-01 |
— | ||
|
55810
|
55810
55810-95700 Duct Assy, Side Ventilator, RhSIDE VENTILATOR, RH [05.1971 - 07.1973] KM10 |
55810-95700 |
US $106.29 |
||
| replacement | |||||
|
55810
|
55810
55810-95701 Duct Assy, Side Ventilator, RhSIDE VENTILATOR, RH [05.1971 - 07.1973] KM10 |
55810-95701 |
US $106.29 |
||
|
55810
|
55810
55810-95701 Duct Assy, Side Ventilator, RhSIDE VENTILATOR, RH [07.1973 - 09.1979] KM1# |
55810-95701 |
US $106.29 |
||
|
55819A
|
55819A
90506-10340
Spring, Tension(For Side Ventilator Control Rod)
[05.1971 - 09.1979] KM1# |
90506-10340 |
— | ||
|
55820
|
55820
55820-95700
Duct Assy, Side Ventilator, Lh
[05.1971 - 09.1979] KM1# |
55820-95700 |
— | ||
|
5583195700
|
5583195700
55831-95700
Handle Or Lever, Ventilator Shutter
|
55831-95700 |
— | ||
|
9011605219
|
9011605219
90116-05219
New Genuine Part
|
90116-05219 |
— | ||
|
9017905095
|
9017905095
90179-05095
New Genuine Part
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
US $1.65 |
||
|
9056205111
|
9056205111
90562-05111
New Genuine Part
|
90562-05111 |
— | ||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $0.96 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.10 |
||
|
9461210400
|
9461210400
94612-10400 New Genuine Part |
94612-10400 |
US $2.18 |
||
