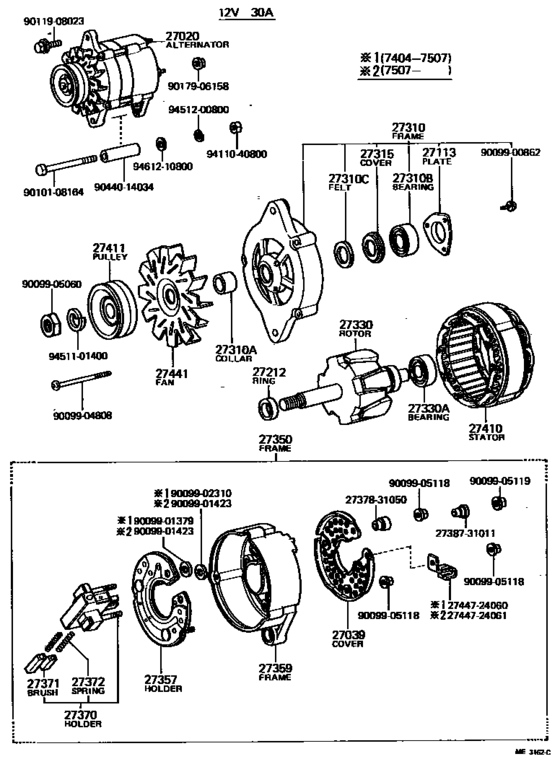

Alternator ([04.1974 - 09.1979] (7404-7909)) Diagram Toyota LITEACE
- Year
- 1976 - 1978
- Sales region
- General
- Frame
- KM10
- body
- TR
- ENGINE
- 3KJ
- Model
- LITEACE
- From
- 07.1976
- To
- 02.1978
- Vehicle Model
- LITEACE
- Driver's Position
- T3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-12012 Alternator Assy[07.1975 - 09.1979] 3K#,4KJ..KM1# 12V 30A |
27020-12012 |
US $525.62 |
||
|
27039
|
27039
27039-11014
Cover, Alternator Rear End
[04.1974 - 09.1979] 3K#,4KJ..KM1# |
27039-11014 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-12030
Cover, Alternator Rear End
[04.1974 - 09.1979] 3K#,4KJ..KM1# |
27039-12030 |
— | ||
|
27113
|
27113
27113-10012
Plate, Bearing Retainer, Alternator
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27113-10012 |
— | ||
|
27212
|
27212
90099-19068 Ring, Space(For Alternator Rotor)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90099-19068 |
US $1.16 |
||
|
27310
|
27310
27310-22012
Frame Assy, Drive End, Alternator
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27310-22012 |
— | ||
|
27310A
|
27310A
27412-56040
Collar Or Nut(For Alternator Drive End Frame)
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27412-56040 |
— | ||
|
27310B
|
27310B
90099-10012 Bearing(For Alternator Drive End Frame)[05.1971 - 09.1979] 3K#,4KJ..KM1# 6202Z |
90099-10012 |
US $8.74 |
||
|
27310C
|
27310C
90099-02009
Felt(For Alternator Drive End Frame)
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90099-02009 |
— | ||
|
27315
|
27315
27313-39010
Cover, Alternator Felt, Inner No.1
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27313-39010 |
— | ||
|
27330
|
27330
27330-22012
Rotor Assy, Alternator
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27330-22012 |
— | ||
|
27330A
|
27330A
97110-06201
Bearing(For Alternator Rotor)
[05.1971 - 09.1979] 3K#,4KJ..KM1# 6201Z |
97110-06201 |
— | ||
|
27350
|
27350
27350-12012
Frame Assy, Rectifier End
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27350-12012 |
— | ||
| replacement | |||||
|
27350
|
27350
27350-12030
Frame Assy, Rectifier End
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27350-12030 |
— | ||
|
27357
|
27357
27357-11014
Holder, Alternator, W/rectifier
[04.1974 - 09.1979] 3K#,4KJ..KM1# |
27357-11014 |
— | ||
|
27359
|
27359
27359-31090
Frame, Alternator Rectifier End
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27359-31090 |
— | ||
|
27370
|
27370
27370-31090
Holder Assy, Alternator Brush
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27370-31090 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27371-31011 |
from US $2.45 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
27372-31011 |
— | ||
|
27410
|
27410
27410-11014
Stator Assy, Alternator
[04.1974 - 09.1979] 3K#,4KJ..KM1# |
27410-11014 |
— | ||
|
27411
|
27411
27411-12012
Pulley, Alternator
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27411-12012 |
— | ||
|
27441
|
27441
27441-31090
Fan, Alternator
[07.1975 - 09.1979] 3K#,4KJ..KM1# |
27441-31090 |
— | ||
|
2737831050
|
2737831050
27378-31050
Insulator, Alternator, No.1
|
27378-31050 |
— | ||
|
2738731011
|
2738731011
27387-31011
Insulator, Terminal
|
27387-31011 |
— | ||
|
2744724060
|
2744724060
27447-24060
Clip, Alternator Cord
|
27447-24060 |
— | ||
|
2744724061
|
2744724061
27447-24061
Clip, Alternator Cord
|
27447-24061 |
— | ||
|
9009900862
|
9009900862
90099-00862
New Genuine Part
|
90099-00862 |
— | ||
|
9009901379
|
9009901379
90099-01379
New Genuine Part
|
90099-01379 |
— | ||
|
9009901423
|
9009901423
90099-01423
New Genuine Part
|
90099-01423 |
— | ||
|
9009902310
|
9009902310
90099-02310
New Genuine Part
|
90099-02310 |
— | ||
|
9009904808
|
9009904808
90099-04808
New Genuine Part
|
90099-04808 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010108164
|
9010108164
90101-08164
New Genuine Part
|
90101-08164 |
— | ||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9044014034
|
9044014034
90440-14034
New Genuine Part
|
90440-14034 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
