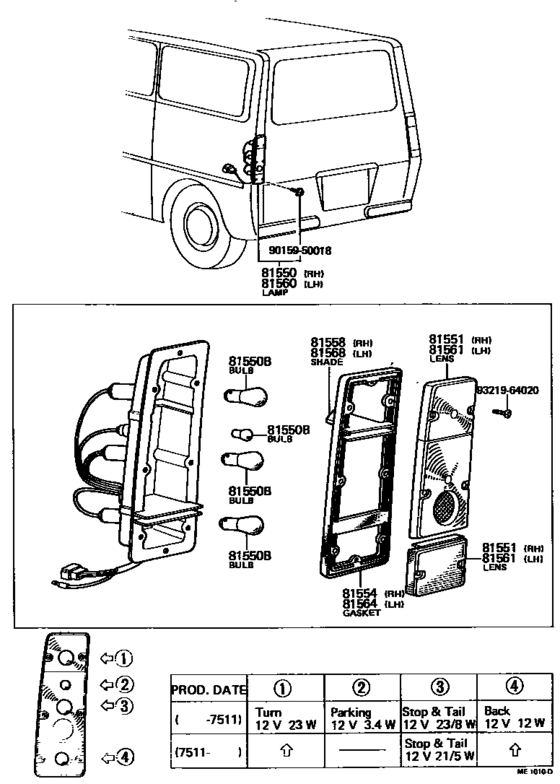

Rear Combination Lamp ([05.1971 - 09.1979] (7105-7909)HRF,SRF) Diagram Toyota LITEACE
- Year
- 1971 - 1974
- Sales region
- Europe
- Frame
- KM10
- body
- WG
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 08.1974
- Vehicle Model
- LITEACE
- Driver's Position
- SRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-29395 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [05.1971 - 04.1973] KM10..SRF AMBER-RED-CLEAR |
81550-29395 |
US $235.87 |
||
| replacement | |||||
|
81550
|
81550
81550-29396
Lamp Assy, Rear Combination, Rh
[05.1971 - 04.1973] KM10..SRF AMBER-RED-CLEAR |
81550-29396 |
— | ||
|
81550
|
81550
81550-29396
Lamp Assy, Rear Combination, Rh
[04.1973 - 11.1975] KM10..SRF AMBER-RED-CLEAR |
81550-29396 |
— | ||
|
81550B
|
81550B
99132-12034 Bulb, Position Indicator Lamp[05.1971 - 11.1975] KM10 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
81550B
|
81550B
00234-00158 Bulb, Position Indicator Lamp[05.1971 - 11.1975] KM10 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[11.1975 - 09.1979] KM1# 12V 21/5W,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[05.1971 - 11.1975] KM10 12V 23/8W,12V 23/8W |
99132-21230 |
US $3.40 |
||
|
81551
|
81551
81551-27010 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..SRF AMBER-RED |
81551-27010 |
US $27.23 |
||
| replacement | |||||
|
81551
|
81551
81551-27011 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 04.1973] KM10..SRF AMBER-RED |
81551-27011 |
US $27.23 |
||
|
81551
|
81551
81551-27011 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [04.1973 - 09.1979] KM1#..HRF,SRF AMBER-RED |
81551-27011 |
US $27.23 |
||
|
81551
|
81551
81559-27010 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1971 - 09.1979] KM1#..HRF,SRF CLEAR |
81559-27010 |
US $11.21 |
||
|
81554
|
81554
81552-27010
Gasket, Rear Combination Lamp Body, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
81552-27010 |
— | ||
|
81558
|
81558
81557-27010
Shade, Rear Combination Lamp, No.1 Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
81557-27010 |
— | ||
|
81560
|
81560
81560-29385 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [05.1971 - 04.1973] KM10..SRF AMBER-RED-CLEAR |
81560-29385 |
US $215.49 |
||
| replacement | |||||
|
81560
|
81560
81560-29386 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [05.1971 - 04.1973] KM10..SRF AMBER-RED-CLEAR |
81560-29386 |
US $235.87 |
||
|
81560
|
81560
81560-29386 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [04.1973 - 11.1975] KM10..SRF AMBER-RED-CLEAR |
81560-29386 |
US $235.87 |
||
|
81561
|
81561
81561-27010 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1971 - 04.1973] KM10..SRF AMBER-RED |
81561-27010 |
US $27.23 |
||
| replacement | |||||
|
81561
|
81561
81561-27011 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1971 - 04.1973] KM10..SRF AMBER-RED |
81561-27011 |
US $27.23 |
||
|
81561
|
81561
81561-27011 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [04.1973 - 09.1979] KM1#..HRF,SRF AMBER-RED |
81561-27011 |
US $27.23 |
||
|
81561
|
81561
81569-27010 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1971 - 09.1979] KM1#..HRF,SRF CLEAR |
81569-27010 |
US $10.48 |
||
|
81564
|
81564
81562-27010
Gasket, Rear Combination Lamp Body, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
81562-27010 |
— | ||
|
81568
|
81568
81567-27010
Shade, Rear Combination Lamp, No.1 Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
81567-27010 |
— | ||
|
9015950018
|
9015950018
90159-50018 New Genuine Part |
90159-50018 |
US $2.77 |
||
|
9321964020
|
9321964020
93219-64020
Screw
|
93219-64020 |
— | ||
| replacement | |||||
|
9321964020
|
9321964020
81559-10050 Screw |
81559-10050 |
US $5.73 |
||
