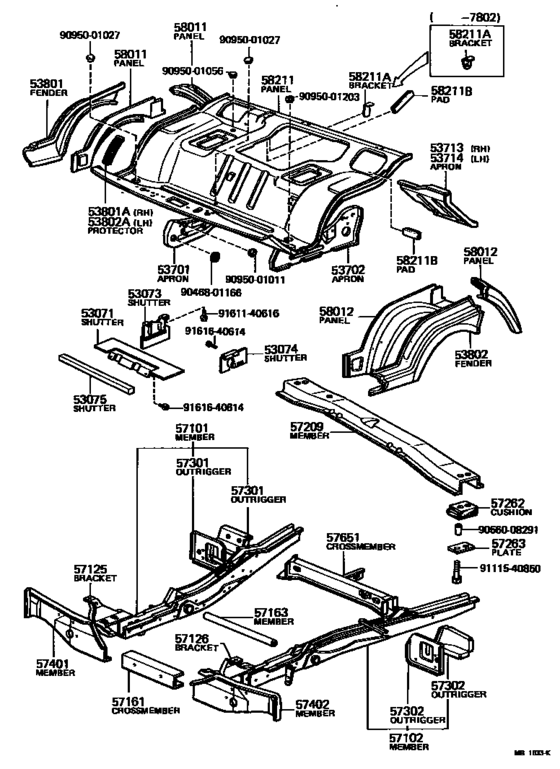

Front Floor Panel & Front Floor Member ([05.1971 - 09.1979] (7105-7909)HRF,SRF) Diagram Toyota LITEACE
- Year
- 1971 - 1975
- Sales region
- General
- Frame
- KM10
- body
- V
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 11.1975
- Vehicle Model
- LITEACE
- Driver's Position
- SRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
58201-95700
Apron Sub-Assy, Front Fender, Rh
[05.1971 - 02.1978] KM10..HRF,SRF |
58201-95700 |
— | ||
|
53702
|
53702
58202-95700
Apron Sub-Assy, Front Fender, Lh
[05.1971 - 04.1975] KM10..SRF |
58202-95700 |
— | ||
|
53702
|
53702
58202-95702
Apron Sub-Assy, Front Fender, Lh
[04.1975 - 02.1978] KM10..V |
58202-95702 |
— | ||
|
53713
|
53713
58233-95700
Apron, Fender Side, Rh
[05.1971 - 09.1979] KM1# |
58233-95700 |
— | ||
|
53714
|
53714
58234-95700
Apron, Fender Side, Lh
[05.1971 - 09.1979] KM1# |
58234-95700 |
— | ||
|
53801
|
53801
61411-95700 Fender Sub-Assy, Front RhFRONT RH [05.1971 - 09.1979] KM1# |
61411-95700 |
US $190.74 |
||
| replacement | |||||
|
53801
|
53801
61411-95D00
Fender Sub-Assy, Front Rh
[05.1971 - 09.1979] KM1# |
61411-95D00 |
— | ||
|
53802
|
53802
61412-95700 Fender Sub-Assy, Front LhFRONT LH [05.1971 - 09.1979] KM1# |
61412-95700 |
US $190.74 |
||
| replacement | |||||
|
53802
|
53802
61412-95D00
Fender Sub-Assy, Front Lh
[05.1971 - 09.1979] KM1# |
61412-95D00 |
— | ||
|
57101
|
57101
57101-95700
Member Sub-Assy, Front Side, Rh
[05.1971 - 02.1978] KM10..HRF,SRF |
57101-95700 |
— | ||
|
57102
|
57102
57102-95700
Member Sub-Assy, Front Side, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
57102-95700 |
— | ||
|
57125
|
57125
57107-95700
Bracket, Front Side Member, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
57107-95700 |
— | ||
|
57126
|
57126
57126-95700
Bracket, Front Side Member, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
57126-95700 |
— | ||
|
57161
|
57161
57161-95700
Crossmember, Front
[05.1971 - 09.1979] KM1#..HRF,SRF |
57161-95700 |
— | ||
|
57163
|
57163
57162-95700
Member, Front Floor Cross, No.2
[05.1971 - 09.1979] KM1#..HRF,SRF |
57162-95700 |
— | ||
|
57209
|
57209
57253-95700
Member Sub-Assy, Engine Rear Support
[05.1971 - 09.1979] KM1#..HRF,SRF |
57253-95700 |
— | ||
|
57262
|
57262
57262-95700
Cushion, Engine Rear Support Member
[05.1971 - 09.1979] KM1#..HRF,SRF |
57262-95700 |
— | ||
|
57263
|
57263
57026-95700
Plate, Engine Rear Support Member Cushion
[05.1971 - 09.1979] KM1#..HRF,SRF |
57026-95700 |
— | ||
|
57301
|
57301
57301-95700
Outrigger Sub-Assy, No.1 Rh
[05.1971 - 09.1979] KM1#..HRF,SRF FRONT |
57301-95700 |
— | ||
|
57301
|
57301
57313-95700
Outrigger Sub-Assy, No.1 Rh
[05.1971 - 09.1979] KM1#..HRF,SRF REAR |
57313-95700 |
— | ||
|
57302
|
57302
57312-95700
Outrigger Sub-Assy, No.1, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF FRONT |
57312-95700 |
— | ||
|
57302
|
57302
57314-95700
Outrigger Sub-Assy, No.1, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF REAR |
57314-95700 |
— | ||
|
57401
|
57401
58207-95700
Member Sub-Assy, Main Floor Side, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
58207-95700 |
— | ||
|
57402
|
57402
58208-95700
Member Sub-Assy, Main Floor Side, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
58208-95700 |
— | ||
|
57651
|
57651
57604-95700
Crossmember, Rear Floor, Front
[05.1971 - 09.1979] KM1#..HRF,SRF |
57604-95700 |
— | ||
|
58011
|
58011
61421-95700
Panel Sub-Assy, Front Floor Side, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF FRONT |
61421-95700 |
— | ||
|
58011
|
58011
61423-95700
Panel Sub-Assy, Front Floor Side, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF REAR |
61423-95700 |
— | ||
|
58012
|
58012
61422-95700
Panel Sub-Assy, Front Floor Side, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF FRONT |
61422-95700 |
— | ||
|
58012
|
58012
61424-95700
Panel Sub-Assy, Front Floor Side, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF REAR |
61424-95700 |
— | ||
|
58211
|
58211
58211-95700
Panel, Front Floor
[05.1971 - 04.1975] KM10..SRF |
58211-95700 |
— | ||
|
58211
|
58211
58211-95705
Panel, Front Floor
[04.1975 - 10.1976] KM10..V |
58211-95705 |
— | ||
|
58211
|
58211
58211-95707
Panel, Front Floor
[10.1976 - 02.1978] KM10..V |
58211-95707 |
— | ||
|
58211A
|
58211A
58213-95700
Bracket,accelerator Wire
[11.1975 - 02.1978] KM10..V |
58213-95700 |
— | ||
|
58211B
|
58211B
58291-95701 Pad, Front Floor PanelFRONT FLOOR PANEL [05.1971 - 12.1975] KM10 FOR ENGINE |
58291-95701 |
US $6.26 |
||
| replacement | |||||
|
58211B
|
58211B
58291-95704
Pad, Front Floor Panel
[05.1971 - 12.1975] KM10 FOR ENGINE |
58291-95704 |
— | ||
|
58211B
|
58211B
58291-95703 Pad, Front Floor PanelFRONT FLOOR PANEL [12.1975 - 09.1979] KM1# FOR ENGINE |
58291-95703 |
US $4.95 |
||
| replacement | |||||
|
58211B
|
58211B
58291-95704
Pad, Front Floor Panel
[12.1975 - 09.1979] KM1# FOR ENGINE |
58291-95704 |
— | ||
|
9046801166
|
9046801166
90468-01166
New Genuine Part
|
90468-01166 |
— | ||
|
9056008291
|
9056008291
90560-08291
New Genuine Part
|
90560-08291 |
— | ||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $3.05 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.58 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001203
|
9095001203
90950-01203 New Genuine Part |
90950-01203 |
US $2.33 |
||
|
9111540850
|
9111540850
91115-40850
New Genuine Part
|
91115-40850 |
— | ||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
