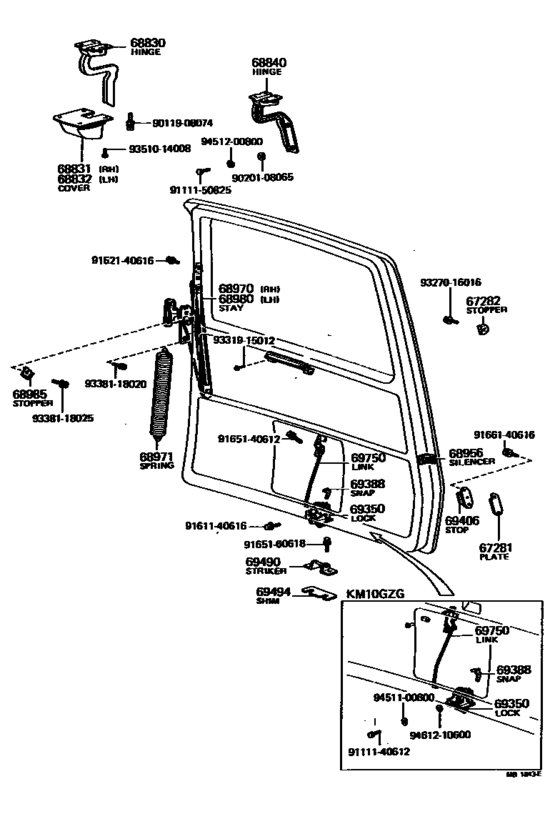

Back Door Lock & Hinge ([05.1971 - 09.1979] (7105-7909)HRF,SRF) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67281
|
67281
69467-95700 Plate, Back Door StopperBACK DOOR STOPPER [05.1971 - 09.1979] KM1#..HRF,SRF |
69467-95700 |
US $10.92 |
||
|
67282
|
67282
69452-95700
Stopper, Back Door, No.1
[05.1971 - 09.1979] KM1#..HRF,SRF |
69452-95700 |
— | ||
|
68830
|
68830
68810-95700
Hinge Assy, Back Door, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
68810-95700 |
— | ||
|
68840
|
68840
68820-95700
Hinge Assy, Back Door, Lh
[05.1971 - 09.1979] KM1#..HRF,SRF |
68820-95700 |
— | ||
|
68956
|
68956
68956-95660
Silencer, Back Door Stay
[05.1971 - 09.1979] KM1#..HRF,SRF |
68956-95660 |
— | ||
|
68970
|
68970
68950-95700
Stay Assy, Back Door, Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
68950-95700 |
— | ||
|
68971
|
68971
90506-60345
Spring, Back Door Upper Balancer
[05.1971 - 09.1979] KM1#..HRF,SRF |
90506-60345 |
— | ||
|
68980
|
68980
68960-95700
Stay Assy, Back Door
[05.1971 - 09.1979] KM1#..HRF,SRF |
68960-95700 |
— | ||
|
68985
|
68985
68966-95700
Stopper, Back Door Upper Stay
[05.1971 - 09.1979] KM1#..HRF,SRF |
68966-95700 |
— | ||
|
69350
|
69350
69350-95700
Lock Assy, Back Door
[05.1971 - 09.1979] KM1#..HRF,SRF |
69350-95700 |
— | ||
|
69388
|
69388
69768-13010
Snap, Front Seat Control Arm
[05.1971 - 09.1979] KM1#..HRF,SRF |
69768-13010 |
— | ||
|
69406
|
69406
69407-95700
Stop Sub-Assy, Back Door Down
[05.1971 - 09.1979] KM1#..HRF,SRF |
69407-95700 |
— | ||
|
69490
|
69490
69450-13010
Check, Back Door
[05.1971 - 09.1979] KM1#..HRF,SRF |
69450-13010 |
— | ||
|
69494
|
69494
69469-13010
Shim, Back Door Lock Striker
[11.1975 - 09.1979] KM1#..V |
69469-13010 |
— | ||
|
69750
|
69750
75410-95700
Link Sub-Assy, Back Door Remote Control
[05.1971 - 09.1979] KM1#..HRF,SRF |
75410-95700 |
— | ||
|
9011908074
|
9011908074
90119-08074
New Genuine Part
|
90119-08074 |
— | ||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9111150825
|
9111150825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.40 |
||
|
9152140616
|
9152140616
91521-40616 New Genuine Part |
91521-40616 |
US $1.75 |
||
| replacement | |||||
|
9152140616
|
9152140616
91511-40616 New Genuine Part |
91511-40616 |
US $2.15 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9327016016
|
9327016016
93270-16016 New Genuine Part |
93270-16016 |
US $1.60 |
||
| replacement | |||||
|
9327016016
|
9327016016
93260-16016 New Genuine Part |
93260-16016 |
US $1.46 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9338118020
|
9338118020
93381-18020 SCREW |
93381-18020 |
from US $1.48 |
||
|
9338118025
|
9338118025
93381-18025 New Genuine Part |
93381-18025 |
US $1.46 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $4.30 |
||
