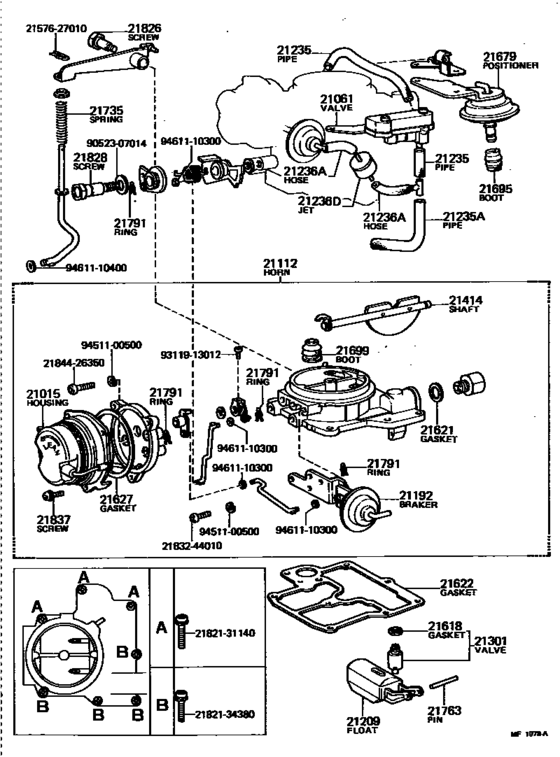

Carburetor ([02.1978 - 09.1979] (7802-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-13030
Housing Sub-Assy, Coil
[02.1978 - 09.1979] 4KJ..KM11 |
21015-13030 |
— | ||
|
21061
|
21061
21061-13030 Valve Sub-Assy, ThermostaticTHERMOSTATIC [02.1978 - 09.1979] 4KJ..KM11 |
21061-13030 |
US $133.95 |
||
| replacement | |||||
|
21061
|
21061
21061-13090 Valve Sub-Assy, Thermostatic[02.1978 - 09.1979] 4KJ..KM11 |
21061-13090 |
US $135.41 |
||
|
21112
|
21112
21112-13030
Horn, Air
[02.1978 - 09.1979] 4KJ..KM11 |
21112-13030 |
— | ||
|
21192
|
21192
21192-13030 Breaker[02.1978 - 08.1979] 4KJ..KM11 |
21192-13030 |
US $117.94 |
||
| replacement | |||||
|
21192
|
21192
21192-13090 Breaker[02.1978 - 08.1979] 4KJ..KM11 |
21192-13090 |
US $117.94 |
||
|
21192
|
21192
21192-13090 Breaker[08.1979 - 09.1979] 4KJ..KM11 |
21192-13090 |
US $117.94 |
||
|
21209
|
21209
21209-24480 Float Sub-Assy[02.1978 - 09.1979] 4KJ..KM11 |
21209-24480 |
US $32.61 |
||
|
21235
|
21235
21235-13030 Pipe Or Hose, ConnectingCONNECTING [02.1978 - 09.1979] 4KJ..KM11 LOWER,L=30 |
21235-13030 |
US $4.22 |
||
| replacement | |||||
|
21235
|
21235
90079-70004
Pipe Or Hose, Connecting
[02.1978 - 09.1979] 4KJ..KM11 LOWER,L=30 |
90079-70004 |
— | ||
|
21235
|
21235
21249-13030 Pipe Or Hose, ConnectingCONNECTING [02.1978 - 09.1979] 4KJ..KM11 UPPER,L=130 |
21249-13030 |
US $11.79 |
||
| replacement | |||||
|
21235
|
21235
21249-13031 Pipe Or Hose, Connecting[02.1978 - 09.1979] 4KJ..KM11 UPPER,L=130 |
21249-13031 |
US $12.67 |
||
|
21235A
|
21235A
21234-13030 Pipe Or Hose[02.1978 - 09.1979] 4KJ..KM11 |
21234-13030 |
US $8.88 |
||
| replacement | |||||
|
21235A
|
21235A
90079-70004
Pipe Or Hose, Connecting
[02.1978 - 09.1979] 4KJ..KM11 |
90079-70004 |
— | ||
|
21236A
|
21236A
95411-10530 Hose, No.1(For Opener)[02.1978 - 09.1979] 4KJ..KM11 H,L=50 |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
21236A
|
21236A
90999-92002
Air Hose (300 mm)
[02.1978 - 09.1979] 4KJ..KM11 H,L=50 |
90999-92002 |
— | ||
|
21236D
|
21236D
90925-04006 Jet(For Opener)[02.1978 - 09.1979] 4KJ..KM11 |
90925-04006 |
US $14.50 |
||
|
21301
|
21301
21301-24360 Valve Sub-Assy, NeedleNEEDLE [11.1975 - 02.1979] 3KJ,4KJ..KM1# |
21301-24360 |
US $27.52 |
||
|
21301
|
21301
21301-24500
Valve Sub-Assy, Needle
[02.1979 - 09.1979] 4KJ..KM11 |
21301-24500 |
— | ||
|
21414
|
21414
21054-13030
Shaft, Choke
[02.1978 - 09.1979] 4KJ..KM11 |
21054-13030 |
— | ||
|
21618
|
21618
21618-24030
Gasket, Needle Valve Seat
[12.1971 - 09.1979] 3K#,4KJ..KM1# |
21618-24030 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[05.1971 - 09.1979] 3K#,4KJ..KM1# |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-24360 Gasket, Air Horn[11.1975 - 09.1979] 3KJ,4KJ..KM1# |
21622-24360 |
US $10.05 |
||
| replacement | |||||
|
21622
|
21622
21622-13430 Gasket, Air Horn[11.1975 - 09.1979] 3KJ,4KJ..KM1# |
21622-13430 |
US $8.94 |
||
|
21627
|
21627
21627-34080
Gasket, Coil Housing
[02.1978 - 09.1979] 4KJ..KM11 |
21627-34080 |
— | ||
|
21679
|
21679
21679-13030
Positioner
[02.1978 - 09.1979] 4KJ..KM11 |
21679-13030 |
— | ||
|
21695
|
21695
21699-41010 Boot(For Dash Pot)[02.1978 - 09.1979] 4KJ..KM11 |
21699-41010 |
US $6.36 |
||
|
21699
|
21699
21699-21061
Boot(For Pump Plunger)
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
21699-21061 |
— | ||
| replacement | |||||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
21699-28150 |
US $14.50 |
||
|
21735
|
21735
21735-22010
Spring, Pump Arm
[02.1978 - 09.1979] 4KJ..KM11 |
21735-22010 |
— | ||
|
21763
|
21763
21763-38010 Pin, Float Lever[11.1975 - 09.1979] 3KJ,4KJ..KM1# |
21763-38010 |
US $3.93 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
21791-13010 |
US $3.32 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[05.1973 - 09.1979] 3K#,4KJ..KM1# |
21826-31012 |
— | ||
|
21828
|
21828
21842-13030
Screw, 1St Idle Set
[02.1978 - 09.1979] 4KJ..KM11 |
21842-13030 |
— | ||
|
21837
|
21837
21821-25010 Screw, Coil Housing Set[02.1978 - 09.1979] 4KJ..KM11 |
21821-25010 |
US $3.84 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2183244010
|
2183244010
21832-44010
Screw(For Choke Lever Adapter Set)
|
21832-44010 |
— | ||
|
2184426350
|
2184426350
21844-26350
Screw, Thermostat Case Set
|
21844-26350 |
— | ||
|
9052307014
|
9052307014
90523-07014 Ring, E(For Reverse Shift Arm) |
90523-07014 |
US $2.18 |
||
|
9311913012
|
9311913012
93119-13012 New Genuine Part |
93119-13012 |
US $1.75 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
