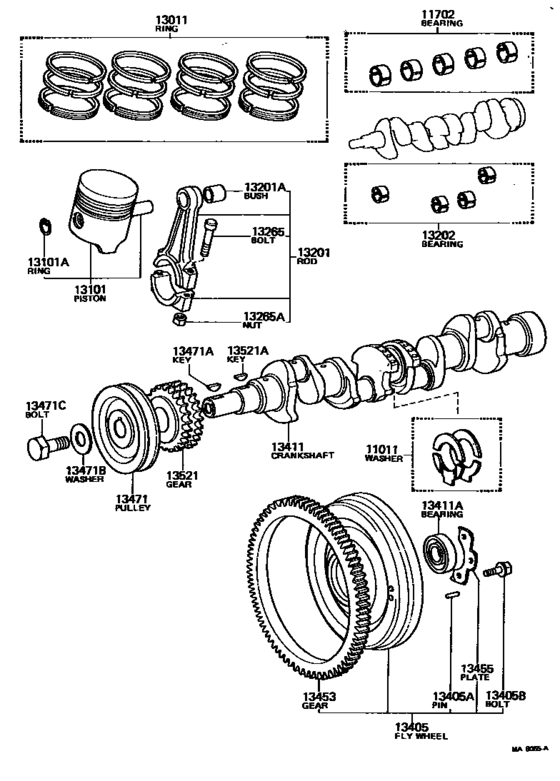

Crankshaft & Piston ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-22010 Washer Set, Crankshaft ThrustCRANKSHAFT THRUST [05.1971 - 08.1979] 3K#,4KJ..KM1# STD |
11011-22010 |
US $26.06 |
||
| replacement | |||||
|
11011
|
11011
11011-22011
Washer Set, Crankshaft Thrust
[05.1971 - 08.1979] 3K#,4KJ..KM1# STD |
11011-22011 |
— | ||
|
11011
|
11011
11011-22011
Washer Set, Crankshaft Thrust
[08.1979 - 09.1979] 4KJ..KM11 STD,STD |
11011-22011 |
— | ||
|
11011
|
11011
11012-22010
Washer Set, Crankshaft Thrust
[05.1971 - 08.1979] 3K#,4KJ..KM1# O/S 0.125 |
11012-22010 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-22011 Washer Set, Crankshaft Thrust[05.1971 - 08.1979] 3K#,4KJ..KM1# O/S 0.125 |
11012-22011 |
US $19.04 |
||
|
11011
|
11011
11012-22011 Washer Set, Crankshaft Thrust[08.1979 - 09.1979] 4KJ..KM11 O/S 0.125,O/S 0.125 |
11012-22011 |
US $19.04 |
||
|
11011
|
11011
11013-22010
Washer Set, Crankshaft Thrust
[05.1971 - 08.1979] 3K#,4KJ..KM1# O/S 0.25 |
11013-22010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-22011 Washer Set, Crankshaft Thrust[05.1971 - 08.1979] 3K#,4KJ..KM1# O/S 0.25 |
11013-22011 |
US $18.05 |
||
|
11011
|
11011
11013-22011 Washer Set, Crankshaft Thrust[08.1979 - 09.1979] 4KJ..KM11 O/S 0.250,O/S 0.25 |
11013-22011 |
US $18.05 |
||
|
11702
|
11702
11702-22020
Bearing Set, Crankshaft
[03.1973 - 09.1979] 3K#,4KJ..KM1# STD |
11702-22020 |
— | ||
|
11702
|
11702
11703-22020 Bearing Set, CrankshaftCRANKSHAFT [03.1973 - 09.1979] 3K#,4KJ..KM1# U/S 0.05 |
11703-22020 |
US $350.90 |
||
|
11702
|
11702
11704-22020
Bearing Set, Crankshaft
[03.1973 - 09.1979] 3K#,4KJ..KM1# U/S 0.25,U/S 0.25 |
11704-22020 |
— | ||
|
11702
|
11702
11705-22020 Bearing Set, CrankshaftCRANKSHAFT [03.1973 - 09.1979] 3K#,4KJ..KM1# U/S 0.50 |
11705-22020 |
US $350.90 |
||
|
13011
|
13011
13011-24011 Ring Set, PistonPISTON [03.1976 - 09.1979] 3KJ,4KJ..KM1# STD |
13011-24011 |
US $199.47 |
||
| replacement | |||||
|
13011
|
13011
13011-13030
Ring Set, Piston
[03.1976 - 09.1979] 3KJ,4KJ..KM1# STD |
13011-13030 |
— | ||
|
13011
|
13011
13013-24011
Ring Set, Piston
[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 0.50 |
13013-24011 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-13030 Ring Set, Piston[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 0.50 |
13013-13030 |
from US $112.55 |
||
|
13011
|
13011
13014-24011
Ring Set, Piston
[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 0.75 |
13014-24011 |
— | ||
| replacement | |||||
|
13011
|
13011
13014-13030 Ring Set, Piston[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 0.75 |
13014-13030 |
from US $150.40 |
||
|
13011
|
13011
13015-24011
Ring Set, Piston
[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 1.00 |
13015-24011 |
— | ||
| replacement | |||||
|
13011
|
13011
13015-13030 Ring Set, Piston[03.1976 - 09.1979] 3KJ,4KJ..KM1# O/S 1.00 |
13015-13030 |
from US $128 |
||
|
13101
|
13101
13101-24011 Piston Sub-Assy, W/pin[03.1976 - 09.1979] 3KJ,4KJ..KM1# STD,STD |
13101-24011 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13101-24011-02 Piston Sub-Assy, W/pin[03.1976 - 09.1979] 3KJ,4KJ..KM1# STD,STD |
13101-24011-02 |
US $91.73 |
||
|
13101
|
13101
13103-24010 Piston Sub-Assy, W/pin[05.1971 - 09.1979] 3K#,4KJ..KM1# O/S 0.50,O/S 0.50 |
13103-24010 |
US $74.26 |
||
|
13101
|
13101
13104-24010 Piston Sub-Assy, W/pin[05.1971 - 09.1979] 3K#,4KJ..KM1# O/S 0.75,O/S 0.75 |
13104-24010 |
US $107.74 |
||
|
13101
|
13101
13105-24010 Piston Sub-Assy, W/pin[05.1971 - 09.1979] 3K#,4KJ..KM1# O/S 1.00,O/S 1.00 |
13105-24010 |
US $107.74 |
||
|
13101A
|
13101A
90521-21088 Ring, Hole Snap(For Piston Pin)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90521-21088 |
US $1.79 |
||
|
13201
|
13201
13201-13010 Rod Sub-Assy, Connecting[02.1978 - 09.1979] 4KJ..KM11 |
13201-13010 |
US $101.92 |
||
|
13201A
|
13201A
90999-73070 Bush(For Connecting Rod Small End)[04.1973 - 09.1979] 3K#,4KJ..KM1# |
90999-73070 |
US $8.53 |
||
|
13202
|
13202
13202-13010
Bearing Set, Connecting Rod
[07.1977 - 09.1979] 3KJ,4KJ..KM1# STD,STD |
13202-13010 |
— | ||
| replacement | |||||
|
13202
|
13202
13041-13040-03 Bearing, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# STD,STD |
13041-13040-03 |
from US $1.23 |
||
|
13202
|
13202
13203-13010 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.05,U/S 0.05 |
13203-13010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13041-13040-07 Bearing, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.05,U/S 0.05 |
13041-13040-07 |
US $31.16 |
||
|
13202
|
13202
13204-13010 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.25,U/S 0.25 |
13204-13010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13204-13040 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.25,U/S 0.25 |
13204-13040 |
US $177.63 |
||
|
13202
|
13202
13205-13010 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.50,U/S 0.50 |
13205-13010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13205-13040 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.50,U/S 0.50 |
13205-13040 |
US $177.63 |
||
|
13202
|
13202
13206-13010 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.75,U/S 0.75 |
13206-13010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13206-13040 Bearing Set, Connecting Rod[07.1977 - 09.1979] 3KJ,4KJ..KM1# U/S 0.75,U/S 0.75 |
13206-13040 |
US $177.63 |
||
|
13265
|
13265
13265-29015
Bolt, Connecting Rod
[09.1972 - 09.1979] 3K#,4KJ..KM1# |
13265-29015 |
— | ||
| replacements | |||||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[09.1972 - 09.1979] 3K#,4KJ..KM1# |
13265-70020 |
from US $3.20 |
||
|
13265
|
13265
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[09.1972 - 09.1979] 3K#,4KJ..KM1# |
90170-09001 |
US $3.05 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[07.1972 - 09.1979] 3K#,4KJ..KM1# |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-29125 Flywheel Sub-Assy[08.1977 - 09.1979] 3KJ,4KJ..KM1# N=106 |
13405-29125 |
US $310.13 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1971 - 09.1979] 3K#,4KJ..KM1# L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
13405B
|
13405B
90913-01005 Bolt, Flywheel Setting[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90913-01005 |
US $2.06 |
||
|
13411
|
13411
13411-13010
Crankshaft
[02.1978 - 09.1979] 4KJ..KM11 |
13411-13010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-13903 Crankshaft[02.1978 - 09.1979] 4KJ..KM11 |
13411-13903 |
US $988.62 |
||
|
13411A
|
13411A
97123-06001 Bearing (For Input Shaft)[05.1971 - 09.1979] 3K#,4KJ..KM1# 6001 ZZ C3 |
97123-06001 |
US $8.12 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[05.1971 - 09.1979] 3K#,4KJ..KM1# |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13471-13010
Pulley, Crankshaft
[04.1977 - 09.1979] 3KJ,4KJ..KM1# |
13471-13010 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90280-05010 |
from US $1.74 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[02.1979 - 09.1979] 4KJ..KM11 |
90209-13003 |
US $2.80 |
||
|
13471B
|
13471B
90209-13059
Washer, Plate(For Crankshaft Pulley Set)
[05.1971 - 02.1979] 3K#,4KJ..KM1# |
90209-13059 |
— | ||
| replacement | |||||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[05.1971 - 02.1979] 3K#,4KJ..KM1# |
90209-13003 |
US $2.80 |
||
|
13471C
|
13471C
90105-12050
Bolt(For Crankshaft Pulley Set)
[12.1972 - 09.1979] 3K#,4KJ..KM1# |
90105-12050 |
— | ||
|
13521
|
13521
13521-22010
Gear Or Sprocket, Crankshaft Timing
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
13521-22010 |
— | ||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90280-05010 |
from US $1.74 |
||
