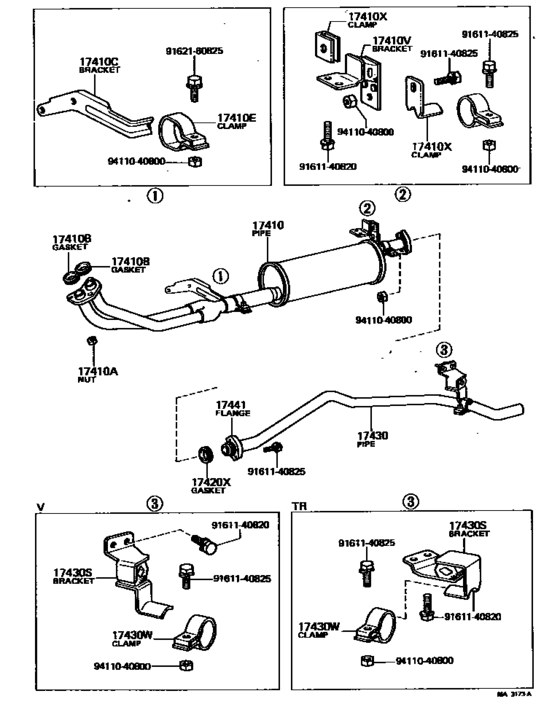

Exhaust Pipe ([02.1978 - 09.1979] (7802-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-24181 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [02.1978 - 09.1979] 4KJ..KM11 |
17410-24181 |
US $205.30 |
||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[11.1975 - 10.1978] 3KJ,4KJ..KM1# |
90170-10199 |
US $4.48 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[10.1978 - 09.1979] 4KJ..KM11 |
90179-10010 |
from US $1.35 |
||
|
17410B
|
17410B
90917-06006
Gasket, Exhaust Pipe
[02.1978 - 09.1979] 4KJ..KM11 |
90917-06006 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06037 Gasket, Exhaust Pipe[02.1978 - 09.1979] 4KJ..KM11 |
90917-06037 |
from US $3.06 |
||
|
17410C
|
17410C
17571-24100
Bracket, Exhaust Pipe Front (For Front)
[02.1978 - 09.1979] 4KJ..KM11 |
17571-24100 |
— | ||
|
17410E
|
17410E
90461-23974 Clamp No.1, Exhaust Pipe Front (For Front)[02.1978 - 09.1979] 4KJ..KM11 |
90461-23974 |
US $8.30 |
||
|
17410V
|
17410V
17561-24021 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [05.1971 - 09.1979] 3K#,4KJ..KM1# |
17561-24021 |
US $46.74 |
||
|
17410X
|
17410X
17572-24010
Clamp No.1, Exhaust Pipe Front (For Rear)
[05.1971 - 09.1979] 3K#,4KJ..KM1# ;L; TYPE |
17572-24010 |
— | ||
|
17410X
|
17410X
17573-24010
Clamp No.1, Exhaust Pipe Front (For Rear)
[05.1971 - 09.1979] 3K#,4KJ..KM1# ;U; TYPE |
17573-24010 |
— | ||
|
17420X
|
17420X
90917-06006
Gasket, Exhaust Pipe
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90917-06006 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06037 Gasket, Exhaust Pipe[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90917-06037 |
from US $3.06 |
||
|
17430
|
17430
17405-24010 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1971 - 09.1979] 3K#,4KJ..KM1# |
17405-24010 |
US $80.08 |
||
|
17430S
|
17430S
17562-24040
Bracket, Exhaust Tail Pipe (For Rear)
[05.1971 - 09.1979] 3K#,4KJ..KM1#..HRF,SRF |
17562-24040 |
— | ||
|
17430W
|
17430W
90461-23078 Clamp No.2, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR CENTER) [05.1971 - 09.1979] 3K#,4KJ..KM1# |
90461-23078 |
US $3.64 |
||
|
17441
|
17441
17442-22010 Flange, Exhaust PipeEXHAUST PIPE [05.1971 - 09.1979] 3K#,4KJ..KM1# |
17442-22010 |
US $12.52 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
