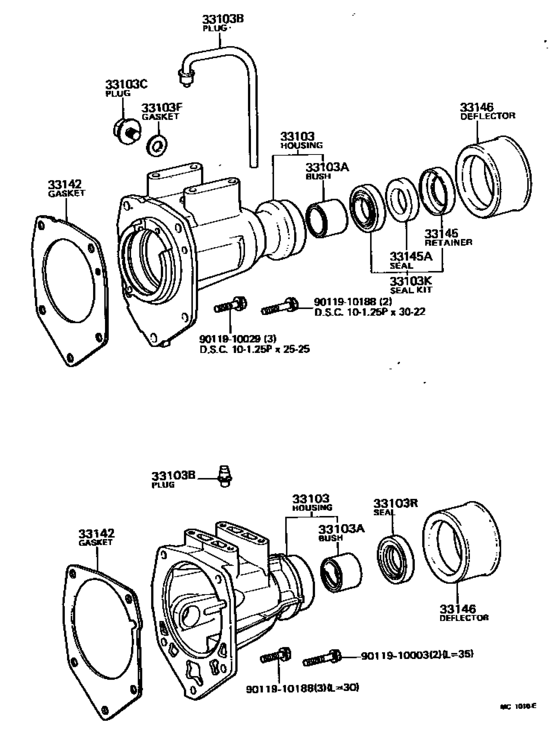

Extension Housing (Mtm) ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-26020 Housing Sub-Assy, Extension(Mtm)EXTENSION(MTM) [11.1971 - 08.1979] KM1# |
33103-26020 |
US $183.46 |
||
| replacements | |||||
|
33103
|
33103
33103-27021 Housing Sub-Assy, Extension(Mtm)[11.1971 - 08.1979] KM1# |
33103-27021 |
US $168.90 |
||
|
33103
|
33103
33143-27010 Baffle Sub-Assy, Extension Housing Oil[11.1971 - 08.1979] KM1# |
33143-27010 |
US $23.59 |
||
|
33103
|
33103
90930-03075 Plug, Breather[11.1971 - 08.1979] KM1# |
90930-03075 |
from US $3.88 |
||
|
33103
|
33103
90119-10188 Bolt(For Backing Plate To Steering Knuckle Setting)[11.1971 - 08.1979] KM1# |
90119-10188 |
US $2.04 |
||
|
33103
|
33103
91612-61045 Bolt(For Transaxle & Engine Setting)[11.1971 - 08.1979] KM1# |
91612-61045 |
from US $1.15 |
||
|
33103
|
33103
33103-27020 Housing Sub-Assy, Extension(Mtm)[08.1979 - 09.1979] KM11 |
33103-27020 |
US $180.54 |
||
| replacement | |||||
|
33103
|
33103
33103-27021 Housing Sub-Assy, Extension(Mtm)[08.1979 - 09.1979] KM11 |
33103-27021 |
US $168.90 |
||
|
33103A
|
33103A
90999-72023
Bush(For Manual Transmission Extension Housing)
[11.1974 - 09.1979] KM1# |
90999-72023 |
— | ||
| replacement | |||||
|
33103A
|
33103A
90999-73139
Bush (For Transfer Case)
[11.1974 - 09.1979] KM1# |
90999-73139 |
— | ||
|
33103B
|
33103B
90930-03053 Plug, Breather(For Transmission Extension Housing)BREATHER(FOR TRANSMISSION EXTENSION HOUSING) [05.1971 - 08.1979] KM1# |
90930-03053 |
US $9.90 |
||
|
33103B
|
33103B
90930-03075 Plug, Breather[08.1979 - 09.1979] KM11 |
90930-03075 |
from US $3.88 |
||
|
33103K
|
33103K
04332-30010
Seal Kit, Oil(For Manual Transmission Extension Housing)
[05.1971 - 08.1979] KM1# |
04332-30010 |
— | ||
| replacement | |||||
|
33103K
|
33103K
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[05.1971 - 08.1979] KM1# |
04332-30030 |
from US $13.08 |
||
|
33103R
|
33103R
90311-38043
Seal Kit, Oil(For Manual Transmission Extension Housing)
[08.1979 - 09.1979] KM11 |
90311-38043 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[08.1979 - 09.1979] KM11 |
90311-38032 |
from US $7.17 |
||
|
33142
|
33142
33142-26010
Gasket, Extension Housing(Mtm)
[11.1971 - 09.1979] KM1# |
33142-26010 |
— | ||
|
33145
|
33145
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[05.1971 - 08.1979] KM1# |
33145-30010 |
from US $2.30 |
||
|
33145A
|
33145A
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[05.1971 - 08.1979] KM1# |
90303-38010 |
from US $1.91 |
||
|
33146
|
33146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[05.1971 - 09.1979] KM1# |
33146-30010 |
— | ||
| replacement | |||||
|
33146
|
33146
33146-30020 Deflector, Extension Housing Dust(Mtm)[05.1971 - 09.1979] KM1# |
33146-30020 |
from US $17.74 |
||
|
9011910003
|
9011910003
90119-10003 Bolt(for Transaxle Case & Engine Setting) |
90119-10003 |
US $2.91 |
||
| replacement | |||||
|
9011910003
|
9011910003
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9011910029
|
9011910029
90119-10029 Bolt (For Control Shaft Cover) |
90119-10029 |
US $2.18 |
||
| replacement | |||||
|
9011910029
|
9011910029
90119-10288 Bolt (For Control Shaft Cover) |
90119-10288 |
US $0.70 |
||
|
9011910188
|
9011910188
90119-10188 Bolt(For Backing Plate To Steering Knuckle Setting) |
90119-10188 |
US $2.04 |
||
