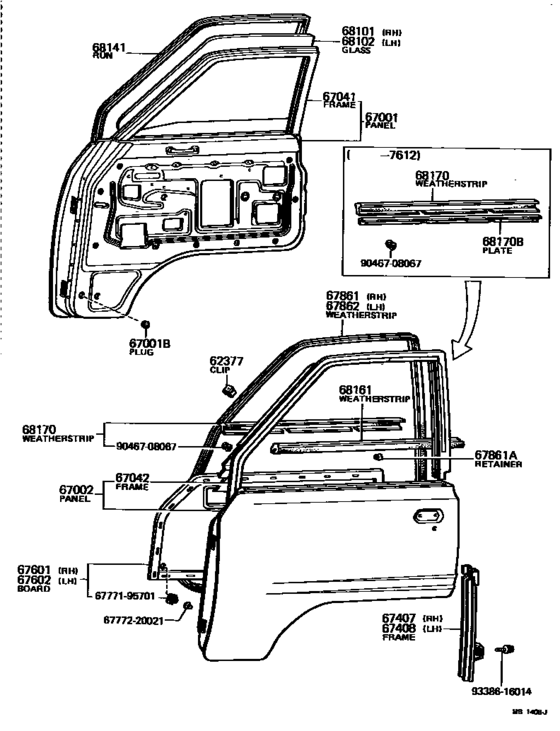

Front Door Panel & Glass ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62377
|
62377
62377-95D00
Clip, Door Window Glass
[09.1978 - 09.1979] KM11 |
62377-95D00 |
— | ||
|
67001
|
67001
67001-95700 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [05.1971 - 06.1978] KM1# |
67001-95700 |
US $687.23 |
||
| replacement | |||||
|
67001
|
67001
67001-95D01
Panel Sub-Assy, Front Door, Rh
[05.1971 - 06.1978] KM1# |
67001-95D01 |
— | ||
|
67001
|
67001
67001-95701 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [06.1978 - 08.1978] KM11 |
67001-95701 |
US $757.12 |
||
| replacement | |||||
|
67001
|
67001
67001-95D01
Panel Sub-Assy, Front Door, Rh
[06.1978 - 08.1978] KM11 |
67001-95D01 |
— | ||
|
67001
|
67001
67001-95D01
Panel Sub-Assy, Front Door, Rh
[08.1978 - 09.1979] KM11 |
67001-95D01 |
— | ||
|
67001B
|
67001B
90950-01076 Plug, Hole(For Front Door Panel)[05.1971 - 09.1979] KM1# OD=25 |
90950-01076 |
US $3.20 |
||
| replacement | |||||
|
67001B
|
67001B
90950-01076-11
Plug, Hole(For Room Partition Trim Moulding)
[05.1971 - 09.1979] KM1# OD=25 |
90950-01076-11 |
— | ||
|
67002
|
67002
67002-95701 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [11.1971 - 06.1978] KM1# |
67002-95701 |
US $757.12 |
||
| replacement | |||||
|
67002
|
67002
67002-95D01
Panel Sub-Assy, Front Door, Lh
[11.1971 - 06.1978] KM1# |
67002-95D01 |
— | ||
|
67002
|
67002
67002-95702 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [06.1978 - 08.1978] KM11 |
67002-95702 |
US $757.12 |
||
| replacement | |||||
|
67002
|
67002
67002-95D01
Panel Sub-Assy, Front Door, Lh
[06.1978 - 08.1978] KM11 |
67002-95D01 |
— | ||
|
67002
|
67002
67002-95D01
Panel Sub-Assy, Front Door, Lh
[08.1978 - 09.1979] KM11 |
67002-95D01 |
— | ||
|
67041
|
67041
67410-95700
Frame Sub-Assy, Front Door Window, Rh
[05.1971 - 09.1979] KM1# |
67410-95700 |
— | ||
|
67042
|
67042
67420-95700
Frame Sub-Assy, Front Door Window, Lh
[05.1971 - 09.1979] KM1# |
67420-95700 |
— | ||
|
67407
|
67407
67407-95700
Frame Sub-Assy, Front Door, Rear Lower Rh
[05.1971 - 09.1979] KM1# |
67407-95700 |
— | ||
|
67408
|
67408
67408-95700
Frame Sub-Assy, Front Door, Rear Lower Lh
[05.1971 - 09.1979] KM1# |
67408-95700 |
— | ||
|
67601
|
67601
67610-95700-01
Board Sub-Assy, Front Door Trim, Rh
[10.1976 - 09.1979] KM1# BLACK,BLACK |
67610-95700-01 |
— | ||
|
67602
|
67602
67620-95700-01 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [10.1976 - 09.1979] KM1# BLACK,BLACK |
67620-95700-01 |
US $58.39 |
||
| replacement | |||||
|
67602
|
67602
67620-95700-C0
Board Sub-Assy, Front Door Trim, Lh
[10.1976 - 09.1979] KM1# BLACK,BLACK |
67620-95700-C0 |
— | ||
|
67861
|
67861
67861-95700
Weatherstrip, Front Door, Rh
[05.1971 - 09.1979] KM1# |
67861-95700 |
— | ||
|
67861A
|
67861A
68174-95701 Retainer(For Front Door Weatherstrip)[05.1971 - 09.1979] KM1# |
68174-95701 |
US $2.62 |
||
|
67862
|
67862
67862-95700 Weatherstrip, Front Door, LhFRONT DOOR, LH [05.1971 - 09.1979] KM1# |
67862-95700 |
US $87.36 |
||
|
68101
|
68101
68111-95700
Glass Sub-Assy, Front Door, Rh
[05.1971 - 09.1979] KM1#..TR,V TP.T=4.0 |
68111-95700 |
— | ||
| replacement | |||||
|
68101
|
68101
68111-95701
Glass Sub-Assy, Front Door, Rh
[05.1971 - 09.1979] KM1#..TR,V TP.T=4.0 |
68111-95701 |
— | ||
|
68102
|
68102
68112-95700
Glass Sub-Assy, Front Door, Lh
[05.1971 - 09.1979] KM1#..TR,V TP.T=4.0 |
68112-95700 |
— | ||
| replacement | |||||
|
68102
|
68102
68112-95701
Glass Sub-Assy, Front Door, Lh
[05.1971 - 09.1979] KM1#..TR,V TP.T=4.0 |
68112-95701 |
— | ||
|
68141
|
68141
68141-95701 Run, Front Door GlassFRONT DOOR GLASS [07.1973 - 02.1979] KM1# FOR GLASS T=4.0 |
68141-95701 |
US $53.73 |
||
| replacement | |||||
|
68141
|
68141
68141-95702
Run, Front Door Glass
[07.1973 - 02.1979] KM1# FOR GLASS T=4.0 |
68141-95702 |
— | ||
|
68141
|
68141
68141-95702
Run, Front Door Glass
[02.1979 - 09.1979] KM11 FOR GLASS T=4.0 |
68141-95702 |
— | ||
|
68161
|
68161
68171-95701 Weatherstrip, Front Door Glass, OuterFRONT DOOR GLASS, OUTER [05.1971 - 04.1979] KM1# RH. |
68171-95701 |
US $33.63 |
||
| replacement | |||||
|
68161
|
68161
68171-95D01 Weatherstrip, Front Door Glass, Outer[05.1971 - 04.1979] KM1# RH. |
68171-95D01 |
US $33.63 |
||
|
68161
|
68161
68171-95D00 Weatherstrip, Front Door Glass, OuterFRONT DOOR GLASS, OUTER [04.1979 - 09.1979] KM11 RH. |
68171-95D00 |
US $36.40 |
||
| replacement | |||||
|
68161
|
68161
68171-95D01 Weatherstrip, Front Door Glass, Outer[04.1979 - 09.1979] KM11 RH. |
68171-95D01 |
US $33.63 |
||
|
68161
|
68161
68172-95701 Weatherstrip, Front Door Glass, OuterFRONT DOOR GLASS, OUTER [05.1971 - 04.1979] KM1# LH. |
68172-95701 |
US $33.63 |
||
| replacement | |||||
|
68161
|
68161
68172-95D01 Weatherstrip, Front Door Glass, Outer[05.1971 - 04.1979] KM1# LH. |
68172-95D01 |
US $33.63 |
||
|
68161
|
68161
68172-95D00 Weatherstrip, Front Door Glass, OuterFRONT DOOR GLASS, OUTER [04.1979 - 09.1979] KM11 LH. |
68172-95D00 |
US $36.40 |
||
| replacement | |||||
|
68161
|
68161
68172-95D01 Weatherstrip, Front Door Glass, Outer[04.1979 - 09.1979] KM11 LH. |
68172-95D01 |
US $33.63 |
||
|
68170
|
68170
68150-95700 Weatherstrip Assy, Front Door Glass, InnerFRONT DOOR GLASS, INNER [12.1976 - 04.1979] KM1# RH. |
68150-95700 |
US $24.46 |
||
| replacement | |||||
|
68170
|
68170
68150-95D00 Weatherstrip Assy, Front Door Glass, InnerFRONT DOOR GLASS, INNER [12.1976 - 04.1979] KM1# RH. |
68150-95D00 |
US $24.46 |
||
|
68170
|
68170
68150-95D00 Weatherstrip Assy, Front Door Glass, InnerFRONT DOOR GLASS, INNER [04.1979 - 09.1979] KM11 RH. |
68150-95D00 |
US $24.46 |
||
|
68170
|
68170
68160-95700 Weatherstrip Assy, Front Door Glass, InnerFRONT DOOR GLASS, INNER [12.1976 - 04.1979] KM1# LH. |
68160-95700 |
US $22.86 |
||
| replacement | |||||
|
68170
|
68170
68160-95D00
Weatherstrip Assy, Front Door Glass, Inner
[12.1976 - 04.1979] KM1# LH. |
68160-95D00 |
— | ||
|
68170
|
68170
68160-95D00
Weatherstrip Assy, Front Door Glass, Inner
[04.1979 - 09.1979] KM11 LH. |
68160-95D00 |
— | ||
|
6777195701
|
6777195701
67771-95701 Retainer(For Front Door Trim Board) |
67771-95701 |
US $3.20 |
||
| replacement | |||||
|
6777195701
|
6777195701
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.33 |
||
|
6777220021
|
6777220021
67772-20021 Cap, Front Door Trim Retainer |
67772-20021 |
from US $0.96 |
||
|
9046708067
|
9046708067
90467-08067 Clip, Spring, No.1SPRING, NO.1 |
90467-08067 |
US $2.91 |
||
|
9338616014
|
9338616014
93386-16014 New Genuine Part |
93386-16014 |
US $1.16 |
||
