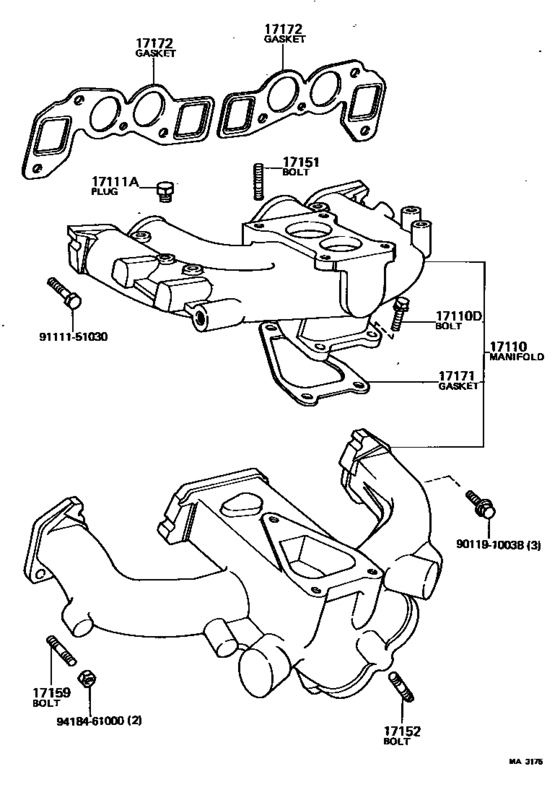

Manifold ([02.1978 - 09.1979] (7802-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110
|
17110
17110-13021
Manifold Assy
[02.1978 - 09.1979] 4KJ..KM11 |
17110-13021 |
— | ||
|
17110D
|
17110D
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
91611-40820 |
— | ||
|
17111A
|
17111A
90345-51005
Plug, W/head Taper Screw, No.1
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90345-51005 |
— | ||
| replacement | |||||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90345-51025 |
US $3.76 |
||
|
17151
|
17151
90116-08010 Bolt, Stud(For Manifold To Carburetor)[05.1971 - 09.1979] 3K#,4KJ..KM1# L=39,S=13&13 |
90116-08010 |
US $2.75 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[04.1977 - 09.1979] 3KJ,4KJ..KM1# L=41,S=14&21 |
90116-10017 |
from US $2.26 |
||
|
17159
|
17159
92122-41028
Bolt, Stud(For Manifold To Cylinder Head)
[07.1977 - 09.1979] 3KJ,4KJ..KM1# |
92122-41028 |
— | ||
|
17171
|
17171
17171-24010
Gasket, Intake To Exhaust Manifold
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
17171-24010 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-13050 Gasket, Intake To Exhaust Manifold[05.1971 - 09.1979] 3K#,4KJ..KM1# |
17171-13050 |
from US $4.99 |
||
|
17172
|
17172
17172-24011
Gasket, Manifold To Cylinder Head
[11.1975 - 09.1979] 3KJ,4KJ..KM1# |
17172-24011 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-13030 Gasket, Manifold To Cylinder Head[11.1975 - 09.1979] 3KJ,4KJ..KM1# |
17172-13030 |
US $16.84 |
||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9111151030
|
9111151030
91111-51030 New Genuine Part |
91111-51030 |
US $2.33 |
||
|
9418461000
|
9418461000
94184-61000 Nut(For Rear Spring) |
94184-61000 |
US $2.87 |
||
| replacement | |||||
|
9418461000
|
9418461000
48284-0W060 Nut, Front Spring Center Bolt |
48284-0W060 |
from US $0.90 |
||
