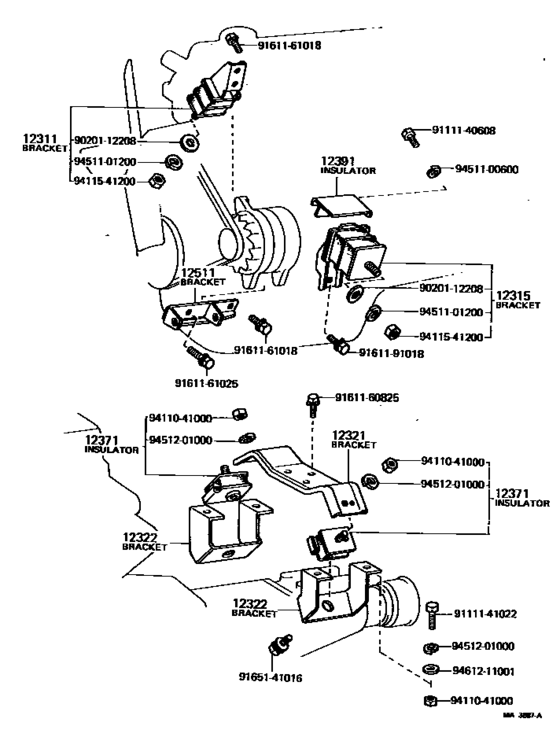

Mounting ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12301-29018 Bracket, Engine Mounting, Front No.1 RhENGINE MOUNTING, FRONT NO.1 RH [05.1974 - 09.1979] 3K#,4KJ..KM1# |
12301-29018 |
US $38.44 |
||
|
12315
|
12315
12302-29018 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [05.1977 - 09.1979] 3KJ,4KJ..KM1# |
12302-29018 |
US $43.53 |
||
| replacements | |||||
|
12315
|
12315
94130-61200 Nut[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
94130-61200 |
from US $0.98 |
||
|
12315
|
12315
12302-22023 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [05.1977 - 09.1979] 3KJ,4KJ..KM1# |
12302-22023 |
US $43.68 |
||
|
12315
|
12315
90201-12208 WASHER[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
90201-12208 |
from US $1.29 |
||
|
12315
|
12315
94511-01200 WASHER[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
94511-01200 |
from US $0.60 |
||
|
12321
|
12321
12321-24010 Bracket, Engine Mounting, Rear, No.1ENGINE MOUNTING, REAR, NO.1 [05.1971 - 09.1979] 3K#,4KJ..KM1# |
12321-24010 |
US $35.82 |
||
| replacement | |||||
|
12321
|
12321
12321-24011
Bracket, Engine Mounting, Rear, No.1
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
12321-24011 |
— | ||
|
12322
|
12322
12322-24011
Bracket, Engine Mounting, Rear No.2
[08.1977 - 09.1979] 3KJ,4KJ..KM1# RH |
12322-24011 |
— | ||
|
12322
|
12322
12326-24011
Bracket, Engine Mounting, Rear No.2
[08.1977 - 09.1979] 3KJ,4KJ..KM1# LH |
12326-24011 |
— | ||
|
12371
|
12371
12371-49015
Insulator, Engine Mounting, Rear No.1
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
12371-49015 |
— | ||
|
12391
|
12391
12391-22010 Insulator, Engine Mounting Front, Heat, RhENGINE MOUNTING FRONT, HEAT, RH [05.1971 - 09.1979] 3K#,4KJ..KM1# |
12391-22010 |
US $5.39 |
||
|
12511
|
12511
12511-22015 Bracket, Alternator, No.1ALTERNATOR, NO.1 [10.1976 - 09.1979] 3KJ,4KJ..KM1# |
12511-22015 |
US $63.04 |
||
| replacements | |||||
|
12511
|
12511
91612-61025 Bolt (For Control Shaft Cover)[10.1976 - 09.1979] 3KJ,4KJ..KM1# |
91612-61025 |
from US $0.96 |
||
|
12511
|
12511
12511-22016 Bracket, Alternator, No.1ALTERNATOR, NO.1 [10.1976 - 09.1979] 3KJ,4KJ..KM1# |
12511-22016 |
US $57.66 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.29 |
||
|
9111140608
|
9111140608
91111-40608
New Genuine Part
|
91111-40608 |
— | ||
| replacement | |||||
|
9111140608
|
9111140608
91111-50608 New Genuine Part |
91111-50608 |
US $2.18 |
||
|
9111141022
|
9111141022
91111-41022 New Genuine Part |
91111-41022 |
US $2.91 |
||
| replacement | |||||
|
9111141022
|
9111141022
91111-51022 New Genuine Part |
91111-51022 |
US $2.91 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9161191018
|
9161191018
91611-91018
New Genuine Part
|
91611-91018 |
— | ||
|
9165141016
|
9165141016
91651-41016 Bolt(For Transaxle & Engine Setting) |
91651-41016 |
US $2.80 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
