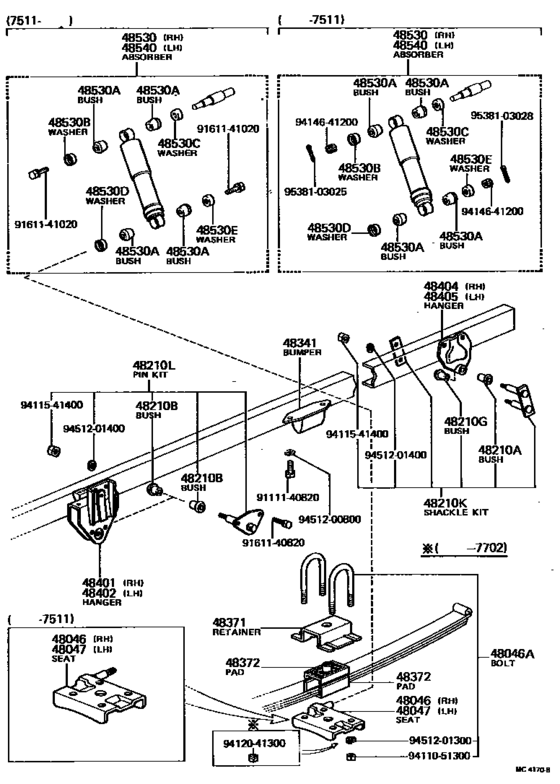

Rear Spring & Shock Absorber ([05.1971 - 09.1979] (7105-7909)HRF,SRF) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-26023 Seat Sub-Assy, Spring U Bolt, Rh[11.1975 - 09.1979] KM1#..V |
48046-26023 |
US $49.80 |
||
|
48046A
|
48046A
90118-13079 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [02.1977 - 09.1979] KM1#..V |
90118-13079 |
US $14.85 |
||
| replacements | |||||
|
48046A
|
48046A
90117-13164 New Genuine Part[02.1977 - 09.1979] KM1#..V |
90117-13164 |
US $15.14 |
||
|
48046A
|
48046A
94110-51300
Nut(For Rear Spring U Bolt)
[02.1977 - 09.1979] KM1#..V |
94110-51300 |
— | ||
|
48046A
|
48046A
94512-01300 Washer(For Rear Spring U Bolt)[02.1977 - 09.1979] KM1#..V |
94512-01300 |
from US $0.60 |
||
|
48047
|
48047
48047-26023 Seat Sub-Assy, Spring U Bolt, Lh[11.1975 - 09.1979] KM1#..V |
48047-26023 |
US $45.57 |
||
|
48210A
|
48210A
90385-18046 Bush(For Front Spring Shackle)[05.1971 - 09.1979] KM1# |
90385-18046 |
from US $2.55 |
||
|
48210B
|
48210B
90385-18046 Bush(For Front Spring Shackle)[05.1971 - 09.1979] KM1# |
90385-18046 |
from US $2.55 |
||
|
48210G
|
48210G
90385-18046 Bush(For Front Spring Shackle)[05.1971 - 09.1979] KM1# |
90385-18046 |
from US $2.55 |
||
|
48210K
|
48210K
04483-26010
Shackle Kit, Rear Spring
[05.1971 - 09.1979] KM1# |
04483-26010 |
— | ||
| replacement | |||||
|
48210K
|
48210K
04483-35040 Shackle Kit, Rear Spring[05.1971 - 09.1979] KM1# |
04483-35040 |
from US $55.44 |
||
|
48210L
|
48210L
04484-27010
Pin Kit, Rear Spring
[05.1971 - 09.1979] KM1# |
04484-27010 |
— | ||
| replacement | |||||
|
48210L
|
48210L
04482-35030 Pin Kit, Front Spring[05.1971 - 09.1979] KM1# |
04482-35030 |
US $32.26 |
||
|
48341
|
48341
48341-27010 Bumper, Rear SpringREAR SPRING [05.1971 - 09.1979] KM1# |
48341-27010 |
US $13.54 |
||
|
48371
|
48371
48371-27020
Retainer, Rear Spring Pad
[11.1975 - 09.1979] KM1#..V |
48371-27020 |
— | ||
|
48372
|
48372
48372-27020 Pad, Rear SpringREAR SPRING [05.1971 - 09.1979] KM1#..HRF,SRF |
48372-27020 |
US $10.77 |
||
| replacement | |||||
|
48372
|
48372
48372-26030 Pad, Rear Spring[05.1971 - 09.1979] KM1#..HRF,SRF |
48372-26030 |
US $12.75 |
||
|
48401
|
48401
57701-95700
Bracket Sub-Assy, Rear Spring, Front Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
57701-95700 |
— | ||
|
48402
|
48402
57701-95700
Bracket Sub-Assy, Rear Spring, Front Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
57701-95700 |
— | ||
|
48404
|
48404
48416-95700
Bracket Sub-Assy, Rear Spring, Rear Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
48416-95700 |
— | ||
|
48405
|
48405
48416-95700
Bracket Sub-Assy, Rear Spring, Rear Rh
[05.1971 - 09.1979] KM1#..HRF,SRF |
48416-95700 |
— | ||
|
48530
|
48530
48531-29166 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [11.1975 - 09.1979] KM1# |
48531-29166 |
US $94.64 |
||
| replacement | |||||
|
48530
|
48530
48531-29168 Absorber Assy, Shock, Rear Rh[11.1975 - 09.1979] KM1# |
48531-29168 |
US $94.64 |
||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[05.1971 - 09.1979] KM1# |
90385-16007 |
from US $1.81 |
||
|
48530B
|
48530B
90948-03012 Washer, Front Shock Absorber Cushion, No.1[11.1975 - 09.1979] KM1# OD=34 ID=11 T=4.3 |
90948-03012 |
US $1.79 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1971 - 09.1979] KM1# OD=34 ID=17 T=3.7 |
90948-03004 |
from US $1.35 |
||
|
48530D
|
48530D
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1971 - 09.1979] KM1# OD=34 ID=17 T=3.7 |
90948-03004 |
from US $1.35 |
||
|
48530E
|
48530E
90948-03012 Washer, Front Shock Absorber Cushion, No.1[11.1975 - 09.1979] KM1# OD=34 ID=11 T=4.3 |
90948-03012 |
US $1.79 |
||
|
48540
|
48540
48531-29166 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [11.1975 - 09.1979] KM1# |
48531-29166 |
US $94.64 |
||
| replacement | |||||
|
48540
|
48540
48531-29168 Absorber Assy, Shock, Rear Rh[11.1975 - 09.1979] KM1# |
48531-29168 |
US $94.64 |
||
|
9111140820
|
9111140820
91111-40820
New Genuine Part
|
91111-40820 |
— | ||
| replacement | |||||
|
9111140820
|
9111140820
91111-50820 New Genuine Part |
91111-50820 |
US $2.20 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9411051300
|
9411051300
94110-51300
Nut(For Rear Spring U Bolt)
|
94110-51300 |
— | ||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $1.22 |
||
|
9412041300
|
9412041300
94120-41300 Nut, Steering Wheel SetSTEERING WHEEL SET |
94120-41300 |
US $2.04 |
||
|
9414641200
|
9414641200
94146-41200 New Genuine Part |
94146-41200 |
US $4.89 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.60 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
|
9538103028
|
9538103028
95381-03028 PIN |
95381-03028 |
US $1.65 |
||
