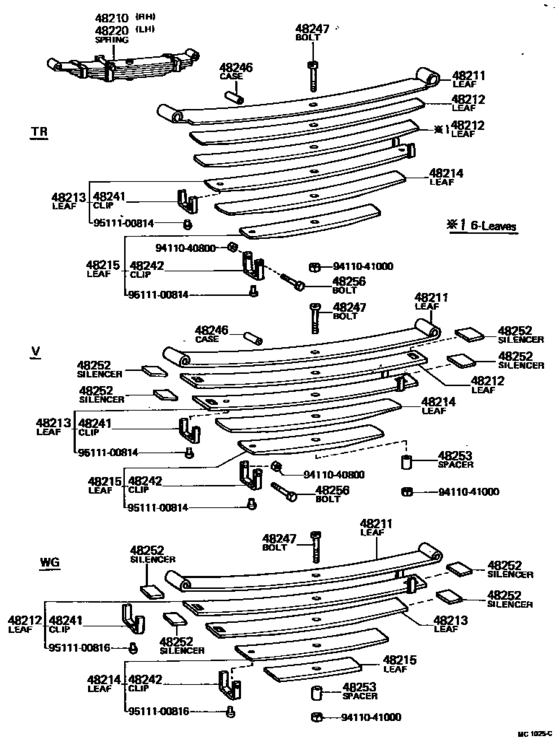

Rear Spring & Shock Absorber ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-27020
Spring Assy, Rear Rh
[05.1971 - 09.1979] KM1#..V |
48210-27020 |
— | ||
|
48211
|
48211
48211-27021
Leaf, Rear Spring, No.1
[05.1971 - 09.1979] KM1#..V |
48211-27021 |
— | ||
|
48212
|
48212
48212-27021
Leaf, Rear Spring, No.2
[05.1971 - 09.1979] KM1#..V |
48212-27021 |
— | ||
|
48213
|
48213
48202-27021
Leaf, Rear Spring, No.3
[05.1971 - 09.1979] KM1#..V |
48202-27021 |
— | ||
|
48214
|
48214
48214-27021
Leaf, Rear Spring, No.4
[05.1971 - 09.1979] KM1#..V |
48214-27021 |
— | ||
|
48215
|
48215
48203-27021
Leaf, Rear Spring, No.5
[05.1971 - 09.1979] KM1#..V |
48203-27021 |
— | ||
|
48220
|
48220
48210-27020
Spring Assy, Rear Rh
[05.1971 - 09.1979] KM1#..V |
48210-27020 |
— | ||
|
48241
|
48241
48241-27023
Clip, Rear Spring, No.1
[04.1976 - 09.1979] KM1#..V |
48241-27023 |
— | ||
|
48242
|
48242
48242-27021
Clip, Rear Spring, No.2
[05.1971 - 09.1979] KM1#..V |
48242-27021 |
— | ||
|
48246
|
48246
48246-26020 Case, Rear Spring Clip Bolt[11.1972 - 09.1979] KM1#..V |
48246-26020 |
US $2.15 |
||
|
48247
|
48247
48247-26021
Bolt, Rear Spring, Center
[05.1971 - 09.1979] KM1#..V |
48247-26021 |
— | ||
|
48252
|
48252
48252-27020
Silencer, Rear Spring
[08.1975 - 09.1979] KM1#..V |
48252-27020 |
— | ||
|
48253
|
48253
48253-27020
Spacer, Rear Spring, No.1
[05.1971 - 09.1979] KM1#..HRF,SRF |
48253-27020 |
— | ||
|
48256
|
48256
48256-25050 Bolt, Hexagon(For Rear Spring Clip)[11.1972 - 09.1979] KM1#..TR,V |
48256-25050 |
from US $3.41 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9511100814
|
9511100814
95111-00814
New Genuine Part
|
95111-00814 |
— | ||
|
9511100816
|
9511100816
95111-00816 New Genuine Part |
95111-00816 |
US $0.87 |
||
