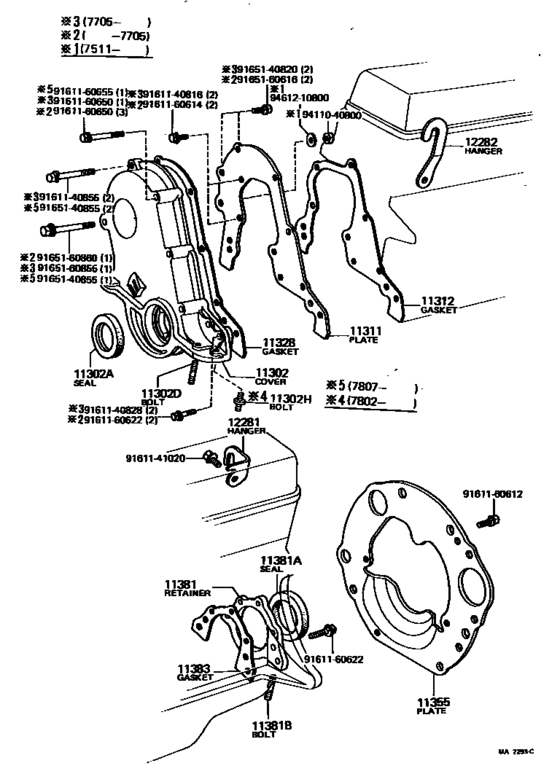

Timing Gear Cover & Rear End Plate ([05.1971 - 09.1979] (7105-7909)) Diagram Toyota LITEACE
- Year
- 1978 - 1979
- Sales region
- Europe
- Frame
- KM11
- body
- V
- ENGINE
- 4KJ
- Model
- LITEACE
- From
- 02.1978
- To
- 09.1979
- Vehicle Model
- LITEACE
- Driver's Position
- HRF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11321-13010 Cover Sub-Assy, Timing Chain Or BeltTIMING CHAIN OR BELT [05.1977 - 02.1979] 3KJ,4KJ..KM1# |
11321-13010 |
US $81.54 |
||
| replacements | |||||
|
11302
|
11302
90311-38086 Seal, Oil(For Timing Chain Or Belt Cover)[05.1977 - 02.1979] 3KJ,4KJ..KM1# |
90311-38086 |
US $8.42 |
||
|
11302
|
11302
11321-13041
Cover Sub-Assy, Timing Chain Or Belt
[05.1977 - 02.1979] 3KJ,4KJ..KM1# |
11321-13041 |
— | ||
|
11302
|
11302
11321-13030 Cover Sub-Assy, Timing Chain Or BeltTIMING CHAIN OR BELT [02.1979 - 09.1979] 4KJ..KM11 |
11321-13030 |
US $85.90 |
||
| replacements | |||||
|
11302
|
11302
90311-38086 Seal, Oil(For Timing Chain Or Belt Cover)[02.1979 - 09.1979] 4KJ..KM11 |
90311-38086 |
US $8.42 |
||
|
11302
|
11302
11321-13041
Cover Sub-Assy, Timing Chain Or Belt
[02.1979 - 09.1979] 4KJ..KM11 |
11321-13041 |
— | ||
|
11302A
|
11302A
90311-38013 Seal, Oil(For Camshaft Housing)[02.1978 - 09.1979] 4KJ..KM11 HTC 38.5 58 11 |
90311-38013 |
US $7.35 |
||
|
11302D
|
11302D
90116-06012 Bolt, Stud(For Timing Gear Cover)[07.1978 - 09.1979] 4KJ..KM11 L=23,S=9 |
90116-06012 |
US $2.62 |
||
|
11302D
|
11302D
92132-60614 Bolt, Stud(For Fuel Pipe)[02.1978 - 07.1978] 4KJ..KM11 L=26,S=12&12 |
92132-60614 |
US $2.62 |
||
|
11302H
|
11302H
90116-06006 Bolt, Stud(For Timing Gear Cover)[02.1978 - 09.1979] 4KJ..KM11 L=26.4 S=12&12 |
90116-06006 |
US $2.62 |
||
|
11311
|
11311
11311-13010 Plate, Front End[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11311-13010 |
US $22.57 |
||
|
11312
|
11312
11312-13010 Gasket, Front End PlateFRONT END PLATE [05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11312-13010 |
US $7.13 |
||
| replacement | |||||
|
11312
|
11312
11312-13050 Gasket, Front End Plate[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11312-13050 |
US $6.47 |
||
|
11328
|
11328
11328-13010 Gasket, Timing Gear Or Chain CoverTIMING GEAR OR CHAIN COVER [05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11328-13010 |
US $6.99 |
||
| replacement | |||||
|
11328
|
11328
11328-13030 Gasket, Timing Gear Or Chain Cover[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11328-13030 |
US $8.60 |
||
|
11355
|
11355
11355-13010
Plate, Rear End
[08.1977 - 09.1979] 3KJ,4KJ..KM1# |
11355-13010 |
— | ||
| replacement | |||||
|
11355
|
11355
11355-13012
Plate, Rear End
[08.1977 - 09.1979] 3KJ,4KJ..KM1# |
11355-13012 |
— | ||
|
11381
|
11381
11381-13010 Retainer, Engine Rear Oil Seal[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11381-13010 |
US $68.14 |
||
|
11381B
|
11381B
90116-06035 Bolt, Stud(For Timing Gear Cover)[05.1971 - 09.1979] 3K#,4KJ..KM1# L=23,S=12&9 |
90116-06035 |
US $2.91 |
||
|
11383
|
11383
11383-13010 Gasket, Engine Rear Oil Seal Retainer[05.1977 - 09.1979] 3KJ,4KJ..KM1# |
11383-13010 |
US $6.45 |
||
|
12281
|
12281
12281-13011 Hanger, Engine, No.1ENGINE, NO.1 [08.1977 - 09.1979] 3KJ,4KJ..KM1# |
12281-13011 |
US $18.64 |
||
| replacement | |||||
|
12281
|
12281
12281-13030 Hanger, Engine, No.1[08.1977 - 09.1979] 3KJ,4KJ..KM1# |
12281-13030 |
US $18.78 |
||
|
12282
|
12282
12282-22012
Hanger, Engine, No.2
[03.1976 - 09.1979] 3KJ,4KJ..KM1# |
12282-22012 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.79 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9161160650
|
9161160650
91611-60650 BOLTWWASHER |
91611-60650 |
US $1.46 |
||
|
9161160655
|
9161160655
91611-60655
New Genuine Part
|
91611-60655 |
— | ||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9165140855
|
9165140855
91651-40855 New Genuine Part |
91651-40855 |
US $1.05 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160855
|
9165160855
91651-60855 BOLT |
91651-60855 |
US $4.12 |
||
|
9165160860
|
9165160860
91651-60860 New Genuine Part |
91651-60860 |
US $0.79 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
