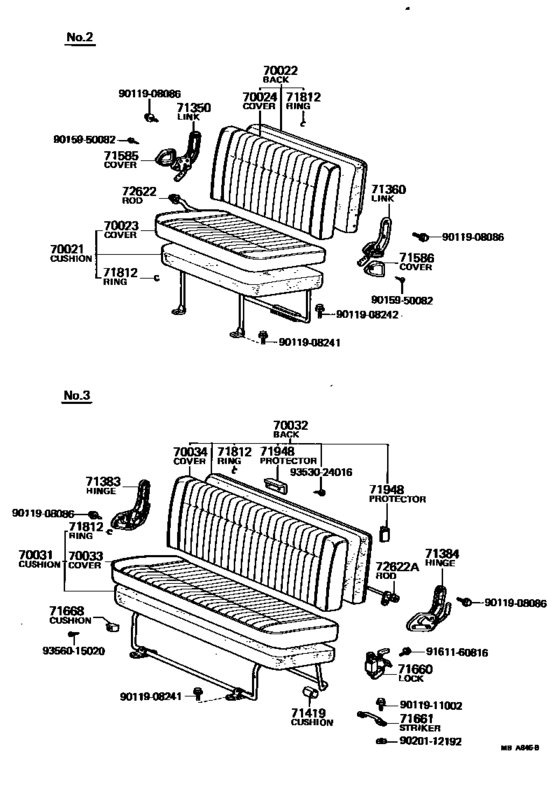

Seat & Seat Track ([10.1979 - 01.1981] (7910-8101)07S) Diagram Toyota LITEACE
- Year
- 1979 - 1981
- Sales region
- Europe
- Frame
- KM20
- grade
- STD
- body
- WG
- Roof
- SRF
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LITEACE
- From
- 10.1979
- To
- 08.1981
- Gear Shift Type
- 4H
- Seating Capacity
- 07S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
70021
|
70021
71510-95705
Cushion Assy, No.2 Seat
[10.1979 - 01.1981] KM20..07S VL |
71510-95705 |
— | ||
|
70021
|
70021
71510-95709
Cushion Assy, No.2 Seat
[10.1979 - 01.1981] KM20..07S FB |
71510-95709 |
— | ||
|
70021
|
70021
71510-95716
Cushion Assy, No.2 Seat
[01.1981 - 10.1982] KM20..WG..STD VL |
71510-95716 |
— | ||
|
70021
|
70021
71510-95717
Cushion Assy, No.2 Seat
[01.1981 - 10.1982] KM20..WG..STD FB |
71510-95717 |
— | ||
|
70022
|
70022
71550-95702
Back Assy, No.2 Seat
[10.1979 - 01.1981] KM20..07S VL |
71550-95702 |
— | ||
|
70022
|
70022
71550-95706
Back Assy, No.2 Seat
[10.1979 - 01.1981] KM20..07S FB |
71550-95706 |
— | ||
|
70022
|
70022
71550-95714
Back Assy, No.2 Seat
[01.1981 - 10.1982] KM20..WG..STD VL |
71550-95714 |
— | ||
|
70022
|
70022
71550-95715
Back Assy, No.2 Seat
[01.1981 - 10.1982] KM20..WG..STD FB |
71550-95715 |
— | ||
|
70023
|
70023
71508-95701
Cover Assy, No.2 Seat Cushion
[10.1979 - 01.1981] KM20..07S VL |
71508-95701 |
— | ||
|
70023
|
70023
71508-95705
Cover Assy, No.2 Seat Cushion
[10.1979 - 01.1981] KM20..07S FB |
71508-95705 |
— | ||
|
70023
|
70023
71508-95712
Cover Assy, No.2 Seat Cushion
[01.1981 - 10.1982] KM20..WG..STD VL |
71508-95712 |
— | ||
|
70023
|
70023
71508-95713
Cover Assy, No.2 Seat Cushion
[01.1981 - 10.1982] KM20..WG..STD FB |
71508-95713 |
— | ||
|
70024
|
70024
71509-95701
Cover Assy, No.2 Seat Back
[10.1979 - 01.1981] KM20..07S VL |
71509-95701 |
— | ||
|
70024
|
70024
71509-95705
Cover Assy, No.2 Seat Back
[10.1979 - 01.1981] KM20..07S FB |
71509-95705 |
— | ||
|
70024
|
70024
71509-95712
Cover Assy, No.2 Seat Back
[01.1981 - 10.1982] KM20..WG..STD VL |
71509-95712 |
— | ||
|
70024
|
70024
71509-95713
Cover Assy, No.2 Seat Back
[01.1981 - 10.1982] KM20..WG..STD FB |
71509-95713 |
— | ||
|
70031
|
70031
71610-95701
Cushion Assy, No.3 Seat
[10.1979 - 01.1981] KM20..07S VL |
71610-95701 |
— | ||
|
70031
|
70031
71610-95705
Cushion Assy, No.3 Seat
[10.1979 - 01.1981] KM20..07S FB |
71610-95705 |
— | ||
|
70031
|
70031
71610-95709-06
Cushion Assy, No.3 Seat
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71610-95709-06 |
— | ||
|
70031
|
70031
71610-95712
Cushion Assy, No.3 Seat
[01.1981 - 10.1982] KM20..WG..STD VL |
71610-95712 |
— | ||
|
70032
|
70032
71650-95701
Back Assy, No.3 Seat
[10.1979 - 01.1981] KM20..07S VL |
71650-95701 |
— | ||
|
70032
|
70032
71650-95705
Back Assy, No.3 Seat
[10.1979 - 01.1981] KM20..07S FB |
71650-95705 |
— | ||
|
70032
|
70032
71650-95712
Back Assy, No.3 Seat
[01.1981 - 10.1982] KM20..WG..STD VL |
71650-95712 |
— | ||
|
70032
|
70032
71650-95713
Back Assy, No.3 Seat
[01.1981 - 10.1982] KM20..WG..STD FB |
71650-95713 |
— | ||
|
70033
|
70033
71608-95701
Cover Assy, No.3 Seat Cushion
[10.1979 - 01.1981] KM20..07S VL |
71608-95701 |
— | ||
|
70033
|
70033
71608-95705
Cover Assy, No.3 Seat Cushion
[10.1979 - 01.1981] KM20..07S FB |
71608-95705 |
— | ||
|
70033
|
70033
71608-95709-06
Cover Assy, No.3 Seat Cushion
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71608-95709-06 |
— | ||
|
70033
|
70033
71608-95712
Cover Assy, No.3 Seat Cushion
[01.1981 - 10.1982] KM20..WG..STD VL |
71608-95712 |
— | ||
|
70034
|
70034
71609-95701
Cover Assy, No.3 Seat Back
[10.1979 - 01.1981] KM20..07S VL |
71609-95701 |
— | ||
|
70034
|
70034
71609-95705
Cover Assy, No.3 Seat Back
[10.1979 - 01.1981] KM20..07S FB |
71609-95705 |
— | ||
|
70034
|
70034
71609-95709-06
Cover Assy, No.3 Seat Back
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71609-95709-06 |
— | ||
|
70034
|
70034
71609-95712
Cover Assy, No.3 Seat Back
[01.1981 - 10.1982] KM20..WG..STD VL |
71609-95712 |
— | ||
|
71350
|
71350
71330-95700
Link Assy, Rear Seat Back Cushion, Rh
[10.1979 - 01.1981] KM20..07S,09S |
71330-95700 |
— | ||
|
71350
|
71350
72570-95702 Link Assy, Rear Seat Back Cushion, RhREAR SEAT BACK CUSHION, RH [01.1981 - 08.1985] KM20..WG |
72570-95702 |
US $199.47 |
||
| replacement | |||||
|
71350
|
71350
72570-95704 Link Assy, Rear Seat Back Cushion, RhREAR SEAT BACK CUSHION, RH [01.1981 - 08.1985] KM20..WG |
72570-95704 |
US $200.93 |
||
|
71360
|
71360
71340-95700
Link Assy, Rear Seat Back Cushion, Lh
[10.1979 - 01.1981] KM20..07S,09S |
71340-95700 |
— | ||
|
71360
|
71360
72530-95701 Link Assy, Rear Seat Back Cushion, LhREAR SEAT BACK CUSHION, LH [01.1981 - 08.1985] KM20..WG |
72530-95701 |
US $199.47 |
||
| replacement | |||||
|
71360
|
71360
72530-95703 Link Assy, Rear Seat Back Cushion, LhREAR SEAT BACK CUSHION, LH [01.1981 - 08.1985] KM20..WG |
72530-95703 |
US $200.93 |
||
|
71383
|
71383
71680-95700
Hinge, Rear Seat Back Stop, No.3
[10.1979 - 10.1982] KM20..BUS,WG |
71680-95700 |
— | ||
|
71384
|
71384
71690-95700
Hinge, Rear Seat Back Stop, No.4
[10.1979 - 10.1982] KM20..BUS,WG |
71690-95700 |
— | ||
|
71419
|
71419
71419-95A01
Cushion (For Rear Seat Leg)
[12.1979 - 01.1981] KM20..07S |
71419-95A01 |
— | ||
|
71585
|
71585
71585-95700
Cover, Rear No.1 Seat Hinge, Rh
[10.1979 - 01.1981] KM20..07S,09S |
71585-95700 |
— | ||
|
71586
|
71586
71595-95700
Cover, Rear No.2 Seat Hinge, Lh
[10.1979 - 01.1981] KM20..07S,09S |
71595-95700 |
— | ||
|
71660
|
71660
72650-95700
Lock Assy, Rear No.3 Seat
[10.1979 - 01.1981] KM20..07S |
72650-95700 |
— | ||
|
71660
|
71660
72650-95701
Lock Assy, Rear No.3 Seat
[01.1981 - 08.1985] KM20,YM21..WG RH |
72650-95701 |
— | ||
|
71660
|
71660
72660-95700 Lock Assy, Rear No.3 SeatREAR NO.3 SEAT, LH [01.1981 - 08.1985] KM20,YM21..WG LH |
72660-95700 |
US $163.07 |
||
|
71661
|
71661
71664-95700
Striker, Rear No.3 Seat Lock
[10.1979 - 01.1981] KM20..07S,09S |
71664-95700 |
— | ||
|
71661
|
71661
71664-95701
Striker, Rear No.3 Seat Lock
[01.1981 - 10.1982] KM20..WG |
71664-95701 |
— | ||
|
71668
|
71668
71668-95700 Cushion (For Rear Seat Leg)[10.1979 - 08.1985] KM20,YM21..BUS,WG |
71668-95700 |
US $11.36 |
||
|
71812
|
71812
90468-18056 Clip (For Front Seat Cushion Cover)[10.1979 - 10.1982] KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
90468-18056 |
US $3.35 |
||
|
71948
|
71948
71498-95700-06 Protector, Passenger Seat BackPASSENGER SEAT BACK [10.1979 - 10.1982] KM20..(05S,06S,07S,08S,09S)..STD..(EUR,GEN) BROWN,BROWN |
71498-95700-06 |
US $10.05 |
||
| replacement | |||||
|
71948
|
71948
71498-95703-B0 Protector, Rear Seat Back[10.1979 - 10.1982] KM20..(05S,06S,07S,08S,09S)..STD..(EUR,GEN) BROWN,BROWN |
71498-95703-B0 |
US $16.89 |
||
|
72622
|
72622
71507-95702
Rod, Rear Seat Back Stopper Connecting
[01.1981 - 10.1982] KM20..WG..STD |
71507-95702 |
— | ||
|
72622
|
72622
71570-95700
Rod, Rear Seat Back Stopper Connecting
[10.1979 - 01.1981] KM20..07S,09S |
71570-95700 |
— | ||
|
72622A
|
72622A
71670-95700
Rod, Rear Seat Back Stopper Connecting, No.2
[10.1979 - 10.1982] KM20..BUS,WG |
71670-95700 |
— | ||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011908241
|
9011908241
90119-08241 New Genuine Part |
90119-08241 |
US $2.77 |
||
|
9011908242
|
9011908242
90119-08242
New Genuine Part
|
90119-08242 |
— | ||
|
9011911002
|
9011911002
90119-11002 New Genuine Part |
90119-11002 |
US $4.51 |
||
|
9015950082
|
9015950082
90159-50082 New Genuine Part |
90159-50082 |
US $1.05 |
||
|
9020112192
|
9020112192
90201-12192
New Genuine Part
|
90201-12192 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9353024016
|
9353024016
93530-24016 SCREW |
93530-24016 |
from US $0.68 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
US $0.52 |
||
