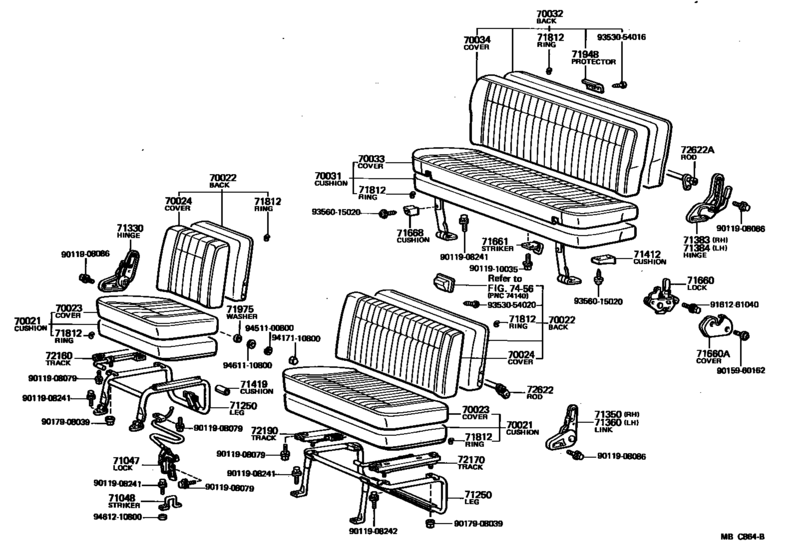

Seat & Seat Track ([08.1981 - 10.1982] (8108-8210)DLX) Diagram Toyota LITEACE
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- KM20
- grade
- DLX
- body
- WG
- Roof
- SRF
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LITEACE
- From
- 08.1981
- To
- 10.1982
- Gear Shift Type
- 4F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
70021
|
70021
71410-95744
Cushion Assy, No.2 Seat
[08.1981 - 10.1982] KM20..DLX RH,FB |
71410-95744 |
— | ||
|
70021
|
70021
71410-95754
Cushion Assy, No.2 Seat
[10.1982 - 08.1985] KM20..08S RH |
71410-95754 |
— | ||
|
70021
|
70021
71510-95724
Cushion Assy, No.2 Seat
[08.1981 - 10.1982] KM20..DLX LH,FB |
71510-95724 |
— | ||
|
70021
|
70021
71510-95732
Cushion Assy, No.2 Seat
[10.1982 - 08.1985] KM20..08S LH |
71510-95732 |
— | ||
|
70022
|
70022
71450-95727
Back Assy, No.2 Seat
[08.1981 - 10.1982] KM20..DLX RH,FB |
71450-95727 |
— | ||
|
70022
|
70022
71450-95738
Back Assy, No.2 Seat
[10.1982 - 08.1985] KM20..08S RH |
71450-95738 |
— | ||
|
70022
|
70022
71550-95722
Back Assy, No.2 Seat
[08.1981 - 10.1982] KM20..DLX LH,FB |
71550-95722 |
— | ||
|
70022
|
70022
71550-95731
Back Assy, No.2 Seat
[10.1982 - 08.1985] KM20..08S LH |
71550-95731 |
— | ||
|
70023
|
70023
71408-95727
Cover Assy, No.2 Seat Cushion
[08.1981 - 10.1982] KM20..DLX RH,FB |
71408-95727 |
— | ||
|
70023
|
70023
71408-95736
Cover Assy, No.2 Seat Cushion
[10.1982 - 08.1985] KM20..08S RH |
71408-95736 |
— | ||
|
70023
|
70023
71508-95720
Cover Assy, No.2 Seat Cushion
[08.1981 - 10.1982] KM20..DLX LH,FB |
71508-95720 |
— | ||
|
70023
|
70023
71508-95728
Cover Assy, No.2 Seat Cushion
[10.1982 - 08.1985] KM20..08S LH |
71508-95728 |
— | ||
|
70024
|
70024
71409-95726
Cover Assy, No.2 Seat Back
[08.1981 - 10.1982] KM20..DLX RH,FB |
71409-95726 |
— | ||
|
70024
|
70024
71409-95736
Cover Assy, No.2 Seat Back
[10.1982 - 08.1985] KM20..08S RH |
71409-95736 |
— | ||
|
70024
|
70024
71509-95720
Cover Assy, No.2 Seat Back
[08.1981 - 10.1982] KM20..DLX LH,FB |
71509-95720 |
— | ||
|
70024
|
70024
71509-95728
Cover Assy, No.2 Seat Back
[10.1982 - 08.1985] KM20..08S LH |
71509-95728 |
— | ||
|
70031
|
70031
71610-95709-06
Cushion Assy, No.3 Seat
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71610-95709-06 |
— | ||
|
70031
|
70031
71610-95723
Cushion Assy, No.3 Seat
[10.1982 - 08.1985] KM20,YM21..08S |
71610-95723 |
— | ||
|
70032
|
70032
71650-95722
Back Assy, No.3 Seat
[08.1981 - 10.1982] KM20..DLX FB |
71650-95722 |
— | ||
|
70032
|
70032
71650-95728
Back Assy, No.3 Seat
[10.1982 - 08.1985] KM20,YM21..08S |
71650-95728 |
— | ||
|
70033
|
70033
71608-95709-06
Cover Assy, No.3 Seat Cushion
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71608-95709-06 |
— | ||
|
70033
|
70033
71608-95729
Cover Assy, No.3 Seat Cushion
[10.1982 - 08.1985] KM20,YM21..08S |
71608-95729 |
— | ||
|
70034
|
70034
71609-95709-06
Cover Assy, No.3 Seat Back
[01.1981 - 10.1982] KM20..WG FB,DARK BROWN,BROWN |
71609-95709-06 |
— | ||
|
70034
|
70034
71609-95730
Cover Assy, No.3 Seat Back
[10.1982 - 08.1985] KM20,YM21..08S |
71609-95730 |
— | ||
|
71047
|
71047
72630-95703
Lock Sub-Assy, Rear Seat Leg
[08.1981 - 10.1982] KM20..DLX |
72630-95703 |
— | ||
|
71048
|
71048
71048-95700
Striker Sub-Assy, Rear Seat Lock
[08.1981 - 10.1982] KM20..DLX |
71048-95700 |
— | ||
|
71250
|
71250
71403-95703
Leg Assy, Rear No.1 Seat
[08.1981 - 10.1982] KM20..DLX RH |
71403-95703 |
— | ||
|
71250
|
71250
71503-95705
Leg Assy, Rear No.1 Seat
[08.1981 - 10.1982] KM20..DLX LH |
71503-95705 |
— | ||
|
71330
|
71330
72580-95701
Hinge Assy, Rear Seat Cushion
[08.1981 - 10.1982] KM20..DLX |
72580-95701 |
— | ||
|
71330
|
71330
72580-95702
Hinge Assy, Rear Seat Cushion
[10.1982 - 08.1985] KM20..08S |
72580-95702 |
— | ||
|
71350
|
71350
72570-95702 Link Assy, Rear Seat Back Cushion, RhREAR SEAT BACK CUSHION, RH [01.1981 - 08.1985] KM20..WG |
72570-95702 |
US $199.47 |
||
| replacement | |||||
|
71350
|
71350
72570-95704 Link Assy, Rear Seat Back Cushion, RhREAR SEAT BACK CUSHION, RH [01.1981 - 08.1985] KM20..WG |
72570-95704 |
US $200.93 |
||
|
71360
|
71360
72530-95701 Link Assy, Rear Seat Back Cushion, LhREAR SEAT BACK CUSHION, LH [01.1981 - 08.1985] KM20..WG |
72530-95701 |
US $199.47 |
||
| replacement | |||||
|
71360
|
71360
72530-95703 Link Assy, Rear Seat Back Cushion, LhREAR SEAT BACK CUSHION, LH [01.1981 - 08.1985] KM20..WG |
72530-95703 |
US $200.93 |
||
|
71383
|
71383
71680-95700
Hinge, Rear Seat Back Stop, No.3
[10.1979 - 10.1982] KM20..BUS,WG |
71680-95700 |
— | ||
|
71384
|
71384
71690-95700
Hinge, Rear Seat Back Stop, No.4
[10.1979 - 10.1982] KM20..BUS,WG |
71690-95700 |
— | ||
|
71412
|
71412
71622-95700
Cushion Rubber, Back Cushion Frame
[01.1981 - 10.1982] KM20..WG |
71622-95700 |
— | ||
|
71419
|
71419
71419-95A01
Cushion (For Rear Seat Leg)
[08.1981 - 10.1982] KM20..DLX |
71419-95A01 |
— | ||
|
71660
|
71660
72650-95701
Lock Assy, Rear No.3 Seat
[01.1981 - 08.1985] KM20,YM21..WG RH |
72650-95701 |
— | ||
|
71660
|
71660
72660-95700 Lock Assy, Rear No.3 SeatREAR NO.3 SEAT, LH [01.1981 - 08.1985] KM20,YM21..WG LH |
72660-95700 |
US $163.07 |
||
|
71660A
|
71660A
71691-95701-05 Cover, Rear No.3 Seat LockREAR NO.3 SEAT LOCK, RH [10.1982 - 08.1985] KM20,YM21..08S,09S RH,BEIGE,BEIGE |
71691-95701-05 |
US $11.07 |
||
| replacement | |||||
|
71660A
|
71660A
71691-95701-01
Cover, Rear No.3 Seat Lock
[10.1982 - 08.1985] KM20,YM21..08S,09S RH,BEIGE,BEIGE |
71691-95701-01 |
— | ||
|
71660A
|
71660A
71691-95701-06 Cover, Rear No.3 Seat LockREAR NO.3 SEAT LOCK [01.1981 - 10.1982] KM20..WG RH,BROWN,BROWN |
71691-95701-06 |
US $11.07 |
||
| replacement | |||||
|
71660A
|
71660A
71691-95701-01
Cover, Rear No.3 Seat Lock
[01.1981 - 10.1982] KM20..WG RH,BROWN,BROWN |
71691-95701-01 |
— | ||
|
71660A
|
71660A
71692-95701-05
Cover, Rear No.3 Seat Lock
[10.1982 - 08.1985] KM20,YM21..08S,09S LH,BEIGE,BEIGE |
71692-95701-05 |
— | ||
| replacement | |||||
|
71660A
|
71660A
71692-95701-01
Cover, Rear No.3 Seat Lock
[10.1982 - 08.1985] KM20,YM21..08S,09S LH,BEIGE,BEIGE |
71692-95701-01 |
— | ||
|
71660A
|
71660A
71692-95701-06 Cover, Rear No.3 Seat LockREAR NO.3 SEAT LOCK [01.1981 - 10.1982] KM20..WG LH,BROWN,BROWN |
71692-95701-06 |
US $11.07 |
||
| replacement | |||||
|
71660A
|
71660A
71692-95701-01
Cover, Rear No.3 Seat Lock
[01.1981 - 10.1982] KM20..WG LH,BROWN,BROWN |
71692-95701-01 |
— | ||
|
71661
|
71661
71664-95701
Striker, Rear No.3 Seat Lock
[01.1981 - 10.1982] KM20..WG |
71664-95701 |
— | ||
|
71668
|
71668
71668-95700 Cushion (For Rear Seat Leg)[10.1979 - 08.1985] KM20,YM21..BUS,WG |
71668-95700 |
US $11.36 |
||
|
71812
|
71812
90468-18056 Clip (For Front Seat Cushion Cover)[10.1979 - 10.1982] KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
90468-18056 |
US $3.35 |
||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[10.1982 - 08.1985] CM20,KM20,YM2# |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[10.1982 - 08.1985] CM20,KM20,YM2# |
90468-16019 |
from US $0.86 |
||
|
71948
|
71948
71498-95700-06 Protector, Passenger Seat BackPASSENGER SEAT BACK [08.1981 - 10.1982] KM20..DLX BROWN,BROWN |
71498-95700-06 |
US $10.05 |
||
| replacement | |||||
|
71948
|
71948
71498-95703-B0 Protector, Rear Seat Back[08.1981 - 10.1982] KM20..DLX BROWN,BROWN |
71498-95703-B0 |
US $16.89 |
||
|
71975
|
71975
71975-95A01
Washer, Rear No.1 Seat
[08.1981 - 10.1982] KM20..DLX |
71975-95A01 |
— | ||
|
72160
|
72160
72160-95702
Track Assy, Rear Seat, Outer Rh
[08.1981 - 10.1982] KM20..DLX |
72160-95702 |
— | ||
|
72170
|
72170
72180-95701
Track Assy, Rear Seat, Outer Lh
[10.1982 - 08.1985] KM20..08S BEIGE |
72180-95701 |
— | ||
|
72170
|
72170
72190-95702
Track Assy, Rear Seat, Outer Lh
[08.1981 - 10.1982] KM20..DLX |
72190-95702 |
— | ||
|
72190
|
72190
72180-95701
Track Assy, Rear Seat, Outer Lh
[08.1981 - 10.1982] KM20..DLX |
72180-95701 |
— | ||
|
72190
|
72190
72190-95702
Track Assy, Rear Seat, Outer Lh
[10.1982 - 08.1985] KM20..08S BEIGE |
72190-95702 |
— | ||
|
72622
|
72622
71507-95701
Rod, Rear Seat Back Stopper Connecting
[01.1981 - 10.1982] KM20..DLX |
71507-95701 |
— | ||
|
72622A
|
72622A
71670-95700
Rod, Rear Seat Back Stopper Connecting, No.2
[10.1979 - 10.1982] KM20..BUS,WG |
71670-95700 |
— | ||
|
72622A
|
72622A
72753-95700 Rod, Rear Seat Back Stopper Connecting, No.2REAR SEAT BACK STOPPER CONNECTING [10.1982 - 05.1984] KM20,YM21..08S,09S |
72753-95700 |
US $41.93 |
||
| replacement | |||||
|
72622A
|
72622A
79169-95701
Rod, Rear Seat Back Stopper Connecting, No.2
[10.1982 - 05.1984] KM20,YM21..08S,09S |
79169-95701 |
— | ||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011908241
|
9011908241
90119-08241 New Genuine Part |
90119-08241 |
US $2.77 |
||
|
9011908242
|
9011908242
90119-08242
New Genuine Part
|
90119-08242 |
— | ||
|
9011910035
|
9011910035
90119-10035 New Genuine Part |
90119-10035 |
US $2.62 |
||
|
9015960162
|
9015960162
90159-60162 SCREW |
90159-60162 |
from US $0.68 |
||
|
9017908039
|
9017908039
90179-08039 New Genuine Part |
90179-08039 |
US $1.16 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9353054016
|
9353054016
93530-54016 New Genuine Part |
93530-54016 |
US $1.08 |
||
|
9353054020
|
9353054020
93530-54020 New Genuine Part |
93530-54020 |
US $0.87 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
|
9417110800
|
9417110800
94171-10800 Nut, Cap(For Cylinder Head Cover) |
94171-10800 |
from US $0.60 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.86 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
