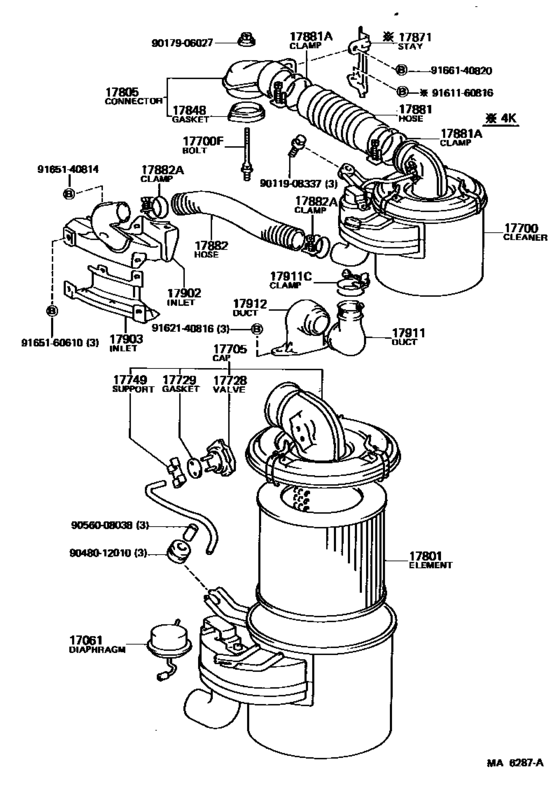

Air Cleaner ([10.1982 - ] (8210- )4K..EUR) Diagram Toyota LITEACE
- Year
- 1981 - 1985
- Sales region
- General
- Frame
- KM20
- grade
- STD
- body
- WG
- Roof
- SRF
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LITEACE
- From
- 08.1981
- Engine
- 4KC
- To
- 08.1985
- Gear Shift Type
- 4F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-31020
Diaphragm Sub-Assy
[10.1982 - 08.1985] 4K..KM20..EUR |
17061-31020 |
— | ||
|
17700
|
17700
17700-13120
Cleaner Assy, Air
[10.1979 - 10.1982] 4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
17700-13120 |
— | ||
|
17700
|
17700
17700-13400 Cleaner Assy, AirAIR [10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17700-13400 |
US $556.19 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[10.1979 - 08.1985] 4K..KM20 L=80,S=12&28 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-13020
Cap Sub-Assy, Air Cleaner
[10.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
17705-13020 |
— | ||
|
17705
|
17705
17705-13080 Cap Sub-Assy, Air Cleaner[10.1982 - 08.1985] 4K..KM20..EUR |
17705-13080 |
US $113.57 |
||
|
17728
|
17728
17728-31030 Valve, Thermostatic[10.1982 - 08.1985] 4K..KM20..EUR |
17728-31030 |
US $84.45 |
||
|
17729
|
17729
17729-31010 Gasket, Thermostat Valve[10.1982 - 08.1985] 4K..KM20..EUR |
17729-31010 |
US $5.24 |
||
|
17749
|
17749
17749-31010 Support, Thermostat Valve[10.1982 - 08.1985] 4K..KM20..EUR |
17749-31010 |
US $7.72 |
||
|
17801
|
17801
17801-13030
Element Sub-Assy, Air Cleaner Filter
[10.1982 - 08.1985] 4K..KM20..EUR |
17801-13030 |
— | ||
|
17801
|
17801
17801-23020 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [10.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
17801-23020 |
US $12.06 |
||
|
17805
|
17805
17805-13020 Connector Sub-Assy, Intake AirINTAKE AIR [10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17805-13020 |
US $107.74 |
||
|
17805
|
17805
17861-13030
Connector Sub-Assy, Intake Air
[10.1979 - 10.1982] 4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
17861-13030 |
— | ||
|
17848
|
17848
17848-13010
Gasket, Air Cleaner To Carburetor
[10.1982 - 08.1985] 4K..KM20 |
17848-13010 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[10.1982 - 08.1985] 4K..KM20 |
17848-10021 |
US $5.24 |
||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[10.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
90430-63187 |
— | ||
|
17871
|
17871
17871-13020
Stay, Air Connector
[10.1979 - 08.1985] 4K..KM20..LHD |
17871-13020 |
— | ||
|
17881
|
17881
17881-13040 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
17881-13040 |
US $65.67 |
||
|
17881
|
17881
17881-13100 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17881-13100 |
US $78.62 |
||
|
17881A
|
17881A
90460-78002 Clamp(For Air Cleaner Hose, No.1)NO.1) [11.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
90460-78002 |
US $8.59 |
||
| replacement | |||||
|
17881A
|
17881A
90460-78006
Clamp(For Air Cleaner Hose, No.1)
[11.1979 - 10.1982] 4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
90460-78006 |
— | ||
|
17881A
|
17881A
96111-10690 Clamp, Hose[10.1982 - 08.1985] 4K..KM20..EUR |
96111-10690 |
from US $2.87 |
||
|
17882
|
17882
17881-27020
Hose, Air Cleaner, No.2
[10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17881-27020 |
— | ||
| replacement | |||||
|
17882
|
17882
17881-15150
Hose, Air Cleaner, No.1
[10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17881-15150 |
— | ||
|
17882A
|
17882A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[10.1982 - 08.1985] 4K..KM20..EUR |
96111-10460 |
from US $2.83 |
||
|
17902
|
17902
17167-13070 Inlet Sub-Assy, Hot Air Intake, No.1HOT AIR INTAKE, NO.1 [10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17167-13070 |
US $93.18 |
||
|
17903
|
17903
17168-13020 Inlet Sub-Assy, Hot Air Intake, No.2[10.1982 - 08.1985] 4K..KM20..EUR |
17168-13020 |
US $77.17 |
||
|
17911
|
17911
17761-95705
Duct, Cool Air Intake, No.1
[10.1982 - 08.1985] 4K..KM20..LHD..EUR |
17761-95705 |
— | ||
|
17912
|
17912
17762-95702 Duct, Cool Air Intake, No.2COOL AIR INTAKE, NO.2 [10.1982 - 08.1985] 4K..KM20..EUR |
17762-95702 |
US $46.59 |
||
|
9011908337
|
9011908337
90119-08337 New Genuine Part |
90119-08337 |
US $2.04 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9048012018
|
9048012018
90480-12018
New Genuine Part
|
90480-12018 |
— | ||
|
9056008038
|
9056008038
90560-08038 Spacer(For Air Cleaner) |
90560-08038 |
US $1.16 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
from US $0.99 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
