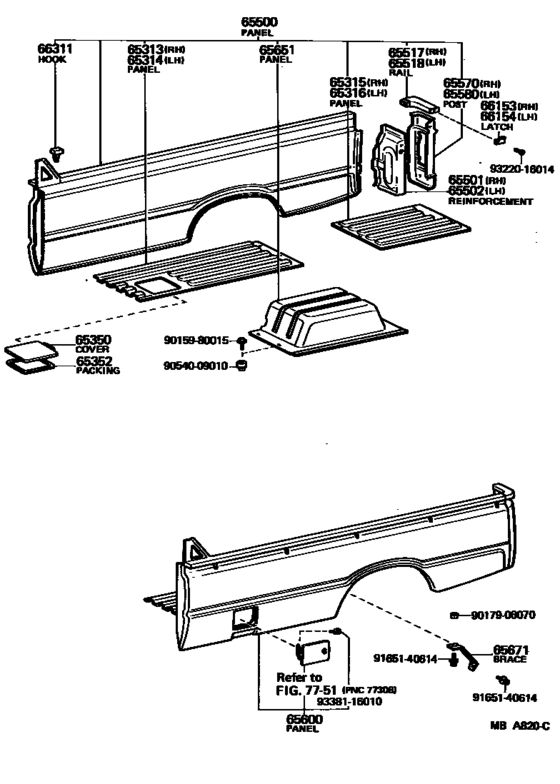

Rear Body Side Panel ([10.1979 - 10.1982] (7910-8210)T1) Diagram Toyota LITEACE
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- KM20
- grade
- STD
- body
- TR
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- DECK
- T1
- Model
- LITEACE
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65313
|
65313
65313-87403
Panel, Floor Front Corner, Rh
[10.1979 - 10.1982] KM20..T1 |
65313-87403 |
— | ||
|
65314
|
65314
65314-87403
Panel, Floor Front Corner, Lh
[10.1979 - 10.1982] KM20..T1 |
65314-87403 |
— | ||
|
65315
|
65315
65315-87402
Panel, Floor Rear Corner, Rh
[10.1979 - 10.1982] KM20..T1 |
65315-87402 |
— | ||
|
65316
|
65316
65316-87402
Panel, Floor Rear Corner, Lh
[10.1979 - 10.1982] KM20..T1 |
65316-87402 |
— | ||
|
65350
|
65350
65305-95010 Cover Assy, Battery Service HoleBATTERY SERVICE HOLE [10.1979 - 10.1982] KM20..T1 |
65305-95010 |
US $35.53 |
||
|
65352
|
65352
65352-87402
Packing, Battery Service Hole Cover
[10.1979 - 10.1982] KM20..T1 |
65352-87402 |
— | ||
|
65500
|
65500
65500-87407
Panel Assy, Rear Body Side, Rh
[10.1979 - 10.1982] KM20..T1 |
65500-87407 |
— | ||
|
65501
|
65501
65505-87403
Reinforcement Sub-Assy, Rear End Post, Inner Rh
[10.1979 - 10.1982] KM20..T1 |
65505-87403 |
— | ||
|
65502
|
65502
65506-87403
Reinforcement Sub-Assy, Rear End Post, Inner Lh
[10.1979 - 10.1982] KM20..T1 |
65506-87403 |
— | ||
|
65517
|
65517
65517-87401
Rail, Side Panel Top, Rear Rh
[10.1979 - 10.1982] KM20..T1 |
65517-87401 |
— | ||
|
65518
|
65518
65518-87401
Rail, Side Panel Top, Rear Lh
[10.1979 - 10.1982] KM20..T1 |
65518-87401 |
— | ||
|
65570
|
65570
65553-87401
Post Assy, Side Panel Rear End, Rh
[10.1979 - 10.1982] KM20..T1 |
65553-87401 |
— | ||
|
65580
|
65580
65554-87401
Post Assy, Side Panel Rear End, Lh
[10.1979 - 10.1982] KM20..T1 |
65554-87401 |
— | ||
|
65600
|
65600
65600-87407
Panel Assy, Rear Body Side, Lh
[10.1979 - 10.1982] KM20..T1 |
65600-87407 |
— | ||
|
65651
|
65651
65631-87403
Panel, Wheel House
[10.1979 - 10.1982] KM20..T1 |
65631-87403 |
— | ||
|
65671
|
65671
65671-87402
Brace, Side Panel Skirt, Front
[10.1979 - 10.1982] KM20..T1 RH |
65671-87402 |
— | ||
|
65671
|
65671
65672-87402
Brace, Side Panel Skirt, Front
[10.1979 - 10.1982] KM20..T1 LH |
65672-87402 |
— | ||
|
66153
|
66153
66153-87401 Latch, Tail Gate Female, RhTAIL GATE FEMALE, RH [10.1979 - 10.1982] KM20..T1 |
66153-87401 |
US $6.70 |
||
|
66154
|
66154
66153-87401 Latch, Tail Gate Female, RhTAIL GATE FEMALE, RH [10.1979 - 10.1982] KM20..T1 |
66153-87401 |
US $6.70 |
||
|
66311
|
66311
66311-87401 Rope Hook Set[10.1979 - 10.1982] KM20..TR |
66311-87401 |
US $5.97 |
||
|
9015980015
|
9015980015
90159-80015 New Genuine Part |
90159-80015 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9054009010
|
9054009010
90540-09010
New Genuine Part
|
90540-09010 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.66 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
