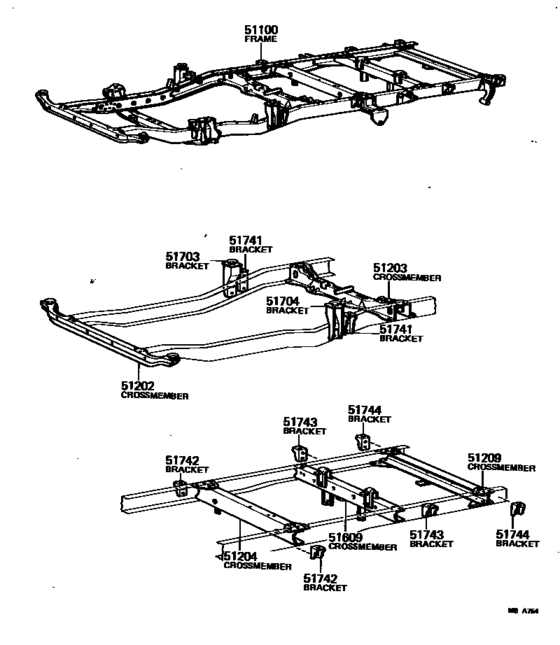

Frame ([10.1979 - 10.1982] (7910-8210)TR) Diagram Toyota LITEACE
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- KM20
- grade
- STD
- body
- TR
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- DECK
- T1
- Model
- LITEACE
- From
- 10.1979
- Engine
- 4KC
- To
- 10.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51001-27070
Frame Assy
[10.1979 - 10.1982] KM20..TR |
51001-27070 |
— | ||
|
51202
|
51202
51201-27040
Crossmember Sub-Assy, Frame, No.1
[10.1979 - 10.1982] KM20..TR |
51201-27040 |
— | ||
| replacements | |||||
|
51202
|
51202
51201-27041 Crossmember Sub-Assy, Frame, No.1[10.1979 - 10.1982] KM20..TR |
51201-27041 |
US $214.03 |
||
|
51202
|
51202
86591-87401 Bracket, Horn[10.1979 - 10.1982] KM20..TR |
86591-87401 |
US $5.82 |
||
|
51203
|
51203
51204-27040 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [10.1979 - 10.1982] KM20..TR |
51204-27040 |
US $272.27 |
||
| replacement | |||||
|
51203
|
51203
51204-27041 Crossmember Sub-Assy, Frame, No.2[10.1979 - 10.1982] KM20..TR |
51204-27041 |
US $259.17 |
||
|
51204
|
51204
51205-27040 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [10.1979 - 10.1982] KM20..TR |
51205-27040 |
US $208.21 |
||
| replacement | |||||
|
51204
|
51204
51205-27041
Crossmember Sub-Assy, Frame, No.3
[10.1979 - 10.1982] KM20..TR |
51205-27041 |
— | ||
|
51209
|
51209
51209-27020
Crossmember Sub-Assy, Frame, No.8
[10.1979 - 10.1982] KM20..TR |
51209-27020 |
— | ||
|
51609
|
51609
51206-27030
Crossmember Sub-Assy, Rear Shock Absorber Support
[10.1979 - 10.1982] KM20..TR |
51206-27030 |
— | ||
|
51703
|
51703
51705-27020 Bracket Sub-Assy, Cab Mounting, No.2, RhCAB MOUNTING, NO.2, RH [10.1979 - 10.1982] KM20..TR |
51705-27020 |
US $161.62 |
||
| replacement | |||||
|
51703
|
51703
51705-27021
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[10.1979 - 10.1982] KM20..TR |
51705-27021 |
— | ||
|
51704
|
51704
51706-27020 Bracket Sub-Assy, Cab Mounting, No.2 LhCAB MOUNTING, NO.2 LH [10.1979 - 10.1982] KM20..TR |
51706-27020 |
US $161.62 |
||
| replacement | |||||
|
51704
|
51704
51706-27021
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[10.1979 - 10.1982] KM20..TR |
51706-27021 |
— | ||
|
51741
|
51741
51741-27030
Bracket, Rear Body Mounting, No.1
[10.1979 - 10.1982] KM20..TR |
51741-27030 |
— | ||
|
51742
|
51742
51742-27020 Bracket, Body Mounting, No.2BODY MOUNTING, NO.2 [10.1979 - 10.1982] KM20..TR |
51742-27020 |
US $17.33 |
||
|
51743
|
51743
51742-27020 Bracket, Body Mounting, No.2BODY MOUNTING, NO.2 [10.1979 - 10.1982] KM20..TR |
51742-27020 |
US $17.33 |
||
|
51744
|
51744
51742-27020 Bracket, Body Mounting, No.2BODY MOUNTING, NO.2 [10.1979 - 10.1982] KM20..TR |
51742-27020 |
US $17.33 |
||
