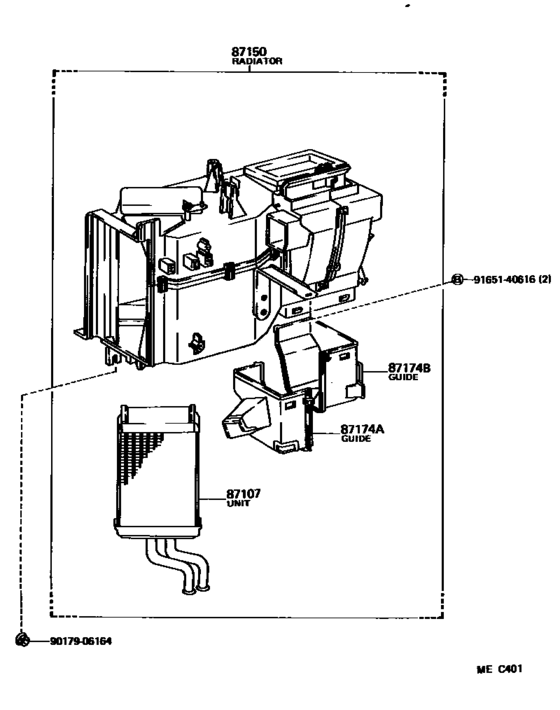

Heating & Air Conditioning - Heater Unit & Blower ([10.1982 - ] (8210- )RHD) Diagram Toyota LITEACE
- Year
- 1981 - 1985
- Sales region
- Europe
- Frame
- KM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4K
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 03.1981
- Engine
- 4KC
- To
- 08.1985
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87107
|
87107
87107-95400
Unit Sub-Assy, Heater Radiator
[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
87107-95400 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-95405
Unit Sub-Assy, Heater Radiator
[10.1979 - 10.1982] KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
87107-95405 |
— | ||
|
87107
|
87107
87107-95701
Unit Sub-Assy, Heater Radiator
[10.1982 - 08.1985] CM20,KM20,YM2#..RHD |
87107-95701 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-95702
Unit Sub-Assy, Heater Radiator
[10.1982 - 08.1985] CM20,KM20,YM2#..RHD |
87107-95702 |
— | ||
|
87150
|
87150
87150-95700
Radiator Assy, Heater
[10.1982 - 08.1985] CM20,KM20,YM2#..RHD |
87150-95700 |
— | ||
|
87174A
|
87174A
87174-95010
Guide, Air Duct
[10.1979 - 10.1982] KM20..RHD |
87174-95010 |
— | ||
|
87174A
|
87174A
87174-95701
Guide, Air Heater
[10.1982 - 08.1985] CM20,KM20,YM2#..RHD |
87174-95701 |
— | ||
|
87174B
|
87174B
87175-95010
Guide, Air Duct
[10.1979 - 10.1982] KM20..RHD |
87175-95010 |
— | ||
|
87174B
|
87174B
87175-95701
Guide, Air, No.2
[10.1982 - 08.1985] CM20,KM20,YM2#..RHD |
87175-95701 |
— | ||
|
9017906164
|
9017906164
90179-06164
Nut, Wire Adjusting, No.1
|
90179-06164 |
— | ||
| replacement | |||||
|
9017906164
|
9017906164
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
