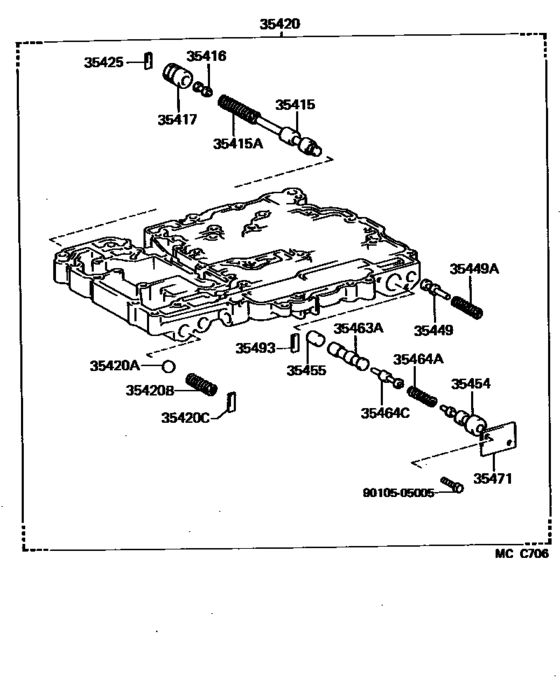

Valve Body & Oil Strainer (Atm) ([09.1985 - ] (8509- )3FC) Diagram Toyota LITEACE
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- KM30
- grade
- SCA
- body
- WG
- Roof
- MRF
- ENGINE
- 5KU
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 3FC
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35415
|
35415
35415-22020 Valve, Pressure Regulator[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35415-22020 |
US $44.99 |
||
|
35415A
|
35415A
90501-16682 Spring, Compression (For Pressure Regulator Valve)[09.1985 - 08.1988] CM30,36,KM30,31..ATM |
90501-16682 |
US $7.86 |
||
|
35416
|
35416
35416-24010 Plunger, Primary Regulator Valve, No.1[09.1985 - 08.1988] KM30,31..3FC |
35416-24010 |
US $9.61 |
||
|
35417
|
35417
35417-24010 Plunger, Primary Regulator Valve, No.1[09.1985 - 08.1988] KM30,31..3FC |
35417-24010 |
US $21.84 |
||
|
35420
|
35420
35420-22160 Body Assy, Lower Valve[09.1985 - 08.1988] KM30,31..3FC |
35420-22160 |
US $834.29 |
||
|
35420A
|
35420A
90360-13024
Ball (For Pressure Relief)
[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90360-13024 |
— | ||
|
35420B
|
35420B
90501-18677 Spring (For Pressure Relief)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90501-18677 |
US $3.86 |
||
|
35420C
|
35420C
35427-22011 Seat (For Pressure Relief)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35427-22011 |
US $4.08 |
||
|
35425
|
35425
35425-22010 Seat, Pressure Regulator Valve Sleeve[09.1985 - 08.1987] CM30,36,KM30,31..ATM |
35425-22010 |
US $3.49 |
||
|
35449
|
35449
35447-22010 Valve, Reverse Clutch Sequence[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM UPR VALVE BODY |
35447-22010 |
US $9.61 |
||
|
35449
|
35449
35449-22010 Valve, Sequence[09.1985 - 08.1988] KM30,31,YM30,40..ATM LWR VALVE BODY |
35449-22010 |
US $11.07 |
||
|
35449A
|
35449A
90501-12055 Spring, Compression (For Reverse Clutch Sequence Valve)[09.1985 - 08.1988] KM30,31..3FC UPR VALVE BODY |
90501-12055 |
US $2.91 |
||
|
35449A
|
35449A
90501-12726
Spring, Compression (For Reverse Clutch Sequence Valve)
[09.1985 - 08.1988] CM30,36,KM30,31..ATM LWR VALVE BODY |
90501-12726 |
— | ||
|
35454
|
35454
35454-30010 Valve, Low Coast Shift[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35454-30010 |
US $35.24 |
||
|
35455
|
35455
35455-22010 Plug, 1-2 Shift Valve Low[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35455-22010 |
US $11.36 |
||
|
35463A
|
35463A
35463-22010
Valve, 1-2 Shift, Lower
[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35463-22010 |
— | ||
|
35464A
|
35464A
90501-06684
Spring, Compression (For 1-2 Shift Valve)
[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90501-06684 |
— | ||
|
35464C
|
35464C
35464-22020 Valve, 1-2 Shift, Upper[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35464-22020 |
US $10.05 |
||
|
35471
|
35471
35471-22010 Cover, Valve Body, No.1[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35471-22010 |
US $9.61 |
||
|
35493
|
35493
35493-22010 Seat (For Cut Back Valve)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35493-22010 |
US $3.49 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
