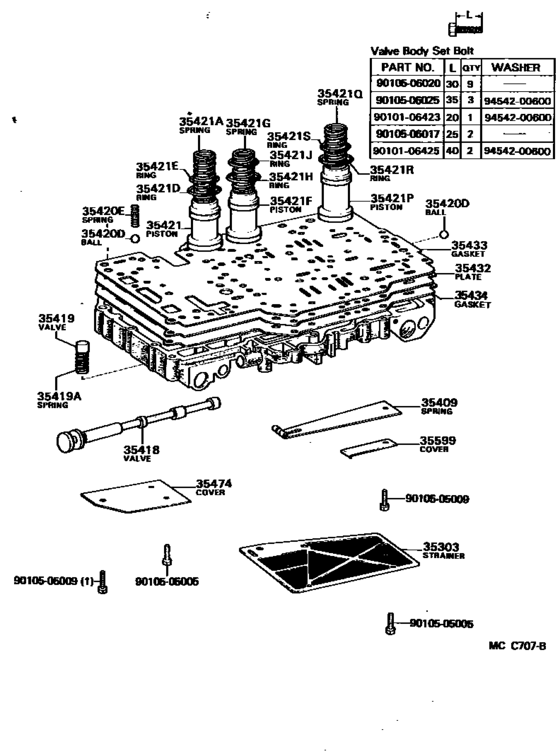

Valve Body & Oil Strainer (Atm) ([09.1985 - ] (8509- )3FC) Diagram Toyota LITEACE
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- KM30
- grade
- SCA
- body
- WG
- Roof
- MRF
- ENGINE
- 5KU
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 3FC
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35303
|
35303
35303-22022
Strainer Sub-Assy, Oil
[09.1985 - 08.1988] KM30,31..3FC |
35303-22022 |
— | ||
|
35409
|
35409
35409-30010 Spring Sub-Assy, Manual Detent[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35409-30010 |
US $14.85 |
||
|
35418
|
35418
35418-30050 Valve, Manual[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35418-30050 |
US $49.21 |
||
|
35419
|
35419
35419-22010 Valve, Check, No.1[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35419-22010 |
US $11.05 |
||
|
35419A
|
35419A
90501-13674 Spring, Compression (For Check Valve)[09.1985 - 08.1988] KM30,31..3FC |
90501-13674 |
US $2.77 |
||
|
35420D
|
35420D
35495-22010 Ball (For Transfer Upper Valve Body)[09.1985 - 04.1988] CM30,36,KM30,31,YM30,40..ATM 外径＝５．５３５，ラバー,OD=5.56,GUM |
35495-22010 |
US $4.51 |
||
| replacement | |||||
|
35420D
|
35420D
35495-22020 Ball (For Transfer Upper Valve Body)[09.1985 - 04.1988] CM30,36,KM30,31,YM30,40..ATM 外径＝５．５３５，ラバー,OD=5.56,GUM |
35495-22020 |
US $4.66 |
||
|
35420D
|
35420D
35495-22020 Ball (For Transfer Upper Valve Body)[04.1988 - 08.1988] KM30,31,YM30,40..ATM 外径＝５．５３５，ラバー,OD=5.56,GUM |
35495-22020 |
US $4.66 |
||
|
35420D
|
35420D
35496-22010 Ball (For Lower Valve Body)[09.1985 - 04.1988] CM30,36,KM30,31,YM30,40..ATM 外径＝６．３５，ラバー,OD=6.35,GUM |
35496-22010 |
US $5.82 |
||
| replacement | |||||
|
35420D
|
35420D
35496-22030 Ball (For Lower Valve Body)[09.1985 - 04.1988] CM30,36,KM30,31,YM30,40..ATM 外径＝６．３５，ラバー,OD=6.35,GUM |
35496-22030 |
US $4.54 |
||
|
35420D
|
35420D
35496-22030 Ball (For Lower Valve Body)[04.1988 - 08.1988] CM30,36,KM30,31,YM30,40..ATM 外径＝６．３５，ラバー,OD=6.35,GUM |
35496-22030 |
US $4.54 |
||
|
35420E
|
35420E
90501-04727 Spring (For Lower Valve Body)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90501-04727 |
US $2.68 |
||
|
35421
|
35421
35421-30020 Piston, Accumulator, No.1[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35421-30020 |
US $23.59 |
||
|
35421A
|
35421A
90501-26041 Spring, Compression (For Accumulator Piston No.1)[11.1985 - 08.1988] KM30,31..3FC |
90501-26041 |
US $3.93 |
||
|
35421D
|
35421D
90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-29187 |
US $8.30 |
||
|
35421E
|
35421E
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-23194 |
US $5.09 |
||
|
35421F
|
35421F
35421-22020 Piston, Accumulator, No.2[09.1985 - 08.1988] KM30,31..3FC |
35421-22020 |
US $21.40 |
||
|
35421G
|
35421G
90501-20676 Spring, Compression (For Accumulator Piston No.2)[09.1985 - 08.1988] KM30,31..3FC |
90501-20676 |
US $4.22 |
||
|
35421H
|
35421H
90301-26190 Ring, O (For Flange Yoke)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-26190 |
US $6.19 |
||
|
35421J
|
35421J
90301-18186 Ring (For Accumulator Piston No.2)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-18186 |
US $5.24 |
||
| replacement | |||||
|
35421J
|
35421J
90301-18010 Ring (For Accumulator Piston No.2)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-18010 |
US $3.84 |
||
|
35421P
|
35421P
35421-22030 Piston, Accumulator, No.3[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35421-22030 |
US $15.43 |
||
|
35421Q
|
35421Q
90501-20016 Spring, Compression (For Accumulator Piston No.3)[09.1985 - 08.1988] CM30..4FC..DSL; CM36,KM30,31,YM30,40..ATM |
90501-20016 |
US $8.01 |
||
|
35421R
|
35421R
90301-26190 Ring, O (For Flange Yoke)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-26190 |
US $6.19 |
||
|
35421S
|
35421S
90301-22185 Ring (For Accumulator Piston No.3)[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
90301-22185 |
US $5.39 |
||
|
35432
|
35432
35432-10020 Plate, Valve Body, No.1[09.1985 - 08.1988] KM30,31..3FC |
35432-10020 |
US $42.37 |
||
|
35433
|
35433
35433-22020
Gasket, Valve Body, No.1
[09.1985 - 08.1988] KM30,31..3FC |
35433-22020 |
— | ||
|
35434
|
35434
35434-22020
Gasket, Valve Body, No.2
[09.1985 - 08.1988] KM30,31..3FC |
35434-22020 |
— | ||
|
35474
|
35474
35474-22010 Cover, Valve Body, No.4[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35474-22010 |
US $11.79 |
||
|
35599
|
35599
35599-30010 Cover, Manual Detent Spring[09.1985 - 08.1988] CM30,36,KM30,31,YM30,40..ATM |
35599-30010 |
US $5.39 |
||
|
9010106423
|
9010106423
90101-06423 Bolt (for Transaxle Case Upper Cover) |
90101-06423 |
US $2.18 |
||
| replacement | |||||
|
9010106423
|
9010106423
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010106425
|
9010106425
90101-06425 New Genuine Part |
90101-06425 |
US $2.77 |
||
| replacement | |||||
|
9010106425
|
9010106425
90105-06042
New Genuine Part
|
90105-06042 |
— | ||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010505009
|
9010505009
90105-05009 New Genuine Part |
90105-05009 |
US $1.02 |
||
|
9010506017
|
9010506017
90105-06017 Bolt(for Cylinder Head Cover) |
90105-06017 |
US $1.89 |
||
| replacement | |||||
|
9010506017
|
9010506017
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
9010506020
|
9010506020
90105-06020 New Genuine Part |
90105-06020 |
US $2.62 |
||
| replacement | |||||
|
9010506020
|
9010506020
91511-C0630 New Genuine Part |
91511-C0630 |
US $0.52 |
||
|
9010506025
|
9010506025
90105-06025 New Genuine Part |
90105-06025 |
US $1.75 |
||
| replacement | |||||
|
9010506025
|
9010506025
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
