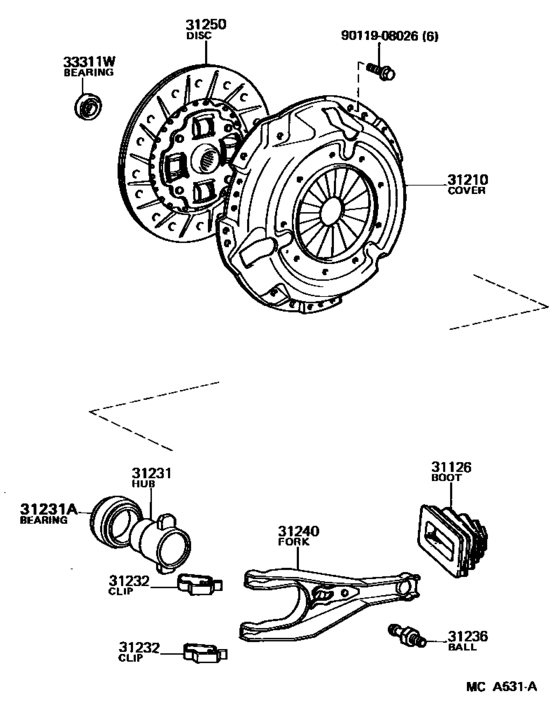

Clutch & Release Fork ([09.1985 - ] (8509- )KM30,31,36,YM30,40..5F) Diagram Toyota LITEACE
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- KM30
- grade
- SCA
- body
- WG
- Roof
- MRF
- ENGINE
- 5KU
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[09.1985 - 08.1988] KM30,31,36..5F |
31126-20070 |
from US $12.69 |
||
|
31210
|
31210
31210-12100 Cover Assy, Clutch[09.1985 - 10.1986] KM30,31,36..MTM |
31210-12100 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-12182
Cover Assy, Clutch
[09.1985 - 10.1986] KM30,31,36..MTM |
31210-12182 |
— | ||
|
31210
|
31210
31210-27010 Cover Assy, Clutch[10.1986 - 08.1988] KM3#..MTM |
31210-27010 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-12182
Cover Assy, Clutch
[10.1986 - 08.1988] KM3#..MTM |
31210-12182 |
— | ||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[09.1985 - 08.1988] CM30,35,4#,KM30,31,36,YM30,40..5F |
31231-36070 |
US $29.40 |
||
|
31231A
|
31231A
31230-35090
Bearing Assy, Clutch Release
[07.1988 - 08.1988] CM30,35,4#,KM3#,YM30,40..MTM |
31230-35090 |
— | ||
| replacement | |||||
|
31231A
|
31231A
31230-35091 Bearing Assy, Clutch Release[07.1988 - 08.1988] CM30,35,4#,KM3#,YM30,40..MTM |
31230-35091 |
from US $54.83 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[09.1985 - 07.1988] CM30,35,4#,KM3#,YM30,40..MTM |
90363-40022 |
from US $36.82 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[09.1985 - 08.1988] CM30,35,4#,KM30,31,36,YM30,40..5F |
31232-22010 |
from US $1.50 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[09.1985 - 08.1988] CM30,35,4#,KM3#,YM30,40..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20080 Fork Sub-Assy, Clutch Release[09.1985 - 08.1988] KM30,31,36..5F |
31204-20080 |
US $36.46 |
||
|
31250
|
31250
31250-27025
Disc Assy, Clutch
[09.1985 - 08.1988] KM30,35..MTM |
31250-27025 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-28142 Disc Assy, Clutch[09.1985 - 08.1988] KM30,35..MTM |
31250-28142 |
US $97.84 |
||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[09.1985 - 08.1988] KM3#..MTM |
90363-12003 |
from US $11.51 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
