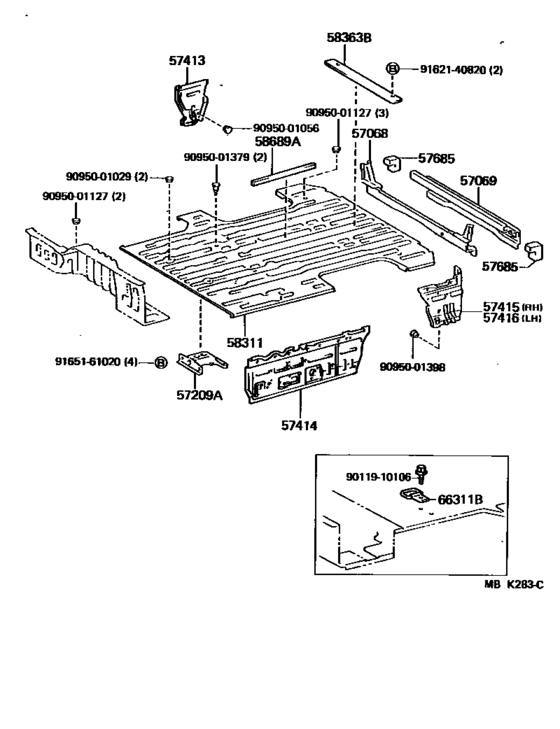

Rear Floor Panel & Rear Floor Member ([10.1985 - ] (8510- )LHD..MRF) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- KM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57068
|
57068
57068-95700 Member Sub-Assy, Rear Floor Rear Cross, Inner[10.1985 - 08.1988] CM35,KM3# |
57068-95700 |
US $145.60 |
||
| replacement | |||||
|
57068
|
57068
57068-95704 Member Sub-Assy, Rear Floor Rear Cross, Inner[10.1985 - 08.1988] CM35,KM3# |
57068-95704 |
US $164.53 |
||
|
57068
|
57068
57068-95703 Member Sub-Assy, Rear Floor Rear Cross, InnerREAR FLOOR REAR CROSS, INNER [10.1985 - 08.1988] KM30..DLX *FRG |
57068-95703 |
US $147.06 |
||
|
57069
|
57069
57069-95700 Member Sub-Assy, Rear Floor Rear Cross, Outer[10.1985 - 03.1986] KM30 |
57069-95700 |
US $160.16 |
||
| replacements | |||||
|
57069
|
57069
57069-95703 Member Sub-Assy, Rear Floor Rear Cross, OuterREAR FLOOR REAR CROSS, OUTER [10.1985 - 03.1986] KM30 |
57069-95703 |
US $164.53 |
||
|
57069
|
57069
90333-20001 PLUG[10.1985 - 03.1986] KM30 |
90333-20001 |
from US $1.21 |
||
|
57209A
|
57209A
57209-95708 Member Sub-Assy, Engine Rear Mounting[10.1985 - 08.1987] KM3#..LHD |
57209-95708 |
US $101.92 |
||
| replacement | |||||
|
57209A
|
57209A
57209-95710 Member Sub-Assy, Engine Rear Mounting[10.1985 - 08.1987] KM3#..LHD |
57209-95710 |
US $100.46 |
||
|
57209A
|
57209A
57209-95710 Member Sub-Assy, Engine Rear Mounting[08.1987 - 08.1988] KM3#..LHD |
57209-95710 |
US $100.46 |
||
|
57413
|
57413
57405-95719 Rail, Floor Side, Center Rh[10.1985 - 08.1988] KM30; CM35,KM31,36..05S |
57405-95719 |
US $63.04 |
||
|
57413
|
57413
57413-95735 Rail, Floor Side, Center Rh[10.1985 - 08.1988] CM35,KM31,36..LHD W/O RR SEAT; KM30 W/FOLDING SEAT |
57413-95735 |
US $65.67 |
||
| replacements | |||||
|
57413
|
57413
57405-95719 Rail, Floor Side, Center Rh[10.1985 - 08.1988] CM35,KM31,36..LHD W/O RR SEAT; KM30 W/FOLDING SEAT |
57405-95719 |
US $63.04 |
||
|
57413
|
57413
90333-15002 PLUG[10.1985 - 08.1988] CM35,KM31,36..LHD W/O RR SEAT; KM30 W/FOLDING SEAT |
90333-15002 |
US $1.61 |
||
|
57413
|
57413
90333-25001 Plug, Hole(For Hood)[10.1985 - 08.1988] CM35,KM31,36..LHD W/O RR SEAT; KM30 W/FOLDING SEAT |
90333-25001 |
from US $1.29 |
||
|
57414
|
57414
57406-95715 Rail, Floor Side, Center LhFLOOR SIDE, CENTER LH [10.1985 - 08.1988] KM30..DLX |
57406-95715 |
US $211.12 |
||
| replacement | |||||
|
57414
|
57414
57406-95712 Rail, Floor Side, Center LhFLOOR SIDE, CENTER LH [10.1985 - 08.1988] KM30..DLX |
57406-95712 |
US $211.12 |
||
|
57415
|
57415
57047-95707 Rail, Floor Side, Rear RhFLOOR SIDE, REAR RH [10.1985 - 08.1988] KM30..DLX |
57047-95707 |
US $90.27 |
||
| replacement | |||||
|
57415
|
57415
57047-95704 Rail, Floor Side, Rear RhFLOOR SIDE, REAR RH [10.1985 - 08.1988] KM30..DLX |
57047-95704 |
US $90.27 |
||
|
57416
|
57416
57048-95707 Rail, Floor Side, Rear LhFLOOR SIDE, REAR LH [10.1985 - 08.1988] KM30..DLX |
57048-95707 |
US $90.27 |
||
| replacement | |||||
|
57416
|
57416
57048-95704 Rail, Floor Side, Rear LhFLOOR SIDE, REAR LH [10.1985 - 08.1988] KM30..DLX |
57048-95704 |
US $90.27 |
||
|
57685
|
57685
57685-95700 Dust Proof, Rear Floor Crossmember[10.1985 - 08.1987] CM35,KM3# |
57685-95700 |
US $11.36 |
||
|
58311
|
58311
58311-95788 Pan, Rear FloorREAR FLOOR [10.1985 - 08.1988] KM30..DLX; KM30..STD W/*REH |
58311-95788 |
US $618.80 |
||
|
58311
|
58311
58311-95G07 Pan, Rear FloorREAR FLOOR [10.1985 - 08.1988] KM30 W/FOLDING SEAT,W/*REH |
58311-95G07 |
US $618.80 |
||
|
9011910106
|
9011910106
90119-10106 New Genuine Part |
90119-10106 |
US $4.12 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.01 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4.48 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.33 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
