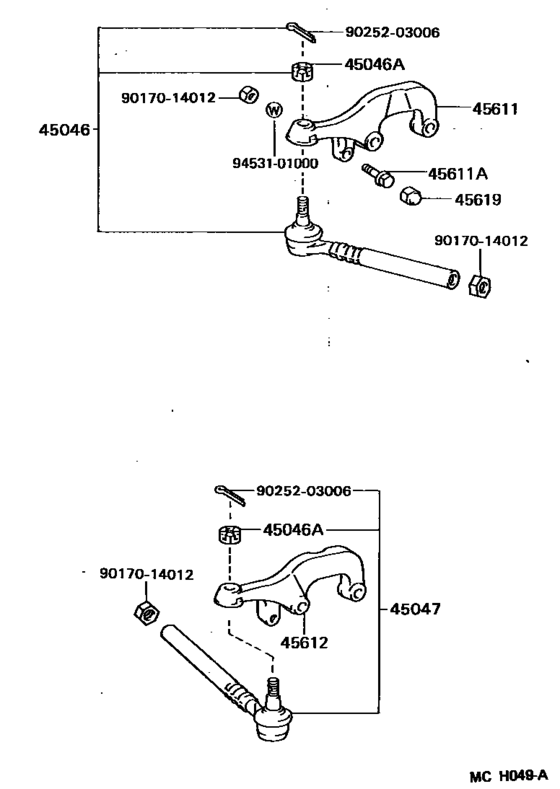

Front Steering Gear & Link ([08.1988 - ] (8808- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-29185 End Sub-Assy, Tie Rod[08.1988 - 01.1992] CM3#,KM3# |
45046-29185 |
from US $70.41 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1988 - 01.1992] CM3#,KM3# |
90171-12028 |
from US $1.37 |
||
|
45047
|
45047
45046-29185 End Sub-Assy, Tie Rod[08.1988 - 01.1992] CM3#,KM3# |
45046-29185 |
from US $70.41 |
||
|
45611
|
45611
45611-28030 Arm, Steering Knuckle, Rh[08.1988 - 01.1992] CM3#,KM3# |
45611-28030 |
US $75.71 |
||
| replacement | |||||
|
45611
|
45611
45611-28040 Arm, Steering Knuckle, Rh[08.1988 - 01.1992] CM3#,KM3# |
45611-28040 |
US $71.34 |
||
|
45611A
|
45611A
90106-10032 Bolt, Round Hexagon (For Steering Knuckle Stopper)[08.1988 - 01.1992] CM3#,KM3# |
90106-10032 |
US $3.05 |
||
|
45612
|
45612
45612-28030 Arm, Steering Knuckle, Lh[08.1988 - 01.1992] CM3#,KM3# |
45612-28030 |
US $75.71 |
||
| replacement | |||||
|
45612
|
45612
45612-28040 Arm, Steering Knuckle, Lh[08.1988 - 01.1992] CM3#,KM3# |
45612-28040 |
US $71.34 |
||
|
45619
|
45619
45619-14020 Cover, Front Knuckle Stopper[08.1988 - 01.1992] CM3#,KM3# |
45619-14020 |
from US $4.78 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9025203006
|
9025203006
90252-03006 New Genuine Part |
90252-03006 |
US $2.15 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
