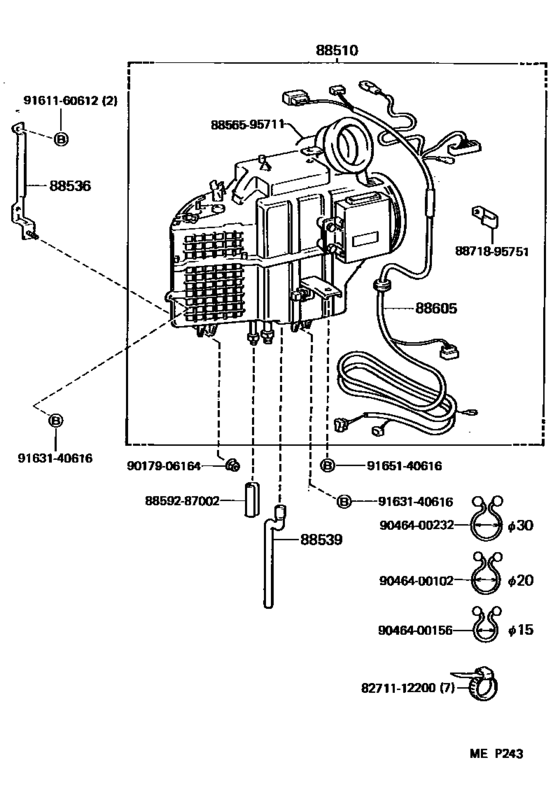

Heating & Air Conditioning - Cooler Unit ([03.1989 - ] (8903- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88510
|
88510
88510-95730
Unit Assy, Cooler
[03.1989 - 01.1992] KM30 |
88510-95730 |
— | ||
|
88536
|
88536
88688-95748
Bracket, Cooling Unit, No.1
[03.1989 - 01.1992] KM30 |
88688-95748 |
— | ||
|
88539
|
88539
88539-95709
Hose, Cooler Unit Drain, No.1
[03.1989 - 01.1992] KM30 FR |
88539-95709 |
— | ||
|
88605
|
88605
88605-95725
Harness Sub-Assy, Cooler Wiring, No.1
[03.1989 - 01.1992] KM30 |
88605-95725 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8856595711
|
8856595711
88565-95711
Bracket, Cooler Duct
|
88565-95711 |
— | ||
|
8859287002
|
8859287002
88592-87002
Packing, Cooling Unit, No.1
|
88592-87002 |
— | ||
|
8871895751
|
8871895751
88718-95751
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95751 |
— | ||
|
9017906164
|
9017906164
90179-06164
Nut, Wire Adjusting, No.1
|
90179-06164 |
— | ||
| replacement | |||||
|
9017906164
|
9017906164
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.78 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046400156
|
9046400156
90464-00156 Clamp, No.2(For Back Door Lock Control Cable) |
90464-00156 |
US $1.05 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
