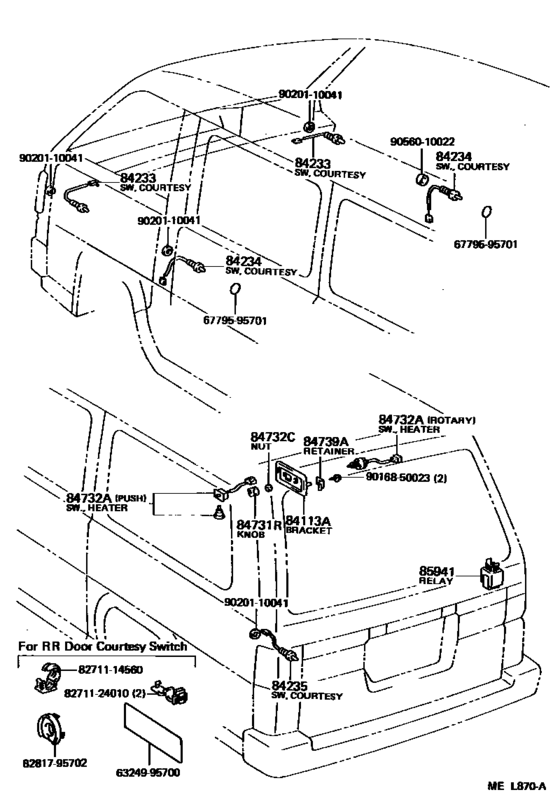

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84113A
|
84113A
84113-95703-03 Bracket, Switch, No.1[08.1988 - 01.1992] CM3#,KM3#..VSG GRAY,TRIM1# |
84113-95703-03 |
US $20.09 |
||
|
84113A
|
84113A
84113-95703-16 Bracket, Switch, No.1[08.1988 - 01.1992] CM30,KM30..DLX SABLE,TRIM4# |
84113-95703-16 |
US $20.09 |
||
|
84233
|
84233
84230-95703 Switch Assy, Courtesy Lamp (For Front Door)[08.1988 - 01.1992] CM3#,KM3# |
84230-95703 |
US $14.41 |
||
|
84234
|
84234
84230-95702 Switch Assy, Courtesy Lamp (For Rear Door)[08.1988 - 01.1992] CM3#,KM3#..V4D |
84230-95702 |
US $14.41 |
||
|
84235
|
84235
84230-95703 Switch Assy, Courtesy Lamp (For Front Door)[08.1988 - 01.1992] CM3#,KM3# |
84230-95703 |
US $14.41 |
||
|
84731R
|
84731R
84731-95700 Knob, Rear Heater Blower Switch[08.1988 - 01.1992] CM3#,KM3#..VSG |
84731-95700 |
US $8.59 |
||
| replacement | |||||
|
84731R
|
84731R
84731-12010 Knob, Heater Blower Switch[08.1988 - 01.1992] CM3#,KM3#..VSG |
84731-12010 |
from US $6.81 |
||
|
84732A
|
84732A
84730-95704 Switch, Rear Heater Blower[08.1988 - 01.1992] CM3#,KM3#..VSG INSTRUMENT PANEL |
84730-95704 |
US $65.67 |
||
|
84732A
|
84732A
84730-95J01 Switch, Rear Heater Blower[08.1988 - 01.1992] CM3#,KM3#..VSG RR TRIM,PUSH SW |
84730-95J01 |
US $71.20 |
||
|
84732A
|
84732A
84732-95703 Switch Assy, Heater Blower[08.1988 - 01.1992] CM3#,KM3#..VSG RR TRIM,ROTARY SW |
84732-95703 |
US $39.60 |
||
|
84732C
|
84732C
90170-11206 Nut, Heater Blower Switch[08.1988 - 01.1992] CM3#,KM3#..VSG |
90170-11206 |
US $1.93 |
||
|
84739A
|
84739A
55944-95701 Retainer, Switch[08.1988 - 01.1992] CM3#,KM3#..VSG |
55944-95701 |
US $4.22 |
||
|
85941
|
85941
85941-95700 Relay, Windshield Washer[08.1988 - 01.1992] CM3#,KM3# |
85941-95700 |
US $155.79 |
||
|
6324995700
|
6324995700
63249-95700 Supporter, Water Hose |
63249-95700 |
US $7.28 |
||
|
6779595701
|
6779595701
67795-95701 Bumper, Front Door Switch |
67795-95701 |
US $4.22 |
||
|
8271114560
|
8271114560
82711-14560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14560 |
US $1.97 |
||
|
8271124010
|
8271124010
82711-24010 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24010 |
US $12.36 |
||
|
8281795702
|
8281795702
82817-95702 Protector, Wiring Harness, No.1 |
82817-95702 |
US $3.79 |
||
|
9016850023
|
9016850023
90168-50023 SCREW |
90168-50023 |
US $1.97 |
||
|
9020110041
|
9020110041
90201-10041 New Genuine Part |
90201-10041 |
US $1.79 |
||
|
9056010022
|
9056010022
90560-10022 New Genuine Part |
90560-10022 |
US $2.33 |
||
