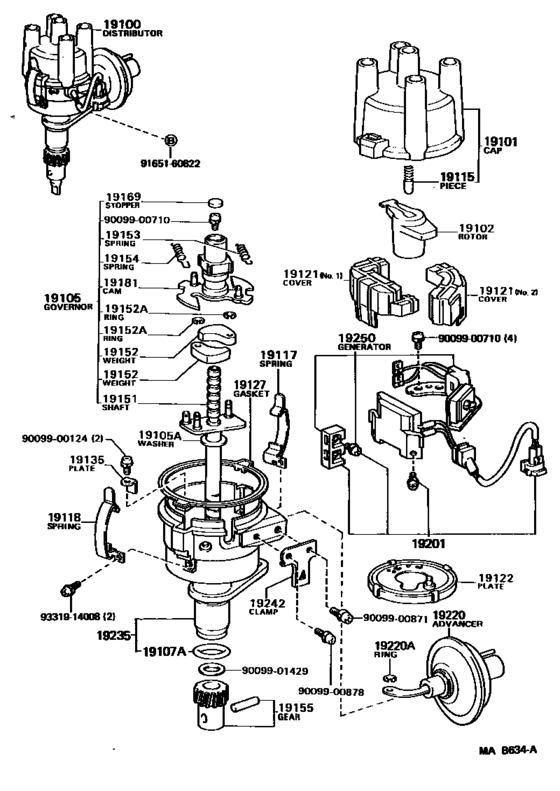

Distributor ([08.1988 - ] (8808- )5K) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19060-13090 Distributor Assy[08.1988 - 01.1992] 5K..KM3# |
19060-13090 |
US $1,163.34 |
||
|
19100
|
19100
19060-13120 Distributor Assy[08.1988 - 08.1990] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S AUSTRIA & SWITZERLAND SPEC |
19060-13120 |
US $1,164.80 |
||
|
19101
|
19101
19101-71020 Cap Sub-Assy, Distributor[08.1988 - 01.1992] 5K..KM3# |
19101-71020 |
US $42.98 |
||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[08.1988 - 01.1992] 5K..KM3# |
19102-26151 |
US $17.33 |
||
|
19105
|
19105
19105-13090 Governor Sub-Assy[08.1988 - 02.1989] 5K..KM3# |
19105-13090 |
US $152.88 |
||
|
19105
|
19105
19105-13101
Governor Sub-Assy
[08.1988 - 02.1989] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM36..5F..05S SWITZERLAND SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S SWITZERLAND SPEC OR AUSTRIA SPEC |
19105-13101 |
— | ||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[08.1988 - 02.1989] 5K..KM3# T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[08.1988 - 02.1989] 5K..KM3# T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[08.1988 - 02.1989] 5K..KM3# T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[08.1988 - 02.1989] 5K..KM3# T=2.3 |
90099-01412 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1988 - 03.1991] 5K..KM3# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1988 - 03.1991] 5K..KM3# |
90099-14090 |
from US $2.80 |
||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[03.1991 - 01.1992] 5K..KM3# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1988 - 01.1992] 5K..KM3# |
19115-50010 |
— | ||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[08.1988 - 01.1992] 5K..KM3# |
19117-24080 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[08.1988 - 01.1992] 5K..KM3# |
19117-24080 |
— | ||
|
19121
|
19121
19121-88260
Cover, Dust Proof
[08.1988 - 01.1992] 5K..KM3# NO.2 |
19121-88260 |
— | ||
|
19121
|
19121
19121-88261
Cover, Dust Proof
[08.1988 - 01.1992] 5K..KM3# NO.1 |
19121-88261 |
— | ||
|
19122
|
19122
19122-88263
Plate, Stationary, Distributor
[08.1988 - 01.1992] 5K..KM3# |
19122-88263 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[08.1988 - 01.1992] 5K..KM3# |
19127-15010 |
— | ||
|
19135
|
19135
19135-24080
Plate, Holder
[08.1988 - 01.1992] 5K..KM3# |
19135-24080 |
— | ||
|
19151
|
19151
19151-24081 Shaft, Governor[08.1988 - 02.1989] 5K..KM3# |
19151-24081 |
US $44.12 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[08.1988 - 01.1992] 5K..KM3# |
19152-63010 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[08.1988 - 01.1992] 5K..KM3# |
90099-07122 |
— | ||
|
19153
|
19153
19153-13090
Spring, Governor, A
[08.1988 - 01.1992] 5K..KM3# |
19153-13090 |
— | ||
|
19153
|
19153
19153-13101 Spring, Governor, AGOVERNOR, A [08.1988 - 08.1990] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S AUSTRIA & SWITZERLAND SPEC |
19153-13101 |
US $5.39 |
||
|
19154
|
19154
19154-13090
Spring, Governor, B
[08.1988 - 01.1992] 5K..KM3# |
19154-13090 |
— | ||
|
19154
|
19154
19154-13101 Spring, Governor, BGOVERNOR, B [08.1988 - 08.1990] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S AUSTRIA & SWITZERLAND SPEC |
19154-13101 |
US $5.39 |
||
|
19155
|
19155
19195-13060 Gear, Spiral, Distributor[08.1988 - 01.1992] 5K..KM3# |
19195-13060 |
US $42.66 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1988 - 01.1992] 5K..KM3# |
19169-63011 |
— | ||
|
19181
|
19181
19181-13011
Rotor, Distributor, Signal
[08.1988 - 03.1991] 5K..KM3# |
19181-13011 |
— | ||
|
19181
|
19181
19181-13040
Rotor, Distributor, Signal
[03.1991 - 01.1992] 5K..KM3# |
19181-13040 |
— | ||
|
19181
|
19181
19181-13070
Rotor, Distributor, Signal
[03.1991 - 01.1992] 5K..KM36..5F..05S SWITZERLAND SPEC; 5K..KM30..DLX;5K..KM36..LHD..5F..02S AUSTRIA & SWITZERLAND SPEC |
19181-13070 |
— | ||
|
19181
|
19181
19181-13101
Rotor, Distributor, Signal
[08.1988 - 08.1990] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S AUSTRIA & SWITZERLAND SPEC |
19181-13101 |
— | ||
|
19201
|
19201
89620-27031
Igniter
[08.1988 - 01.1992] 5K..KM3# |
89620-27031 |
— | ||
|
19220
|
19220
19220-13090 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1988 - 01.1992] 5K..KM3# |
19220-13090 |
US $50.09 |
||
|
19220
|
19220
19220-13120 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1988 - 08.1990] 5K..KM36..V5D..5F AUSTRIA SPEC; 5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S AUSTRIA & SWITZERLAND SPEC |
19220-13120 |
US $96.10 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1988 - 01.1992] 5K..KM3# |
90099-07109 |
— | ||
|
19235
|
19235
19235-13030 Housing, Distributor[02.1989 - 01.1992] 5K..KM3# |
19235-13030 |
US $189.28 |
||
|
19242
|
19242
19242-13080 Clamp, Cord[08.1988 - 01.1992] 5K..KM3# |
19242-13080 |
US $14.27 |
||
|
19250
|
19250
19250-13120
Generator Assy, Signal
[08.1988 - 01.1992] 5K..KM3# |
19250-13120 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009901429
|
9009901429
90099-01429
Washer, No.2(For Governor Shaft Thrust)
|
90099-01429 |
— | ||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.94 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
