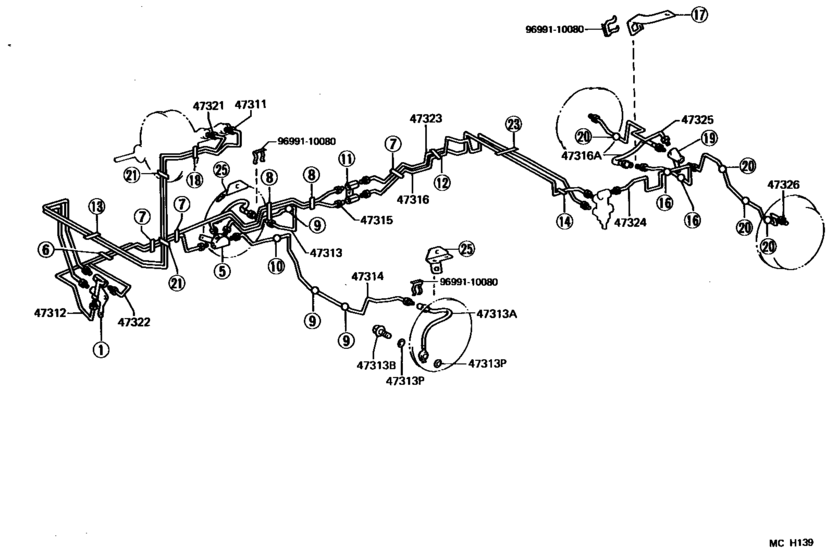

Brake Tube & Clamp ([08.1988 - ] SINGLE BOOSTER (8808- )LHD) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-27221 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47311-27221 |
US $24.90 |
||
|
47312
|
47312
47312-27170 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47312-27170 |
US $13.10 |
||
|
47313
|
47313
47313-27060 Tube, Front Brake, No.3[08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47313-27060 |
US $13.10 |
||
|
47313A
|
47313A
90947-02485
Hose, Flexible, No.1(For Front)
[08.1988 - 08.1990] CM30,KM3#..VSG;CM36..LHD..V4D..5F RH; KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT),RH |
90947-02485 |
— | ||
|
47313A
|
47313A
90947-02487
Hose, Flexible, No.1(For Front)
[08.1988 - 08.1990] CM30,KM3#..VSG;CM36..LHD..V4D..5F LH; KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT),LH |
90947-02487 |
— | ||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1988 - 01.1992] CM3#,KM3# |
90401-10015 |
from US $3.58 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[08.1988 - 01.1992] CM3#,KM3# |
90430-10074 |
from US $0.88 |
||
|
47314
|
47314
47314-27080 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47314-27080 |
US $19.95 |
||
|
47316A
|
47316A
96940-33555 Hose, Flexible, No.1(For Front)[08.1988 - 01.1992] CM3#,KM3# |
96940-33555 |
US $22.18 |
||
|
47321
|
47321
47321-27151 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47321-27151 |
US $24.90 |
||
|
47322
|
47322
47322-27220 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [08.1988 - 01.1992] CM3#,KM3#..VSG; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47322-27220 |
US $24.46 |
||
|
47323
|
47323
47323-27240 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [08.1988 - 01.1992] CM36,KM36..05S; CM36,KM36..LHD..V4D..5F..02S W(DISC 14" AD(T),9"LT) |
47323-27240 |
US $24.90 |
||
|
47324
|
47324
47324-27090
Tube, Rear Brake, No.4
[08.1988 - 01.1992] CM3#,KM3# |
47324-27090 |
— | ||
|
47325
|
47325
47325-27070 Tube, Rear Brake, No.5[08.1988 - 01.1992] CM36,KM36 |
47325-27070 |
US $13.10 |
||
|
47326
|
47326
47326-27060 Tube, Rear Brake, No.6[08.1988 - 01.1992] CM36,KM36 |
47326-27060 |
US $14.71 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
