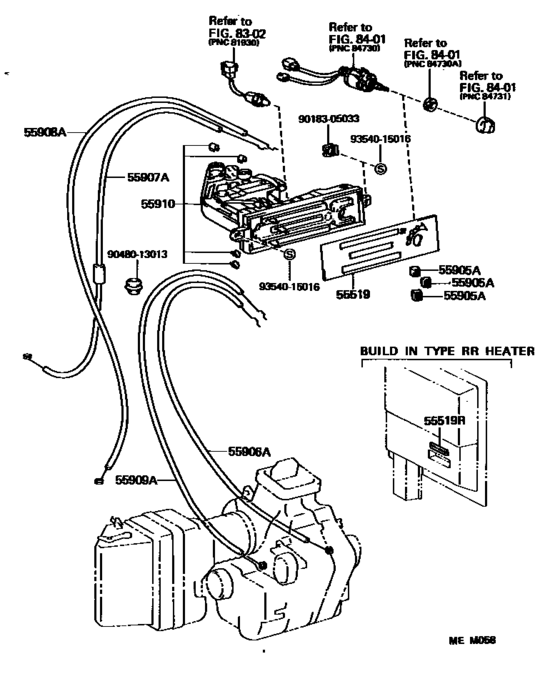

Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] (8808- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55519
|
55519
55519-95719 Plate, Heater Control Name[08.1988 - 01.1992] CM3#,KM3# |
55519-95719 |
US $21.11 |
||
|
55519R
|
55519R
55519-95J05 Plate, Heater Control Name[08.1988 - 01.1992] CM3#,KM3#..VSG |
55519-95J05 |
US $2.77 |
||
|
55905A
|
55905A
55905-10110 Knob, Heater Control[08.1988 - 01.1992] CM3#,KM3# DEF-VENT,WARM-COOL |
55905-10110 |
US $5.10 |
||
|
55905A
|
55905A
55905-95707 Knob, Heater Control[08.1988 - 01.1992] CM3#,KM3# FRESH-RECIRC |
55905-95707 |
US $5.82 |
||
|
55906A
|
55906A
55906-95708 Cable Sub-Assy, Defroster Damper ControlDEFROSTER DAMPER CONTROL [08.1988 - 01.1992] CM3#,KM3#..LHD |
55906-95708 |
US $8.30 |
||
|
55907A
|
55907A
55907-95710 Cable Sub-Assy, Water Valve ControlWATER VALVE CONTROL [08.1988 - 01.1992] CM3#,KM3#..LHD |
55907-95710 |
US $12.23 |
||
|
55908A
|
55908A
55908-95706 Cable Sub-Assy, Air Inlet Damper Control[08.1988 - 01.1992] CM3#,KM3# |
55908-95706 |
US $9.90 |
||
|
55909A
|
55909A
55909-95704 Cable Sub-Assy, Airmix Damper ControlAIRMIX DAMPER CONTROL [08.1988 - 01.1992] CM3#,KM3#..LHD |
55909-95704 |
US $9.90 |
||
|
55910
|
55910
55910-95720 Control Assy, Heater Or Boost VentilatorHEATER OR BOOST VENTILATOR [08.1988 - 01.1992] CM3#,KM3#..LHD |
55910-95720 |
US $58.39 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $1.43 |
||
|
9048013013
|
9048013013
90480-13013 Grommet(For Heater Control Cable) |
90480-13013 |
from US $5.67 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
