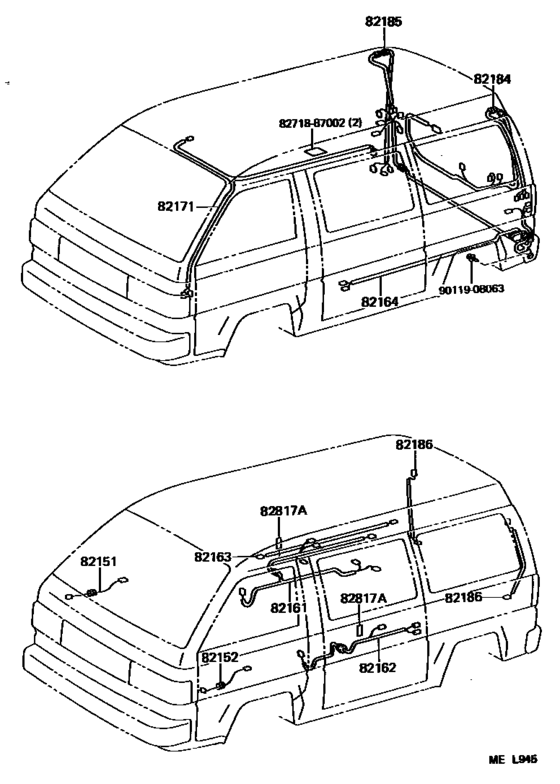

Wiring & Clamp ([08.1988 - ] (8808- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- KM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-95702 Wire, Front Door, RhFRONT DOOR, RH [08.1988 - 01.1992] CM3#,KM3# |
82151-95702 |
US $123.76 |
||
|
82152
|
82152
82152-95700 Wire, Front Door, LhFRONT DOOR, LH [08.1988 - 01.1992] CM3#,KM3# |
82152-95700 |
US $123.76 |
||
|
82161
|
82161
82161-95711 Wire, FloorFLOOR [08.1988 - 01.1992] CM3#,KM3#..LHD |
82161-95711 |
US $33.05 |
||
|
82162
|
82162
82162-95703 Wire, Floor, No.2FLOOR, NO.2 [08.1988 - 01.1992] CM36,KM36..05S; KM30..STD W(RR HEATER); CM30,KM30..DLX W(RR NO.1 SEAT-2FOLDING TYPE) |
82162-95703 |
US $339.25 |
||
|
82163
|
82163
82163-95700 Wire, Floor, No.3[08.1988 - 01.1992] CM3#,KM3#..LHD |
82163-95700 |
US $6.99 |
||
|
82164
|
82164
82164-95780 Wire, FrameFRAME [08.1988 - 01.1992] CM36,KM36 |
82164-95780 |
US $522.70 |
||
|
82164
|
82164
82164-95781 Wire, FrameFRAME [08.1988 - 01.1992] CM30,KM30; CM36,KM36 W(REAR WIPER) |
82164-95781 |
US $522.70 |
||
|
82171
|
82171
82171-95702 Wire, Roof, No.1[08.1988 - 01.1992] CM3#,KM3#..MRF |
82171-95702 |
US $55.18 |
||
|
82184
|
82184
82184-95718 Wire, Back Door, No.1BACK DOOR, NO.1 [08.1988 - 01.1992] CM36,KM36..LHD..MRF |
82184-95718 |
US $123.76 |
||
|
82184
|
82184
82184-95728 Wire, Back Door, No.1BACK DOOR, NO.1 [08.1988 - 01.1992] CM30,KM30; CM36,KM36..LHD..MRF W(REAR WIPER) |
82184-95728 |
US $123.76 |
||
|
82186
|
82186
82186-95703 Wire, Rear Window, No.1[08.1988 - 01.1992] CM3#,KM3# |
82186-95703 |
US $6.99 |
||
|
82817A
|
82817A
63249-95700 Supporter, Water Hose[08.1988 - 01.1992] CM3#,KM3#..VSG |
63249-95700 |
US $7.28 |
||
|
8271887002
|
8271887002
82718-87002
Protector, Wiring Harness, No.12
|
82718-87002 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
