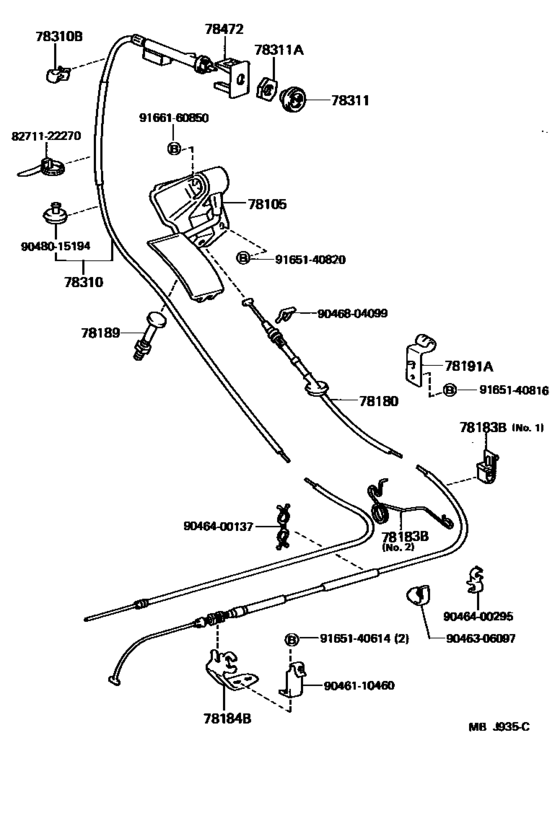

Accelerator Link ([10.1985 - ] (8510- )KM36..RHD) Diagram Toyota LITEACE
- Year
- 1987 - 1988
- Sales region
- Europe
- Frame
- KM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1987
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78105
|
78105
78105-95706 Rod Sub-Assy, Accelerator Connecting, No.3[10.1985 - 08.1988] CM35,KM36..RHD |
78105-95706 |
US $99.01 |
||
|
78180
|
78180
78150-95720 Wire Assy, Accelerator[10.1985 - 08.1988] KM36..RHD |
78150-95720 |
US $81.54 |
||
| replacement | |||||
|
78180
|
78180
78150-27010 Wire Assy, Accelerator[10.1985 - 08.1988] KM36..RHD |
78150-27010 |
US $81.54 |
||
|
78183B
|
78183B
78183-95705 Clamp, Accelerator Control Cable[10.1985 - 08.1988] CM35,KM3# NO.1 |
78183-95705 |
US $5.24 |
||
|
78183B
|
78183B
78183-95710 Clamp, Accelerator Control Cable[10.1985 - 08.1988] KM36..RHD NO.2 |
78183-95710 |
US $21.99 |
||
|
78184B
|
78184B
78184-95705 Bracket, Accelerator Control Cable[10.1985 - 08.1988] KM3# |
78184-95705 |
US $29.27 |
||
|
78189
|
78189
78208-95702 Bolt, Accelerator Pedal Stopper[10.1985 - 08.1988] CM35,KM3# |
78208-95702 |
US $8.74 |
||
|
78191A
|
78191A
78183-95707 Clamp, Accelerator Control Cable[10.1985 - 08.1988] CM35,KM36..RHD |
78183-95707 |
US $5.82 |
||
|
78310
|
78310
78304-95703 Cable Assy, ChokeCHOKE [08.1986 - 06.1987] KM36..RHD |
78304-95703 |
US $61.59 |
||
|
78310
|
78310
78304-95706 Cable Assy, ChokeCHOKE [06.1987 - 08.1988] KM36..RHD |
78304-95706 |
US $59.70 |
||
|
78310B
|
78310B
78183-95701 Clamp, Accelerator Control Cable[10.1985 - 06.1987] KM36..RHD |
78183-95701 |
US $3.49 |
||
|
78311
|
78311
78303-95700 Knob, Choke Control Cable[10.1985 - 08.1988] KM3# |
78303-95700 |
US $9.90 |
||
|
78311A
|
78311A
78314-95010 Nut, Choke[10.1985 - 08.1988] KM3# |
78314-95010 |
from US $1.88 |
||
|
78472
|
78472
78472-95700-06 Support, Throttle Control Cable[10.1985 - 08.1988] KM3# BROWN,BROWN,TRIM4# |
78472-95700-06 |
US $5.82 |
||
| replacement | |||||
|
78472
|
78472
78472-95700-C0 Support, Throttle Control CableTHROTTLE CONTROL CABLE [10.1985 - 08.1988] KM3# BROWN,BROWN,TRIM4# |
78472-95700-C0 |
US $5.82 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
9046110460
|
9046110460
90461-10460 New Genuine Part |
90461-10460 |
US $8.01 |
||
|
9046306097
|
9046306097
90463-06097
New Genuine Part
|
90463-06097 |
— | ||
|
9046400137
|
9046400137
90464-00137 New Genuine Part |
90464-00137 |
US $1.89 |
||
|
9046400295
|
9046400295
90464-00295
New Genuine Part
|
90464-00295 |
— | ||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9048015194
|
9048015194
90480-15194 Grommet(For Hood Lock Control Cable) |
90480-15194 |
US $3.20 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9166160850
|
9166160850
91661-60850
New Genuine Part
|
91661-60850 |
— | ||
| replacement | |||||
|
9166160850
|
9166160850
91631-60850 BOLT WWASHER |
91631-60850 |
from US $1.60 |
||
