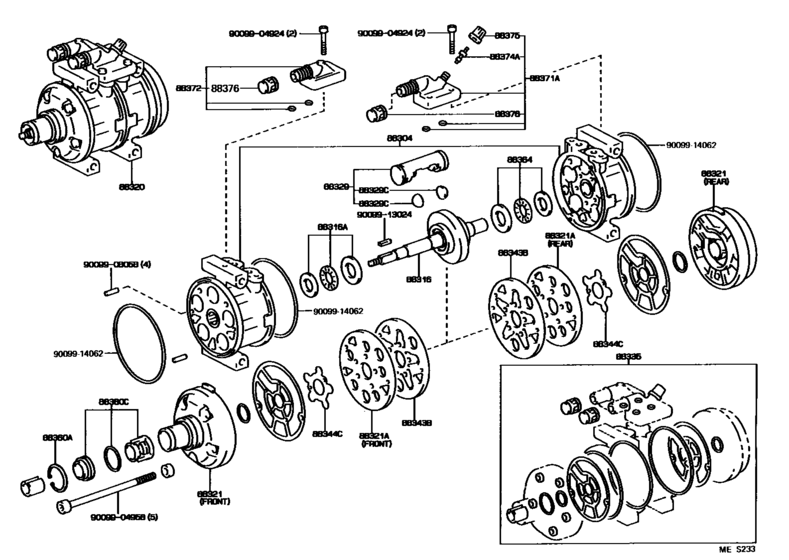

Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- KM37
- grade
- STD
- body
- BUS
- Roof
- SRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 09S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14021
Cylinder Sub-Assy, Cooler Compressor
[08.1988 - 04.1998] KM3#..LHD |
88304-14021 |
— | ||
|
88316
|
88316
88316-14011
Crankshaft, Cooler Compressor
[08.1988 - 04.1998] KM30,36..LHD;CM36,KM37..(4H,5F)..(02S,09S) |
88316-14011 |
— | ||
|
88316A
|
88316A
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1988 - 04.1998] KM3#..LHD |
88366-14010 |
— | ||
|
88320
|
88320
88320-27090
Compressor Assy, Cooler
[08.1988 - 05.1990] KM3#..LHD |
88320-27090 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-27091
Compressor Assy, Cooler
[08.1988 - 05.1990] KM3#..LHD |
88320-27091 |
— | ||
|
88320
|
88320
88320-27091
Compressor Assy, Cooler
[05.1990 - 04.1998] KM3#..LHD |
88320-27091 |
— | ||
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[08.1988 - 05.1990] KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) FR |
88321-14011 |
— | ||
|
88321
|
88321
88321-30300
Head, Cooler Compressor Cylinder
[05.1990 - 04.1998] KM3#..LHD FR |
88321-30300 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) RR |
88322-14011 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) FR |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) RR |
88342-14010 |
— | ||
|
88329
|
88329
88301-14020
Piston Sub-Assy, Cooler Compressor
[08.1988 - 04.1998] KM3#..LHD |
88301-14020 |
— | ||
|
88329C
|
88329C
88313-14010
Shoe, Piston
[08.1988 - 04.1998] KM3#..LHD |
88313-14010 |
— | ||
|
88335
|
88335
04881-10010
Gasket Kit, Cooler Compressor Overhaul
[08.1988 - 04.1998] KM30;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37..(4H,5F)..(02S,09S) |
04881-10010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[08.1988 - 04.1998] KM30;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37..(4H,5F)..(02S,09S) |
88335-28020 |
— | ||
|
88343B
|
88343B
88343-14011
Reed, Suction Valve
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) |
88343-14011 |
— | ||
|
88344C
|
88344C
88344-14011
Reed Sub-Assy, Valve
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) |
88344-14011 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1988 - 04.1998] CM36..5H;CM36..SRF;KM30,37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-30290
Seal Assy, Shaft
[05.1990 - 04.1998] KM3#..LHD |
88360-30290 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-30310
Seal Assy, Shaft
[05.1990 - 04.1998] KM3#..LHD |
88360-30310 |
— | ||
|
88360C
|
88360C
88360-40010
Seal Assy, Cooler Compressor Shaft
[08.1988 - 05.1990] KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) |
88360-40010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-26020 Seal Assy, Cooler Compressor Shaft[08.1988 - 05.1990] KM36,37..4H,5F;CM36,KM30,YM3#..MRF..(4FC,5F) |
88360-26020 |
US $128.54 |
||
|
88364
|
88364
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1988 - 04.1998] KM3#..LHD |
88366-14010 |
— | ||
|
88371A
|
88371A
88371-28030
Valve, Suction
[08.1988 - 04.1998] KM3#..LHD |
88371-28030 |
— | ||
|
88372
|
88372
88372-27030
Valve, Discharge
[08.1988 - 04.1998] KM3#..LHD |
88372-27030 |
— | ||
|
88374A
|
88374A
88374-12020
Valve, Service, No.1
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) |
88374-12020 |
— | ||
| replacement | |||||
|
88374A
|
88374A
88374-20020 Valve, Service, No.1[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) |
88375-30270 |
— | ||
|
88376
|
88376
88376-26010
Cap, Blind
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) SUCTION |
88376-26010 |
— | ||
|
88376
|
88376
88376-26020
Cap, Blind
[08.1988 - 04.1998] KM30,YM35;KM36..06S..ARL;KM36..SRF..(4H,5F);CM36,KM37,YM30..(4FC,4H,5F)..(02S,08S, 09S) DISCHARGE |
88376-26020 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009904958
|
9009904958
90099-04958
Bolt, Through
|
90099-04958 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9009913024
|
9009913024
90099-13024
Key, Compressor Crankshaft
|
90099-13024 |
— | ||
|
9009914062
|
9009914062
90099-14062
New Genuine Part
|
90099-14062 |
— | ||
