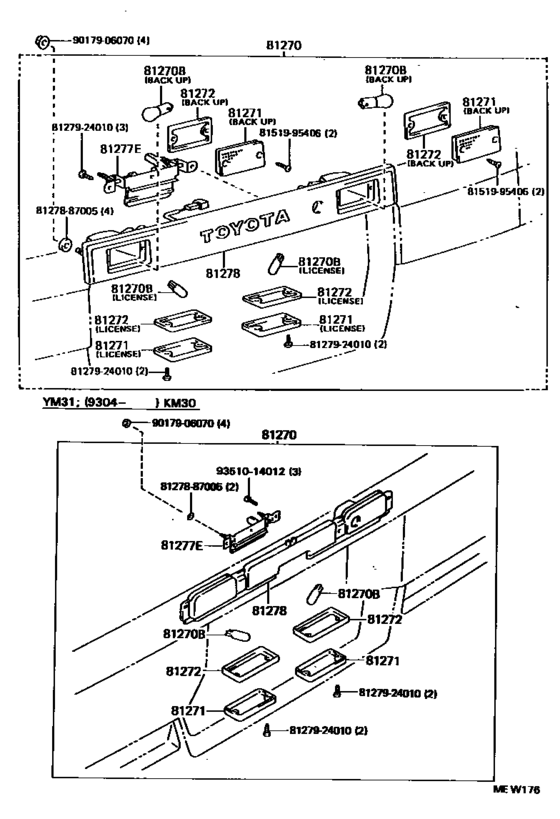

Rear License Plate Lamp ([08.1988 - ] (8808- )) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- KM37
- grade
- STD
- body
- BUS
- Roof
- SRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 09S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81270
|
81270
81270-95713
Lamp Assy, License Plate
[08.1988 - 04.1993] CM36,KM3#,YM30,35 |
81270-95713 |
— | ||
|
81270B
|
81270B
99132-11210 Bulb (12V 21W)[08.1988 - 04.1993] CM36,KM3#,YM30,35 12V 21W,BACK UP |
99132-11210 |
from US $2.81 |
||
|
81270B
|
81270B
99132-12050 Bulb (12V 5W)[08.1988 - 04.1993] YM31 12V 5W; CM36,KM3#,YM30,35 12V 5W,LICENSE |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81270B
|
81270B
90080-81053 Bulb(For Clearance Lamp)[08.1988 - 04.1993] YM31 12V 5W; CM36,KM3#,YM30,35 12V 5W,LICENSE |
90080-81053 |
US $1.01 |
||
|
81271
|
81271
81271-95709 Lens, License Plate Lamp[08.1988 - 04.1993] YM31; CM36,KM3#,YM30,35 LICENSE |
81271-95709 |
US $4.25 |
||
|
81271
|
81271
81277-95709
Lens, License Plate Lamp
[08.1988 - 04.1993] CM36,KM3#,YM30,35 BACK UP |
81277-95709 |
— | ||
|
81272
|
81272
81272-95709 Gasket, License Plate Lamp Lens[08.1988 - 04.1993] YM31; CM36,KM3#,YM30,35 LICENSE |
81272-95709 |
US $2.80 |
||
|
81272
|
81272
81276-95709 Gasket, License Plate Lamp Lens[08.1988 - 04.1993] CM36,KM3#,YM30,35 BACK UP |
81276-95709 |
US $4.66 |
||
|
81277E
|
81277E
81278-95709
Handle, License Plate Lamp
[08.1988 - 04.1998] CM36,KM3#,YM3# |
81278-95709 |
— | ||
|
81278
|
81278
81273-95713 Cover, License Plate Lamp[08.1988 - 04.1993] CM36,KM3#,YM30,35 |
81273-95713 |
US $141.23 |
||
|
8127887005
|
8127887005
81278-87005 Cover, License Plate Lamp |
81278-87005 |
US $1.61 |
||
|
8127924010
|
8127924010
81279-24010 Screw, Side Turn Signal Lamp |
81279-24010 |
US $1.79 |
||
|
8151995406
|
8151995406
81519-95406 Bracket, Front Turn Signal Lamp, Rh |
81519-95406 |
US $3.93 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $0.96 |
||
