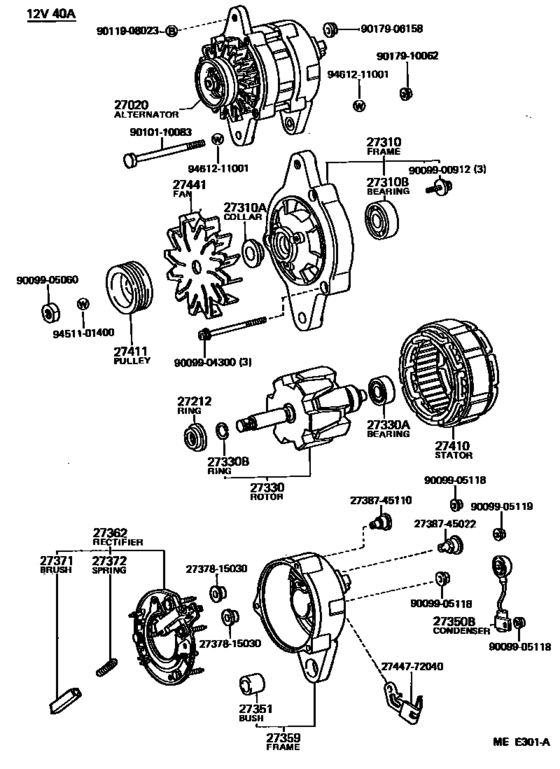

Alternator ([02.1984 - ] (8402- )1Y) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-72030 Alternator Assy[02.1984 - 08.1985] 1Y..YM20 12V 40A,12V 40A |
27020-72030 |
US $809.54 |
||
|
27212
|
27212
27212-39050
Ring, Space(For Alternator Rotor)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27212-39050 |
— | ||
|
27310
|
27310
27310-72030
Frame Assy, Drive End, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27310-72030 |
— | ||
|
27310A
|
27310A
27412-63030
Collar Or Nut(For Alternator Drive End Frame)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27412-63030 |
— | ||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-10142 |
— | ||
|
27330
|
27330
27330-26050
Rotor Assy, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27330-26050 |
— | ||
|
27330A
|
27330A
90099-10111
Bearing(For Alternator Rotor)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-10111 |
— | ||
| replacement | |||||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-10116 |
— | ||
|
27330B
|
27330B
90099-07048
Ring, Snap(For Alternator Rotor)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-07048 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27351-38051 |
— | ||
|
27359
|
27359
27359-72030
Frame, Alternator Rectifier End
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27359-72030 |
— | ||
|
27362
|
27362
27362-18011
Rectifier Assy, W/brush
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27362-18011 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[10.1979 - 08.1985] 4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
27371-31011 |
from US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[10.1979 - 08.1985] 4K,1Y,2YC..KM20,YM2# 12V 30A,40A,50A |
27372-31011 |
— | ||
|
27410
|
27410
27410-15030
Stator Assy, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27410-15030 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-38120
Stator Assy, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27410-38120 |
— | ||
|
27411
|
27411
27411-72040
Pulley, Alternator
[11.1983 - 08.1985] 1Y,2YC..YM2# 12V 40A,50A |
27411-72040 |
— | ||
|
27441
|
27441
27441-34030
Fan, Alternator
[02.1984 - 08.1985] 1Y..YM20 12V 40A |
27441-34030 |
— | ||
|
2737815030
|
2737815030
27378-15030
Insulator, Alternator, No.1
|
27378-15030 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
2744772040
|
2744772040
27447-72040
Clip, Alternator Cord
|
27447-72040 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110083
|
9010110083
90101-10083 BOLT |
90101-10083 |
US $4.95 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910062
|
9017910062
90179-10062 New Genuine Part |
90179-10062 |
US $3.35 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
