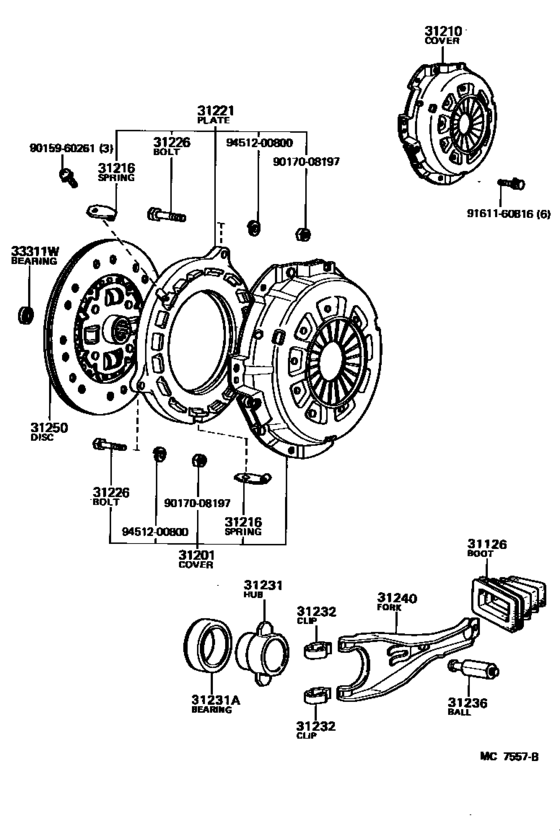

Clutch & Release Fork ([11.1983 - ] (8311- )YM2#..5F) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20060 Boot, Clutch Release Fork[11.1983 - 08.1985] YM2#..5F |
31126-20060 |
from US $15.02 |
||
|
31201
|
31201
31201-39047 Cover Sub-Assy, Clutch[02.1984 - 08.1985] YM20 |
31201-39047 |
US $214.03 |
||
|
31210
|
31210
31210-35042 Cover Assy, Clutch[02.1984 - 08.1985] YM20 |
31210-35042 |
US $180.54 |
||
| replacement | |||||
|
31210
|
31210
31210-22121 Cover Assy, Clutch[02.1984 - 08.1985] YM20 |
31210-22121 |
from US $170.57 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[10.1982 - 08.1985] CM20,YM2#..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-39045 Plate, Clutch Pressure[02.1984 - 08.1985] YM20 |
31221-39045 |
US $68.43 |
||
| replacement | |||||
|
31221
|
31221
31221-35020 Plate, Clutch Pressure[02.1984 - 08.1985] YM20 |
31221-35020 |
US $65.96 |
||
|
31226
|
31226
90101-08022
Bolt, Clutch Pressure Plate
[08.1983 - 08.1985] CM20,YM2#..MTM |
90101-08022 |
— | ||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[11.1983 - 08.1985] YM2#..5F |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[10.1982 - 08.1985] CM20,KM20,YM2#..MTM |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[10.1982 - 08.1985] CM20,YM2#..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[07.1981 - 08.1985] CM20,KM20,YM2#..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20070
Fork Assy, Clutch Release
[11.1983 - 08.1985] YM2#..5F |
31204-20070 |
— | ||
| replacement | |||||
|
31240
|
31240
31204-20071 Fork Sub-Assy, Clutch Release[11.1983 - 08.1985] YM2#..5F |
31204-20071 |
from US $21.58 |
||
|
31240
|
31240
31204-20071 Fork Sub-Assy, Clutch Release[08.1985 - 08.1985] YM2#..5F |
31204-20071 |
from US $21.58 |
||
|
31250
|
31250
31250-35061
Disc Assy, Clutch
[11.1983 - 02.1985] YM2#..5F |
31250-35061 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-28122 Disc Assy, Clutch[11.1983 - 02.1985] YM2#..5F |
31250-28122 |
from US $92.09 |
||
|
31250
|
31250
31250-35062
Disc Assy, Clutch
[02.1985 - 08.1985] YM2#..5F |
31250-35062 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-28122 Disc Assy, Clutch[02.1985 - 08.1985] YM2#..5F |
31250-28122 |
from US $92.09 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[11.1983 - 08.1985] YM2#..5F |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[11.1983 - 08.1985] YM2#..5F |
90363-12024 |
from US $5.91 |
||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
