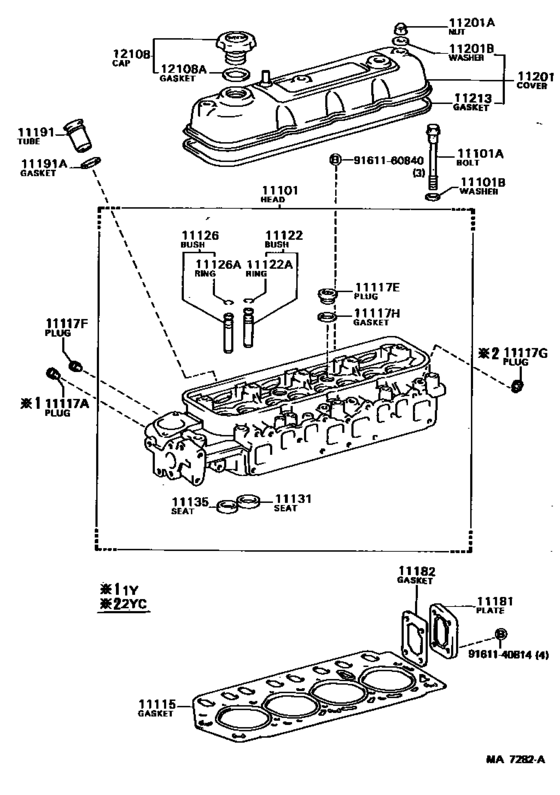

Cylinder Head ([11.1983 - ] (8311- )1Y,2YC) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-71020 Head Sub-Assy, Cylinder[02.1984 - 08.1985] 1Y..YM20 |
11101-71020 |
US $1,007.55 |
||
| replacements | |||||
|
11101
|
11101
90340-18005 Plug, W/head Straight Screw, No.3[02.1984 - 08.1985] 1Y..YM20 |
90340-18005 |
US $6.99 |
||
|
11101
|
11101
11101-71010 Head Sub-Assy, Cylinder[02.1984 - 08.1985] 1Y..YM20 |
11101-71010 |
US $1,110.93 |
||
|
11101A
|
11101A
90105-12056 Bolt(For Cylinder Head Set)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90105-12056 |
from US $5.05 |
||
|
11101B
|
11101B
90201-13021 Washer, Plate(For Cylinder Head Set)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90201-13021 |
US $3.52 |
||
|
11115
|
11115
11115-71010 Gasket, Cylinder Head[11.1983 - 08.1985] 1Y,2YC..YM2# |
11115-71010 |
US $82.99 |
||
| replacement | |||||
|
11115
|
11115
11115-73041 Gasket, Cylinder Head[11.1983 - 08.1985] 1Y,2YC..YM2# |
11115-73041 |
from US $57.68 |
||
|
11115
|
11115
11115-71011 Gasket, Cylinder Head[08.1985 - 08.1985] 1Y,2YC..YM2# |
11115-71011 |
US $81.54 |
||
| replacement | |||||
|
11115
|
11115
11115-73041 Gasket, Cylinder Head[08.1985 - 08.1985] 1Y,2YC..YM2# |
11115-73041 |
from US $57.68 |
||
|
11117A
|
11117A
90344-53002 Plug, W/head Taper Screw, No.1[02.1984 - 07.1984] 1Y..YM20 |
90344-53002 |
US $2.18 |
||
|
11117A
|
11117A
90344-53011 Plug, W/head Taper Screw, No.1[07.1984 - 08.1985] 1Y..YM20 |
90344-53011 |
from US $3.84 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[11.1983 - 08.1985] 1Y,2YC..YM2# |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90340-16002
Plug, W/head Straight Screw, No.2
[11.1983 - 08.1985] 1Y,2YC..YM2# |
90340-16002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90430-20004 |
from US $1.01 |
||
|
11122
|
11122
11122-71020 Bush, Intake Valve Guide[11.1983 - 08.1985] 1Y,2YC..YM2# STD,STD |
11122-71020 |
US $13.76 |
||
|
11122
|
11122
11123-71020 Bush, Intake Valve Guide[11.1983 - 08.1985] 1Y,2YC..YM2# O/S 0.05,O/S 0.05 |
11123-71020 |
US $11.50 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[10.1979 - 01.1985] 1C..CM20; 4K..KM20; 1Y,2YC..YM2# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-71020 Bush, Exhaust Valve Guide[11.1983 - 08.1985] 1Y,2YC..YM2# STD,STD |
11126-71020 |
US $13.76 |
||
|
11126
|
11126
11127-71020 Bush, Exhaust Valve Guide[11.1983 - 08.1985] 1Y,2YC..YM2# O/S 0.05,O/S 0.05 |
11127-71020 |
US $11.50 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[10.1979 - 01.1985] 1C..CM20; 4K..KM20; 1Y,2YC..YM2# |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-63010 Seat, Intake Valve[11.1983 - 08.1985] 1Y,2YC..YM2# STD,STD |
11131-63010 |
US $18.20 |
||
|
11131
|
11131
11132-63010 Seat, Intake Valve[11.1983 - 08.1985] 1Y,2YC..YM2# O/S 0.03,O/S 0.03 |
11132-63010 |
US $18.20 |
||
|
11135
|
11135
11135-71010 Seat, Exhaust Valve[11.1983 - 08.1985] 1Y,2YC..YM2# STD,STD |
11135-71010 |
US $27.37 |
||
|
11135
|
11135
11136-71010 Seat, Exhaust Valve[11.1983 - 08.1985] 1Y,2YC..YM2# O/S 0.03,O/S 0.03 |
11136-71010 |
US $41.93 |
||
|
11181
|
11181
11181-71010 Plate, Cylinder Head, Rear[11.1983 - 08.1985] 1Y,2YC..YM2# |
11181-71010 |
US $54.16 |
||
|
11182
|
11182
11182-71010
Gasket, Cylinder Head Rear Plate
[11.1983 - 08.1985] 1Y,2YC..YM2# |
11182-71010 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-71011 Gasket, Cylinder Head Rear Plate[11.1983 - 08.1985] 1Y,2YC..YM2# |
11182-71011 |
US $8 |
||
|
11191
|
11191
11191-22010 Tube, Spark Plug[10.1979 - 08.1985] 4K..KM20; 1Y,2YC..YM2# |
11191-22010 |
from US $7.68 |
||
|
11191A
|
11191A
90430-31141
Gasket(For Spark Plug Tube)
[10.1979 - 08.1985] 4K..KM20; 1Y,2YC..YM2# |
90430-31141 |
— | ||
| replacement | |||||
|
11191A
|
11191A
90430-31003 Gasket(For Spark Plug Tube)[10.1979 - 08.1985] 4K..KM20; 1Y,2YC..YM2# |
90430-31003 |
from US $1.48 |
||
|
11201
|
11201
11201-79035 Cover Sub-Assy, Cylinder Head[11.1983 - 08.1985] 1Y,2YC..YM2# |
11201-79035 |
US $152.88 |
||
| replacements | |||||
|
11201
|
11201
11201-71012 Cover Sub-Assy, Cylinder Head[11.1983 - 08.1985] 1Y,2YC..YM2# |
11201-71012 |
US $85.84 |
||
|
11201
|
11201
90210-09019 Washer, Seal(For Cylinder Head Cover)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90210-09019 |
from US $1.29 |
||
|
11201
|
11201
11213-71020 Gasket, Cylinder Head Cover[11.1983 - 08.1985] 1Y,2YC..YM2# |
11213-71020 |
from US $14.56 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90176-08007 |
from US $1.56 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[11.1983 - 08.1985] 1Y,2YC..YM2# |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-71020 Gasket, Cylinder Head Cover[11.1983 - 08.1985] 1Y,2YC..YM2# |
11213-71020 |
from US $14.56 |
||
|
12108
|
12108
12180-71010 Cap Sub-Assy, Oil Filler[11.1983 - 06.1985] 1Y,2YC..YM2# |
12180-71010 |
US $13.54 |
||
| replacement | |||||
|
12108
|
12108
12180-70020 Cap Sub-Assy, Oil Filler[11.1983 - 06.1985] 1Y,2YC..YM2# |
12180-70020 |
from US $15.19 |
||
|
12108
|
12108
12180-71011 Cap Sub-Assy, Oil Filler[06.1985 - 08.1985] 1Y,2YC..YM2# |
12180-71011 |
US $13.69 |
||
| replacement | |||||
|
12108
|
12108
12180-70020 Cap Sub-Assy, Oil Filler[06.1985 - 08.1985] 1Y,2YC..YM2# |
12180-70020 |
from US $15.19 |
||
|
12108A
|
12108A
12195-71010 Gasket(For Oil Filler Cap)[11.1983 - 06.1985] 1Y,2YC..YM2# |
12195-71010 |
US $12.38 |
||
| replacement | |||||
|
12108A
|
12108A
12195-71020 Gasket(For Oil Filler Cap)[11.1983 - 06.1985] 1Y,2YC..YM2# |
12195-71020 |
US $13.98 |
||
|
12108A
|
12108A
12195-71020 Gasket(For Oil Filler Cap)[06.1985 - 08.1985] 1Y,2YC..YM2# |
12195-71020 |
US $13.98 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
