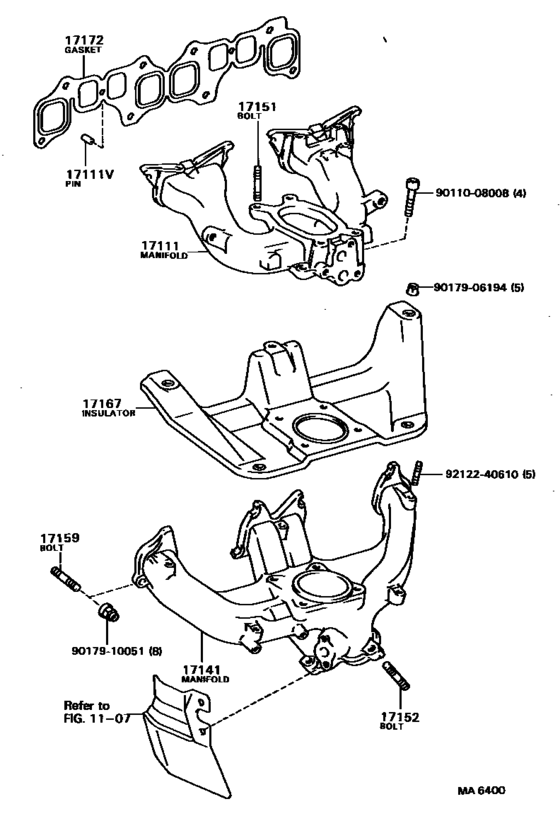

Manifold ([11.1983 - ] (8311- )1Y,2YC) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-71020
Manifold, Intake
[02.1984 - 08.1985] 1Y..YM20 |
17111-71020 |
— | ||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[11.1983 - 08.1985] 1Y,2YC..YM2# |
90250-08120 |
from US $1.07 |
||
|
17141
|
17141
17141-71020 Manifold, Exhaust[11.1983 - 08.1985] 1Y,2YC..YM2# |
17141-71020 |
US $324.98 |
||
|
17151
|
17151
92122-40835 Bolt, Stud(For Manifold To Carburetor)[11.1983 - 08.1985] 1Y,2YC..YM2# |
92122-40835 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[10.1982 - 08.1985] 1C..CM20; 1Y,2YC..YM2# |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[11.1983 - 08.1985] 1Y,2YC..YM2# |
90116-10063 |
US $3.68 |
||
|
17167
|
17167
17167-71020 Insulator, Exhaust Manifold Heat, No.1[11.1983 - 08.1985] 1Y,2YC..YM2# |
17167-71020 |
from US $72.33 |
||
|
17172
|
17172
17172-71010
Gasket, Manifold To Cylinder Head
[11.1983 - 06.1985] 1Y,2YC..YM2# |
17172-71010 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[11.1983 - 06.1985] 1Y,2YC..YM2# |
17172-71011 |
from US $17.18 |
||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[06.1985 - 08.1985] 1Y,2YC..YM2# |
17172-71011 |
from US $17.18 |
||
|
9011008008
|
9011008008
90110-08008 BOLT |
90110-08008 |
US $2.77 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.16 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.08 |
||
