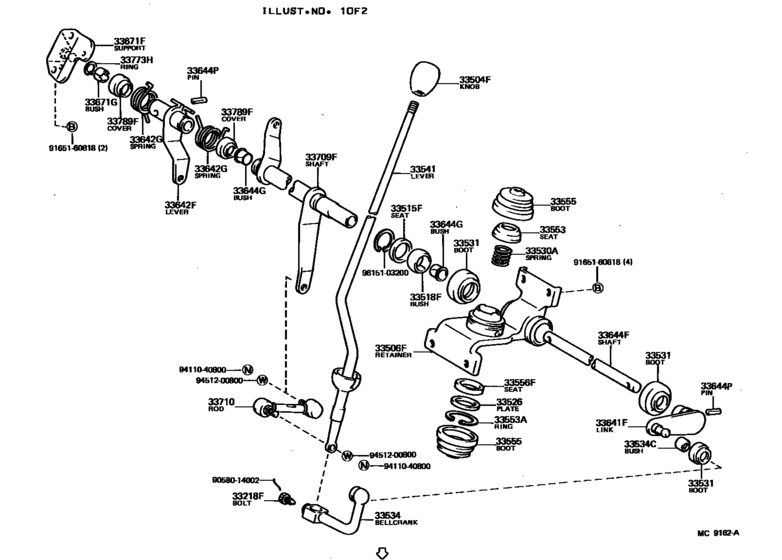

Shift Lever & Retainer ([10.1982 - ] (8210- )RHD..5F) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33218F
|
33218F
33218-35010 Bolt, Shift Lever Lock[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33218-35010 |
US $4.72 |
||
|
33504F
|
33504F
33504-22111-35
Knob Sub-Assy, Shift Lever
[11.1983 - 08.1985] YM2#..V4D BEIGE,BEIGE |
33504-22111-35 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-14050-B8 Knob Sub-Assy, Shift Lever (Black)[11.1983 - 08.1985] YM2#..V4D BEIGE,BEIGE |
33504-14050-B8 |
from US $38.20 |
||
|
33506F
|
33506F
33506-27010
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33506-27010 |
— | ||
|
33515F
|
33515F
33515-27010 Seat, Control ShaftCONTROL SHAFT [08.1981 - 08.1985] CM20,KM20,YM2#..4F,5F |
33515-27010 |
US $5.82 |
||
|
33518F
|
33518F
33518-27020 Bush, Control ShaftCONTROL SHAFT [08.1981 - 08.1985] CM20,KM20,YM2#..4F,5F |
33518-27020 |
US $29.85 |
||
|
33526
|
33526
33526-27010
Plate, Shift Lever Support, No.1
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33526-27010 |
— | ||
|
33530A
|
33530A
90502-24001 Spring, Compression (For Shift Lever)COMPRESSION (FOR SHIFT LEVER) [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90502-24001 |
US $3.64 |
||
|
33531
|
33531
33531-27020
Boot, Dust (For Control Shift Lever)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F RH |
33531-27020 |
— | ||
|
33531
|
33531
33531-27030
Boot, Dust (For Control Shift Lever)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F LH |
33531-27030 |
— | ||
|
33534
|
33534
33534-27010
Bellcrank, Selecting
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33534-27010 |
— | ||
|
33534C
|
33534C
33548-30010 Bush (For Selecting Bellcrank No.1)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33548-30010 |
US $6.29 |
||
|
33541
|
33541
33541-27130
Lever, Shift
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33541-27130 |
— | ||
|
33553
|
33553
33553-28010 Seat, Shift Lever Spring[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33553-28010 |
US $11.94 |
||
|
33553A
|
33553A
96151-04200 Ring, Snap (For Shift Lever Spring Sheet)SNAP (FOR SHIFT LEVER SPRING SHEET) [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
96151-04200 |
US $3.35 |
||
|
33555
|
33555
33555-35030
Boot, Shift Lever
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33555-35030 |
— | ||
|
33556F
|
33556F
33556-27010 Seat, Transmission Shift Lever Ball[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33556-27010 |
US $5.10 |
||
|
33641F
|
33641F
33641-27030
Link, Selecting (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33641-27030 |
— | ||
|
33642F
|
33642F
33642-27020
Lever, Gear Selecting, No.2
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33642-27020 |
— | ||
|
33642G
|
33642G
90508-29016 Spring (For Gear Selecting Lever)[10.1982 - 08.1985] CM20,YM2#..RHD..5F LH |
90508-29016 |
US $4.08 |
||
|
33642G
|
33642G
90508-35017 Spring (For Gear Selecting Lever)[10.1982 - 08.1985] CM20,YM2#..RHD..5F RH |
90508-35017 |
US $5.10 |
||
|
33644F
|
33644F
33644-27010
Shaft, Gear Selecting
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33644-27010 |
— | ||
|
33644G
|
33644G
90386-15110 Bush (For Selecting Link)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90386-15110 |
from US $3.04 |
||
|
33644P
|
33644P
90256-06001 Pin (For Gear Selecting Shaft)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
90256-06001 |
US $4.95 |
||
|
33644P
|
33644P
90256-08001
Pin (For Gear Selecting Lever)
[10.1983 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.1 |
90256-08001 |
— | ||
|
33671F
|
33671F
33671-27040
Support, Control Rod, No.1
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33671-27040 |
— | ||
|
33671G
|
33671G
33772-20010 Bush (For Control Rod Support)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33772-20010 |
US $5.92 |
||
|
33709F
|
33709F
33709-27010 Shaft Sub-Assy, Cross, No.1 (For Floor Shift)CROSS, NO.1 (FOR FLOOR SHIFT) [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33709-27010 |
US $90.27 |
||
|
33710
|
33710
33710-27050 Rod Assy, Gear Shifting, No.1GEAR SHIFTING, NO.1 [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33710-27050 |
US $35.67 |
||
|
33773H
|
33773H
90521-17002 Ring, Snap (For Cross Shaft Support Snap)SNAP (FOR CROSS SHAFT SUPPORT SNAP) [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90521-17002 |
US $2.91 |
||
|
33789F
|
33789F
33775-27020
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.1,RH |
33775-27020 |
— | ||
|
33789F
|
33789F
33789-36010
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
33789-36010 |
— | ||
| replacement | |||||
|
33789F
|
33789F
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
33789-36020 |
US $6.46 |
||
|
33789F
|
33789F
33789-36030 Cover, Cross Shaft Dust, No.1 (For Floor Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2,LH |
33789-36030 |
US $10.83 |
||
|
9058014002
|
9058014002
90580-14002
Wire(For Shift Lever Lock Bolt)
|
90580-14002 |
— | ||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.35 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9615103200
|
9615103200
96151-03200 Ring, Snap (For Shift Lever) |
96151-03200 |
US $2.24 |
||
