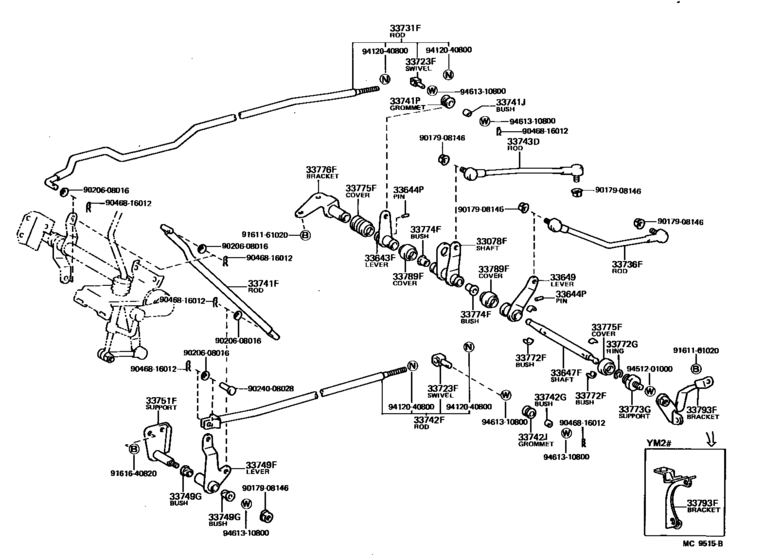

Shift Lever & Retainer ([10.1982 - ] (8210- )RHD..5F) Diagram Toyota LITEACE
- Year
- 1984 - 1985
- Sales region
- General
- Frame
- YM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 02.1984
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Building Condition
- CBU
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33078F
|
33078F
33078-27030
Shaft Sub-Assy, Cross, No.2(For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33078-27030 |
— | ||
|
33643F
|
33643F
33643-27040
Lever, Gear Selecting, No.3
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33643-27040 |
— | ||
|
33644P
|
33644P
90256-06001 Pin (For Gear Selecting Shaft)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
90256-06001 |
US $4.95 |
||
|
33644P
|
33644P
90256-08001
Pin (For Gear Selecting Lever)
[10.1983 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.1 |
90256-08001 |
— | ||
|
33647F
|
33647F
33647-27040
Shaft, Control Link (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33647-27040 |
— | ||
|
33649
|
33649
33649-27030
Lever, Gear Selecting, No.4
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33649-27030 |
— | ||
|
33723F
|
33723F
33723-10020 Swivel, Connecting Rod (For Column Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33723-10020 |
US $9.78 |
||
|
33731F
|
33731F
33720-27070
Rod, Gear Selecting, No.1 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33720-27070 |
— | ||
|
33736F
|
33736F
33790-27090 Rod, Gear Selecting, No.2(For Floor Shift)GEAR SELECTING, NO.2(FOR FLOOR SHIFT) [11.1983 - 08.1985] YM2#..5F |
33790-27090 |
US $42.22 |
||
|
33741F
|
33741F
33741-27050 Rod, Gear Shifting, No.1 (For Floor Shift)GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) [10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33741-27050 |
US $26.94 |
||
|
33741J
|
33741J
90389-08005 Bushing(For Gear Selecting Rod)[08.1981 - 08.1985] CM20,KM20,YM2#..4F,5F |
90389-08005 |
from US $2.24 |
||
|
33741P
|
33741P
90480-17177 Grommet (For Transmission Control Rod)[08.1981 - 08.1985] CM20,KM20,YM2#..4F,5F |
90480-17177 |
from US $2.34 |
||
|
33742F
|
33742F
33730-27040
Rod, Gear Shifting, No.2(For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33730-27040 |
— | ||
|
33742G
|
33742G
90389-08005 Bushing(For Gear Selecting Rod)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90389-08005 |
from US $2.24 |
||
|
33742J
|
33742J
90480-17177 Grommet (For Transmission Control Rod)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90480-17177 |
from US $2.34 |
||
|
33743D
|
33743D
33840-27110 Rod, Gear Shifting, No.3 (For Floor Shift)GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) [11.1983 - 08.1985] YM2#..5F |
33840-27110 |
US $41.20 |
||
|
33749F
|
33749F
33749-27050
Lever, Gear Shift, No.3 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
33749-27050 |
— | ||
|
33749G
|
33749G
90386-15110 Bush (For Selecting Link)[01.1982 - 08.1985] CM20,KM20,YM2#..3FC,4F,5F |
90386-15110 |
from US $3.04 |
||
|
33751F
|
33751F
33705-27012 Support Sub-Assy, Cross ShaftCROSS SHAFT [10.1982 - 08.1985] CM20,KM20,YM2#..4F,5F |
33705-27012 |
US $16.16 |
||
|
33772F
|
33772F
33772-20010 Bush (For Control Rod Support)[10.1982 - 08.1985] CM20,YM2#..5F |
33772-20010 |
US $5.92 |
||
|
33772G
|
33772G
96151-01600
Ring, Snap
[10.1982 - 08.1985] CM20,YM2#..5F |
96151-01600 |
— | ||
|
33773G
|
33773G
33773-20020 Support, Cross Shaft, No.1 (For Colum Shift)[10.1982 - 08.1985] CM20,YM2#..5F |
33773-20020 |
US $9.61 |
||
|
33774F
|
33774F
90386-13007 Bush(For Clutch Pedal)[10.1982 - 08.1985] CM20,YM2#..RHD..5F |
90386-13007 |
from US $2.56 |
||
|
33775F
|
33775F
33775-20020 Cover, Cross Shaft Dust (For Column Shift)[10.1982 - 08.1985] CM20,YM2#..5F LH |
33775-20020 |
US $3.36 |
||
|
33775F
|
33775F
33775-28030 Cover, Cross Shaft Dust (For Column Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F RH |
33775-28030 |
US $6.46 |
||
|
33776F
|
33776F
33776-27030
Bracket, Cross Shaft, No.1 (For Column Shift)
[10.1982 - 08.1985] CM20,YM2#..5F |
33776-27030 |
— | ||
|
33789F
|
33789F
33775-27020
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.1,RH |
33775-27020 |
— | ||
|
33789F
|
33789F
33789-36010
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
33789-36010 |
— | ||
| replacement | |||||
|
33789F
|
33789F
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2 |
33789-36020 |
US $6.46 |
||
|
33789F
|
33789F
33789-36030 Cover, Cross Shaft Dust, No.1 (For Floor Shift)[10.1982 - 08.1985] CM20,YM2#..RHD..5F CROSSSHAFT NO.2,LH |
33789-36030 |
US $10.83 |
||
|
33793F
|
33793F
33793-27010 Bracket, Flexible Hose(For Clutch)[11.1983 - 08.1985] YM2#..5F |
33793-27010 |
US $25.19 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9020608016
|
9020608016
90206-08016 Washer, Wave (For Low Speed Connecting Rod) |
90206-08016 |
US $3.04 |
||
|
9024008028
|
9024008028
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod) |
90240-08028 |
US $2.56 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.92 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
