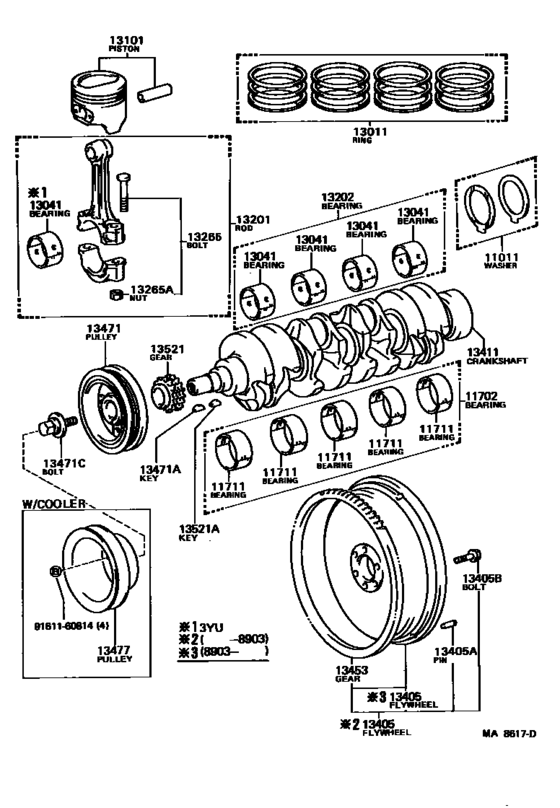

Crankshaft & Piston ([08.1988 - ] (8808- )2Y#,3YU) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- YM30
- grade
- FXV
- body
- WG
- Roof
- MRF
- ENGINE
- 2YU
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- W4D
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 ＳＴＤ |
11011-25010 |
from US $20.67 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｕ／Ｓ ０．２５ |
11704-71020 |
US $206.17 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 1 |
11701-71020-01 |
US $45.43 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 2 |
11701-71020-02 |
US $45.43 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-71021
Ring Set, Piston
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 ＳＴＤ |
13011-71021 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71012
Ring Set, Piston (STD)
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 ＳＴＤ |
13011-71012 |
— | ||
|
13011
|
13011
13013-71021 Ring Set, Piston (0.50)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｏ／Ｓ ０．５０ |
13013-71021 |
US $227.14 |
||
|
13011
|
13011
13014-71021 Ring Set, Piston (0.75)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｏ／Ｓ ０．７５ |
13014-71021 |
US $204.42 |
||
|
13011
|
13011
13015-71021 Ring Set, Piston (1.00)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｏ／Ｓ １．００ |
13015-71021 |
US $135.41 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 6 |
13041-73010-06 |
from US $18.54 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-72010-01 Piston Sub-Assy, W/pin[08.1988 - 01.1992] 2Y#..YM3# ＳＴＤ,MARK1 |
13101-72010-01 |
US $88.82 |
||
|
13101
|
13101
13101-72010-02 Piston Sub-Assy, W/pin[08.1988 - 01.1992] 2Y#..YM3# ＳＴＤ,MARK2 |
13101-72010-02 |
US $88.82 |
||
|
13101
|
13101
13101-72010-03
Piston Sub-Assy, W/pin
[08.1988 - 01.1992] 2Y#..YM3# ＳＴＤ,MARK3 |
13101-72010-03 |
— | ||
|
13101
|
13101
13103-72010 Piston Sub-Assy, W/pin[08.1988 - 01.1992] 2Y#..YM3# Ｏ／Ｓ ０．５０ |
13103-72010 |
US $94.64 |
||
|
13101
|
13101
13104-72010 Piston Sub-Assy, W/pin[08.1988 - 01.1992] 2Y#..YM3# Ｏ／Ｓ ０．７５ |
13104-72010 |
US $94.64 |
||
|
13101
|
13101
13105-72010 Piston Sub-Assy, W/pin[08.1988 - 01.1992] 2Y#..YM3# Ｏ／Ｓ １．００ |
13105-72010 |
US $94.64 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[08.1988 - 01.1992] 2Y#..YM3# |
13201-71011 |
— | ||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｕ／Ｓ ０．２５ |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 Ｕ／Ｓ ０．２５ |
13204-73010 |
from US $90.09 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 |
13265-29025 |
US $12.16 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-72011 Flywheel Sub-Assy[03.1989 - 01.1992] 2YU,3YU..YM30,40..5F |
13405-72011 |
US $347.98 |
||
|
13405
|
13405
13405-79045 Flywheel Sub-Assy[08.1988 - 02.1989] 2YU,3YU..YM30,40..5F |
13405-79045 |
US $355.26 |
||
| replacement | |||||
|
13405
|
13405
13405-72011 Flywheel Sub-Assy[08.1988 - 02.1989] 2YU,3YU..YM30,40..5F |
13405-72011 |
US $347.98 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1988 - 01.1992] 2C#..CM3#,4#..5F 長さ＝２３，外径＝８; 2Y#,3YU..YM3#,40..5F 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[08.1988 - 01.1992] 2Y#,3YU..YM3#,40..5F |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-72010
Crankshaft
[08.1988 - 01.1992] 2Y#..YM3# |
13411-72010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-72900 Crankshaft[08.1988 - 01.1992] 2Y#..YM3# |
13411-72900 |
US $1,320.59 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1988 - 01.1992] 2Y#,3YU..YM3#,40..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-73010 Pulley, Crankshaft[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 |
13408-73010 |
US $230.40 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 -] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
90280-05010 |
from US $1.83 |
||
|
13471C
|
13471C
90105-14013 Bolt(For Crankshaft Pulley Set)[08.1988 - 01.1989] 2YU,3YU..YM30,40 |
90105-14013 |
US $17.04 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[08.1988 - 01.1989] 2YU,3YU..YM30,40 |
90105-14069 |
US $14 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 01.1992] 2Y#,3YU..YM3#,40 |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-28010
Pulley, Crankshaft, No.2
[08.1988 - 01.1992] 2YU..YM30 |
88451-28010 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[08.1988 - 01.1992] 2Y#,3YU..YM3#,40 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1988 -] 4KJ,5K#..KM3#; 2Y#,3YU..YM3#,40 |
90280-05010 |
from US $1.83 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.82 |
||
