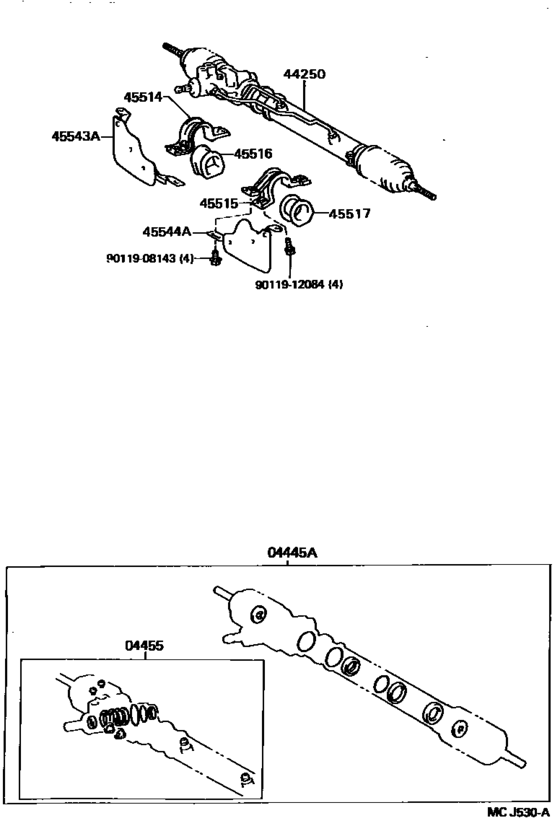

Front Steering Gear & Link ([08.1989 - ] POWER STEERING (8908- )YM30) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- YM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-27020
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[08.1989 - 01.1992] YM30 |
04445-27020 |
— | ||
|
04455
|
04455
04455-27020
Gasket Kit, Power Steering Control Valve Overhole
[08.1989 - 01.1992] YM30 |
04455-27020 |
— | ||
|
44250
|
44250
44250-27050 Gear Assy, Power Steering(For Rack & Pinion)[08.1989 - 01.1992] YM30 |
44250-27050 |
US $1,485.12 |
||
| replacement | |||||
|
44250
|
44250
44250-27052 Gear Assy, Power Steering(For Rack & Pinion)[08.1989 - 01.1992] YM30 |
44250-27052 |
US $1,485.12 |
||
|
45514
|
45514
45514-28020
Bracket, Steering Rack Housing, No.1
[08.1988 - 04.1996] CM36,KM3#,YM3# |
45514-28020 |
— | ||
|
45515
|
45515
45515-28020 Bracket, Steering Rack Housing, No.2[08.1988 - 04.1996] CM36,KM3#,YM3# |
45515-28020 |
US $13.69 |
||
|
45515
|
45515
45515-28030 Bracket, Steering Rack Housing, No.2[08.1989 - 08.1990] YM30 W(POWER STEERING) |
45515-28030 |
US $14.41 |
||
|
45516
|
45516
45516-27010 Grommet, Steering Rack Housing, No.1[08.1988 - 04.1996] CM36,KM3#,YM3# |
45516-27010 |
US $13.98 |
||
|
45517
|
45517
45517-27010
Grommet, Steering Rack Housing, No.2
[08.1988 - 04.1996] CM36,KM3#,YM3# |
45517-27010 |
— | ||
|
45517
|
45517
45517-27020 Grommet, Steering Rack Housing, No.2[08.1989 - 08.1990] YM30 W(POWER STEERING) |
45517-27020 |
US $14.41 |
||
|
45543A
|
45543A
45057-95700 Protector, Steering Rack Boot, Rh[08.1988 - 04.1998] CM36,KM36,YM3#..RHD |
45057-95700 |
US $25.63 |
||
|
45544A
|
45544A
45058-95700 Protector, Steering Rack Boot, Lh[08.1988 - 04.1998] CM36,KM36,YM3#..RHD |
45058-95700 |
US $25.63 |
||
|
9011908143
|
9011908143
90119-08143 New Genuine Part |
90119-08143 |
US $2.88 |
||
|
9011912084
|
9011912084
90119-12084 New Genuine Part |
90119-12084 |
US $4.22 |
||
