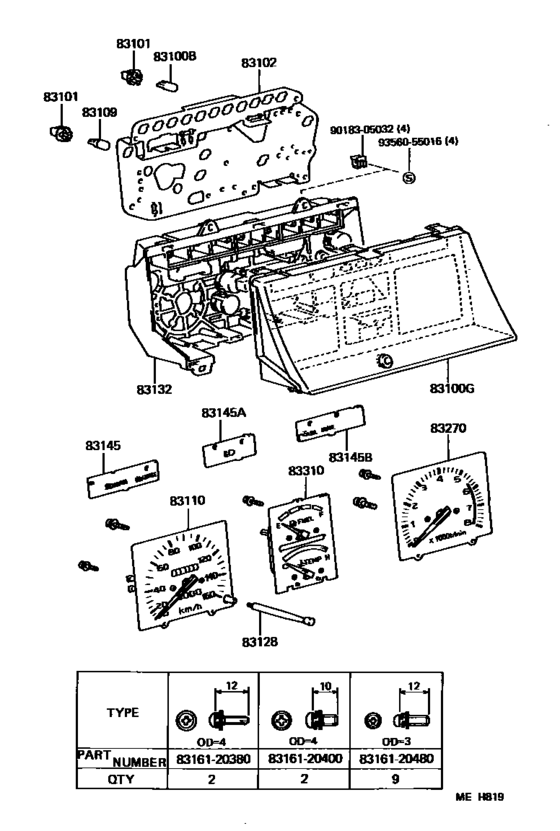

Meter ([08.1988 - 01.1992] (8808-9201)YM30) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- YM30
- grade
- DLX
- body
- WG
- Roof
- MRF
- ENGINE
- 2YC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 05.1991] YM3#..5F..ARL 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 05.1991] YM3#..5F..ARL 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-95708 Glass, Combination Meter[08.1988 - 01.1992] YM30 |
83134-95708 |
US $40.91 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1988 - 05.1991] YM3#..5F..ARL 12V 3.4W |
83101-20040 |
from US $1.58 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[08.1988 - 04.1998] YM35..ARL;CM36,KM36,YM30..RHD 12V 3.4W,W/CAP |
83101-20070 |
US $7.84 |
||
|
83102
|
83102
83247-27080 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [05.1991 - 01.1992] YM30 |
83247-27080 |
US $65.67 |
||
|
83102
|
83102
83247-95721 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1988 - 05.1991] YM30 |
83247-95721 |
US $60.72 |
||
|
83109
|
83109
83109-24030 Bulb, Combination Meter, No.1[08.1988 - 04.1998] YM35..ARL;CM36,KM36,YM30..RHD 12V 3.4W W(GREEN CAP) |
83109-24030 |
from US $3.14 |
||
|
83110
|
83110
83110-95733 Speedometer Assy[08.1988 - 01.1992] YM30 |
83110-95733 |
US $337.79 |
||
|
83128
|
83128
83128-95J00 Knob, Trip Counter[08.1988 - 04.1998] CM36,KM36,YM3#..RHD |
83128-95J00 |
US $5.97 |
||
|
83132
|
83132
83132-95J06 Case, Combination Meter[08.1988 - 01.1992] YM30 |
83132-95J06 |
US $58.82 |
||
|
83145
|
83145
83145-27340 Lens, Meter, No.1METER, NO.1 [05.1991 - 01.1992] YM30..5F |
83145-27340 |
US $12.23 |
||
|
83145
|
83145
83145-95743 Lens, Meter, No.1METER, NO.1 [08.1988 - 05.1991] YM30 |
83145-95743 |
US $11.65 |
||
|
83145A
|
83145A
83145-95726 Lens, Meter, No.2[08.1988 - 01.1992] YM30 |
83145-95726 |
US $8.15 |
||
|
83145B
|
83145B
83145-27380 Lens, Meter, No.3METER, NO.3 [05.1991 - 01.1992] YM30 |
83145-27380 |
US $12.23 |
||
|
83145B
|
83145B
83145-95744
Lens, Meter, No.3
[08.1988 - 05.1991] YM30..5F |
83145-95744 |
— | ||
|
83270
|
83270
83242-95G00 Tachometer Assy, EngineENGINE [08.1988 - 01.1992] YM30 |
83242-95G00 |
US $483.39 |
||
|
83310
|
83310
83243-95712 Gage Assy, Fuel Receiver[08.1988 - 01.1992] YM30 |
83243-95712 |
US $122.30 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
8316120480
|
8316120480
83161-20480 Case, Combination Meter Mirror, No.1 |
83161-20480 |
US $1.46 |
||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.68 |
||
