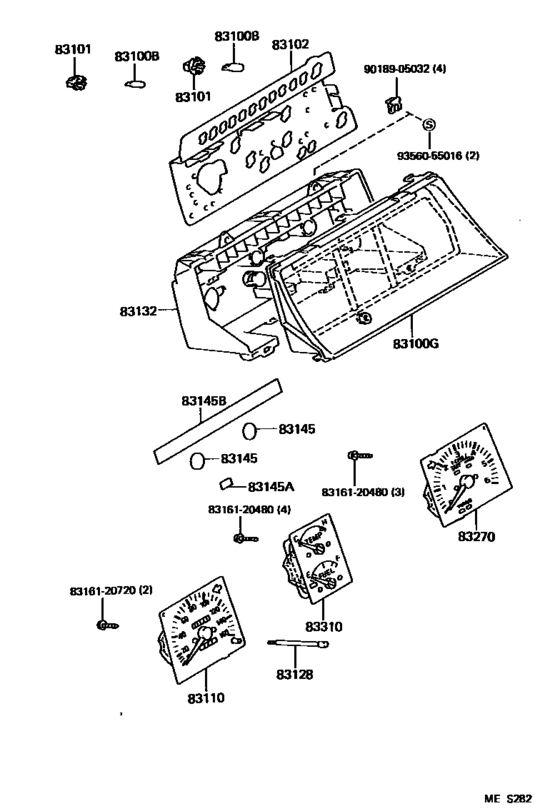

Meter ([08.1991 - ] (9108- )YM31) Diagram Toyota LITEACE
- Year
- 1991 - 1998
- Sales region
- General
- Frame
- YM31
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 08.1991
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1991 - 04.1998] YM31 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1991 - 04.1998] YM31;YM35..5F..ARL 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1991 - 04.1998] YM31;YM35..5F..ARL 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-95G01 Glass, Combination Meter[08.1991 - 04.1998] YM31 |
83134-95G01 |
US $96.10 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1991 - 04.1998] YM31 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[05.1991 - 04.1998] YM31;YM35..5F..ARL 12V 3.4W |
83101-20040 |
from US $1.58 |
||
|
83102
|
83102
83247-27040 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1991 - 04.1998] YM31 |
83247-27040 |
US $65.96 |
||
|
83110
|
83110
83110-27030 Speedometer Assy[08.1991 - 04.1998] YM31 |
83110-27030 |
US $353.81 |
||
|
83128
|
83128
83128-95J00 Knob, Trip Counter[08.1988 - 04.1998] CM36,KM36,YM3#..RHD |
83128-95J00 |
US $5.97 |
||
|
83132
|
83132
83132-95G00 Case, Combination Meter[08.1991 - 04.1998] YM31 |
83132-95G00 |
US $58.82 |
||
|
83145
|
83145
83145-89320
Lens, Meter, No.1
[08.1991 - 04.1998] YM31 |
83145-89320 |
— | ||
|
83145A
|
83145A
83145-95J78 Lens, Meter, No.1[08.1991 - 04.1998] YM31 |
83145-95J78 |
US $6.84 |
||
|
83145B
|
83145B
83145-27080 Lens, Meter, No.3METER, NO.3 [08.1991 - 04.1998] YM31 |
83145-27080 |
US $12.23 |
||
|
83270
|
83270
83242-95G02 Tachometer Assy, Engine[08.1991 - 04.1998] YM31 |
83242-95G02 |
US $486.30 |
||
|
83310
|
83310
83243-95G03 Gage Assy, Fuel Receiver[08.1991 - 04.1998] YM31 |
83243-95G03 |
US $119.39 |
||
|
8316120480
|
8316120480
83161-20480 Case, Combination Meter Mirror, No.1 |
83161-20480 |
US $1.46 |
||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
9018905032
|
9018905032
90189-05032 New Genuine Part |
90189-05032 |
US $2.08 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.68 |
||
