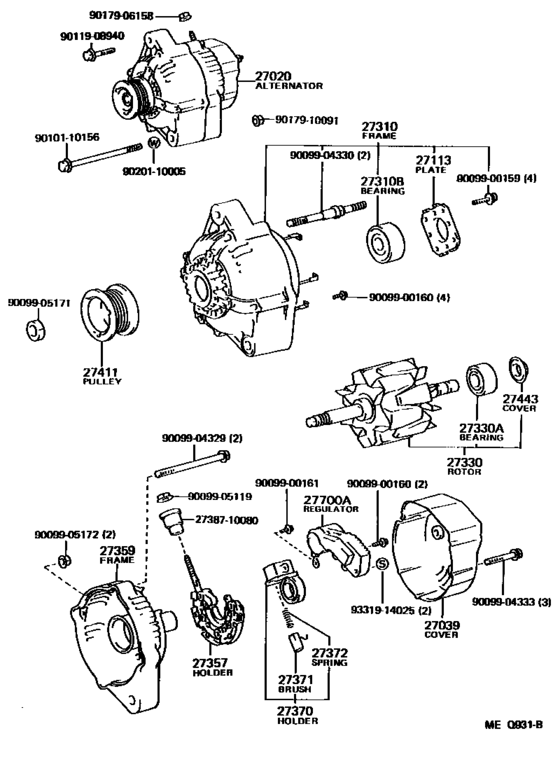

Alternator ([08.1990 - ] 12V 45A (9008- )2YJ) Diagram Toyota LITEACE
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- YM31
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 2YJ
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 08.1990
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- V5D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Floor Shape
- V1
- Fuel Induction
- CBR
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72111 Alternator Assy[08.1990 - 01.1992] 2YJ..YM31 １２Ｖ ４５Ａ |
27060-72111 |
US $1,083.26 |
||
|
27039
|
27039
27039-72150
Cover, Alternator Rear End
[08.1990 - 01.1992] 2YJ..YM31 |
27039-72150 |
— | ||
|
27113
|
27113
27312-72120
Plate, Bearing Retainer, Alternator
[08.1990 - 01.1992] 2YJ..YM31 |
27312-72120 |
— | ||
|
27310
|
27310
27310-72151
Frame Assy, Drive End, Alternator
[08.1990 - 01.1992] 2YJ..YM31 |
27310-72151 |
— | ||
|
27310B
|
27310B
90099-10198 Bearing(For Alternator Drive End Frame)[08.1990 - 01.1992] 2YJ..YM31 |
90099-10198 |
from US $12.93 |
||
| replacement | |||||
|
27310B
|
27310B
90099-10229 Bearing(For Alternator Drive End Frame)[08.1990 - 01.1992] 2YJ..YM31 |
90099-10229 |
US $15.87 |
||
|
27330
|
27330
27330-72150
Rotor Assy, Alternator
[08.1990 - 01.1992] 2YJ..YM31 |
27330-72150 |
— | ||
|
27330A
|
27330A
90099-10154 Bearing(For Alternator Rotor)[08.1990 - 01.1992] 2YJ..YM31 |
90099-10154 |
US $11.53 |
||
|
27357
|
27357
27357-72150
Holder, Alternator, W/rectifier
[08.1990 - 01.1992] 2YJ..YM31 |
27357-72150 |
— | ||
|
27359
|
27359
27359-72150
Frame, Alternator Rectifier End
[08.1990 - 01.1992] 2YJ..YM31 |
27359-72150 |
— | ||
|
27370
|
27370
27370-63021
Holder Assy, Alternator Brush
[08.1988 - 01.1992] 2YU..YM30..4FC;2YJ,3YU..YM31,40;2YU..YM30..5F..FXV; 2YU..YM30..5F..GXL 12V 70A ﾖｳ |
27370-63021 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1988 - 01.1992] 2YU..YM30..4FC;2YJ,3YU..YM31,40;2YU..YM30..5F..FXV; 2YU..YM30..5F..GXL 12V 70A ﾖｳ |
27370-35060 |
from US $17.94 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1989 - 05.1991] 2Y#,3YU..YM3#,40 |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1989 - 05.1991] 2Y#,3YU..YM3#,40 |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1990 - 09.1991] 2YJ..YM31 |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1990 - 09.1991] 2YJ..YM31 |
27372-87501 |
— | ||
|
27411
|
27411
27411-72120
Pulley, Alternator
[08.1990 - 01.1992] 2YJ..YM31 |
27411-72120 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 01.1992] 2C#,2Y#,3YU..CM3#,4#,YM3#,40 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-10080 Regulator Assy, Generator[08.1990 - 01.1992] 2YJ..YM31 |
27700-10080 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-66010 Regulator Assy, Generator[08.1990 - 01.1992] 2YJ..YM31 |
27700-66010 |
US $263.54 |
||
|
2738710080
|
2738710080
27387-10080
Insulator, Terminal
|
27387-10080 |
— | ||
|
9009900159
|
9009900159
90099-00159
New Genuine Part
|
90099-00159 |
— | ||
|
9009900160
|
9009900160
90099-00160
Bearing(For Alternator Rotor)
|
90099-00160 |
— | ||
| replacement | |||||
|
9009900160
|
9009900160
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900161
|
9009900161
90099-00161
New Genuine Part
|
90099-00161 |
— | ||
|
9009904329
|
9009904329
90099-04329
New Genuine Part
|
90099-04329 |
— | ||
|
9009904330
|
9009904330
90099-04330
New Genuine Part
|
90099-04330 |
— | ||
|
9009904333
|
9009904333
90099-04333
New Genuine Part
|
90099-04333 |
— | ||
| replacement | |||||
|
9009904333
|
9009904333
27795-87501
New Genuine Part
|
27795-87501 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.24 |
||
|
9011908940
|
9011908940
90119-08940 New Genuine Part |
90119-08940 |
US $1.89 |
||
| replacement | |||||
|
9011908940
|
9011908940
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910091
|
9017910091
90179-10091 Nut (For Front Lower Ball Joint Setting) |
90179-10091 |
US $2.77 |
||
| replacement | |||||
|
9017910091
|
9017910091
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
from US $2.56 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
